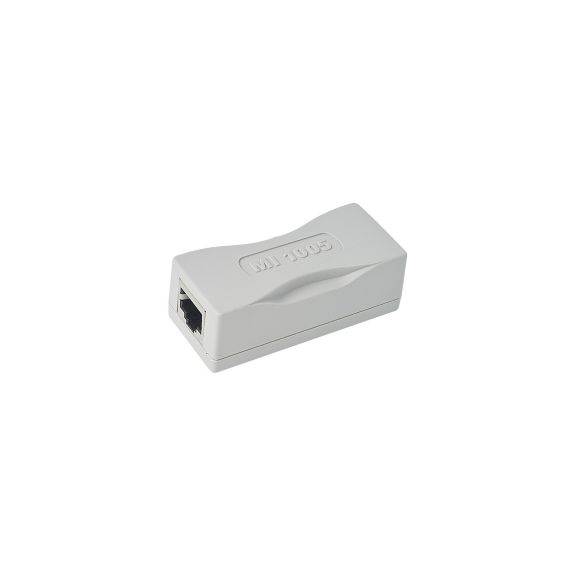

Network isolator EN 60601-1
Network isolator for the galvanic separation of the call system from external systems, in accordance with the standard IEC EN 60601-1.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Part Number: 79823D1
Network isolator for the galvanic separation of the call system from external systems, in accordance with the standard IEC EN 60601-1. Implementation as an integral part of a medical-electrical system, in order to ensure the protection of patients from hazardous leakage currents.
Flexible and simple installation for the isolation of medical devices, areas of a call system and critical applications in the patient environment.
Features
- Return loss min. 10 dB
- Insertion loss max. 1.1 dB
- (connectors 2xRJ45 input/output)
- 5 kV AC proof voltage
- 8.5 kV DC proof voltage
Specifications
Others
- Air humidity
- < 20 %
- Weight (g)
- 50 gram
- Storage Temperature
- 0 to 60°C
- Minimum storage temperature (°C)
- 0°C degree Celsius
- Minimum ambient temperature (°C)
- -10°C degree Celsius
- Features & Benefits
- 5 kV AC Proof Voltage
- 8.5 kV DC Proof Voltage
- Connectors 2 x RJ45 Input/Output
- Insertion Loss Max. 1.1 dB
- Return Loss Min. 10 dB
- Standard IEC EN 60601-1
- Dimensions
- W: 29 mm H: 23 mm L: 65 mm
- Color
- Light Gray
- Ambient Temperature
- -10 to 85°C
- -10 °C ... 85 °C
Others
- Air humidity
- < 20 %
- Weight (g)
- 50 gram
- Storage Temperature
- 0 to 60°C
- Minimum storage temperature (°C)
- 0°C degree Celsius
- Minimum ambient temperature (°C)
- -10°C degree Celsius
- Features & Benefits
- 5 kV AC Proof Voltage
- 8.5 kV DC Proof Voltage
- Connectors 2 x RJ45 Input/Output
- Insertion Loss Max. 1.1 dB
- Return Loss Min. 10 dB
- Standard IEC EN 60601-1
- Dimensions
- W: 29 mm H: 23 mm L: 65 mm
- Color
- Light Gray
- Ambient Temperature
- -10 to 85°C
- -10 °C ... 85 °C
- Air humidity : < 20 %|
- Weight (g) : 50 gram|
- Storage Temperature : 0 to 60°C|
- Minimum storage temperature (°C) : 0°C degree Celsius|
- Minimum ambient temperature (°C) : -10°C degree Celsius|
- Features & Benefits : 5 kV AC Proof Voltage|8.5 kV DC Proof Voltage|Connectors 2 x RJ45 Input/Output|Insertion Loss Max. 1.1 dB|Return Loss Min. 10 dB|Standard IEC EN 60601-1|
- Dimensions : W: 29 mm H: 23 mm L: 65 mm|
- Color : Light Gray|
- Ambient Temperature : -10 to 85°C|-10 °C ... 85 °C|
