    2D Barcode Scan Engines

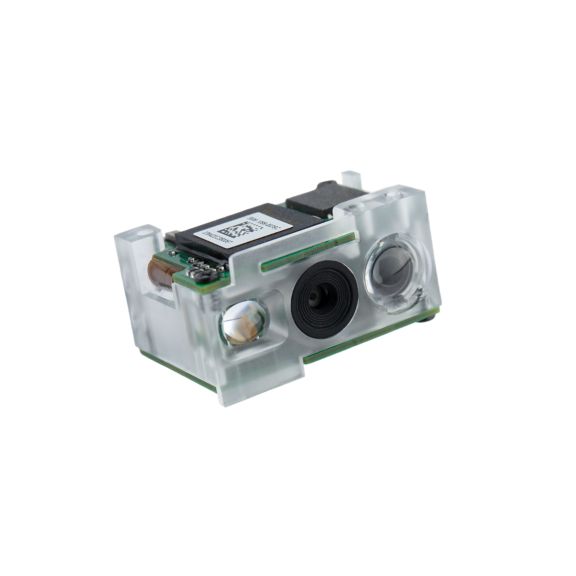

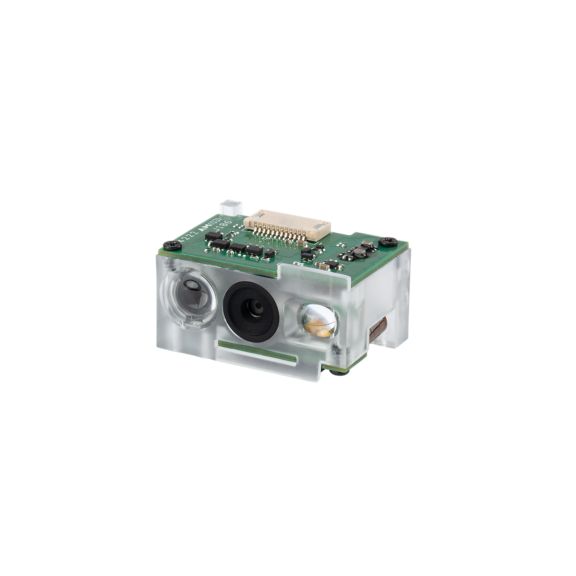

    N5780 Series 2D Decoded Scan Engine

    N5780 2D engines offer one-piece design built on latest Honeywell’s Smart AdaptusTM 7.0 imaging platform and decoding technology

    Overview
    Support Where To Buy Contact us
    Honeywell N5780 2D barcode scan engine features a sleek, one-piece, compact design. The N5780, along with the existing N4680 Series 2D scan engine, forms the Honeywell Smart Adaptus™ 7.0 platform. This pair is a winning combination of Honeywell hardware (one-piece design form-factor) and architecture built on a powerful decoding and imaging processing platform. This enables intercompatibility between the N4680 & N5780, resulting in frictionless integration, rapid development, and design flexibility.

    A successor to the popular N5680 series, the N5780 is packed with powerful performance at a higher 1 Mpx or 1.3 Mpx resolution, a wider field of view on the standard version, and excellent snappiness for advanced performance in a compact, one-piece design. Current and new customers will benefit from higher throughputs and an intuitive end-user scan experience, without compromising design flexibility. The N5780 can perform even under challenging conditions and when faced with damaged barcodes and difficult images.
    Features and Benefits
    • Fully integrated, one-piece design scan engine, so there's no need for an extra decoder board or host decoder programming. The N5780 Series does not require a separate CPU or OS for integration into a device
    • Powerful decoding and imaging processor of the Smart Adaptus™ 7.0 platform and form-factor enables rapid development and reduces time to market
    • 1 Mpx or 1.3 Mpx resolution and global shutter technology enables excellent snappiness and motion tolerance to provide greater productivity and throughput in kiosk applications
    • Lower power consumption enhances application performance and functionality in the application’s workflow
    • Supports beyond barcode reading capabilities such as OCR and microservices that are licensable as add-ons, such as Honeywell EasyDL™
    Specifications

    Features

    • Aimer Type
      • Green cross LED

    Technical Specifications

    • Sensor Type
      • Global shutter
    • Scan Rate
      • 60 FPS
    • Motion Tolerance
      • 6 m/s
    • Illumination
      • Visible Red Led
      • White LED
    • Host Interface
      • TTL
      • USB

    Electrical Specifications

    • Input Voltage
      • TTL Serial: 3.3 Vdc ±5 %
      • USB: 5.0 Vdc ±5 %

    Dimensions & Weight

    • Dimension
      • 0.46 in × 0.83 in × 0.57 in
      • 11,7 mm × 21,15 mm × 14,6 mm

    Others

    • Industry
      • Retail

    Features

    • Aimer Type
      • Green cross LED

    Technical Specifications

    • Sensor Type
      • Global shutter
    • Scan Rate
      • 60 FPS
    • Motion Tolerance
      • 6 m/s
    • Illumination
      • Visible Red Led
      • White LED
    • Host Interface
      • TTL
      • USB

    Electrical Specifications

    • Input Voltage
      • TTL Serial: 3.3 Vdc ±5 %
      • USB: 5.0 Vdc ±5 %

    Dimensions & Weight

    • Dimension
      • 0.46 in × 0.83 in × 0.57 in
      • 11,7 mm × 21,15 mm × 14,6 mm

    Others

    • Industry
      • Retail
    • Aimer Type : Green cross LED
    • Sensor Type : Global shutter
    • Scan Rate : 60 FPS
    • Motion Tolerance : 6 m/s
    • Input Voltage : TTL Serial: 3.3 Vdc ±5 %|USB: 5.0 Vdc ±5 %
    • Industry : Retail
    • Illumination : Visible Red Led|White LED
    • Host Interface : TTL|USB
    • Dimension : 0.46 in × 0.83 in × 0.57 in|11,7 mm × 21,15 mm × 14,6 mm
