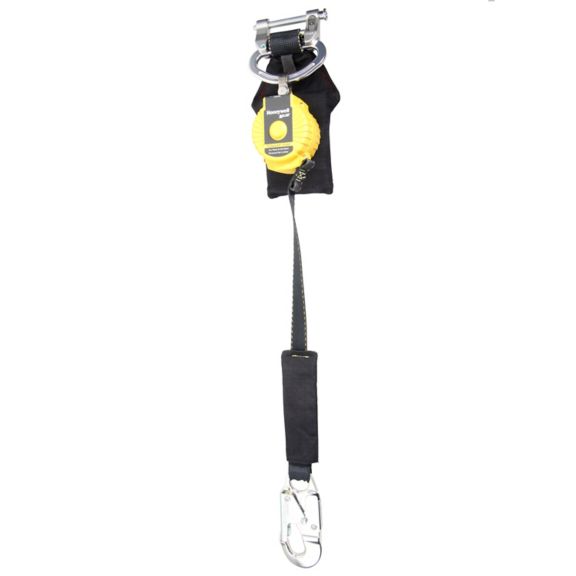

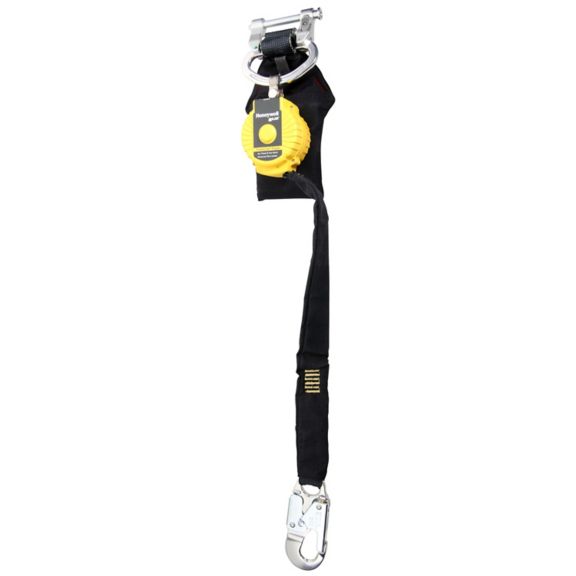

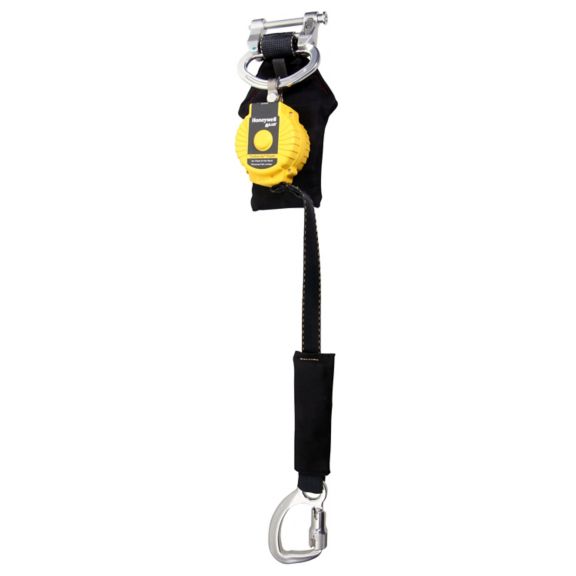

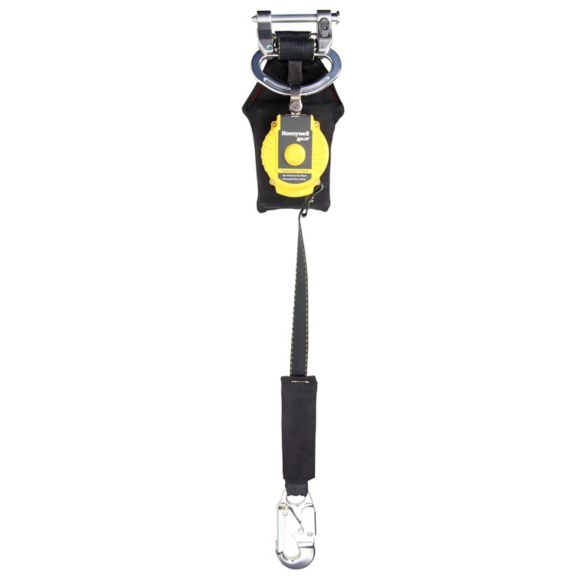

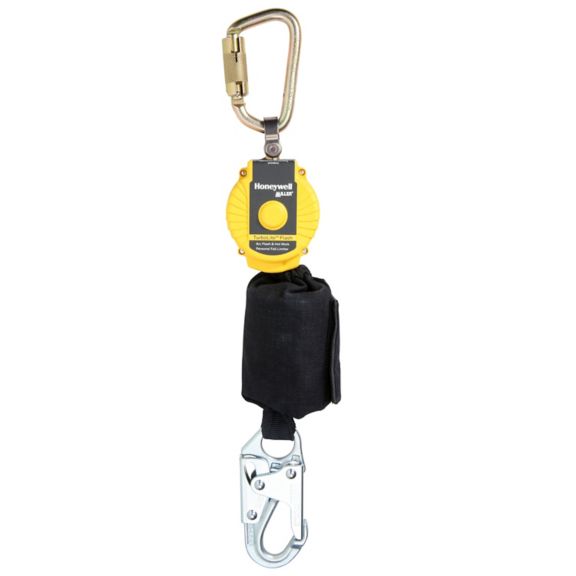

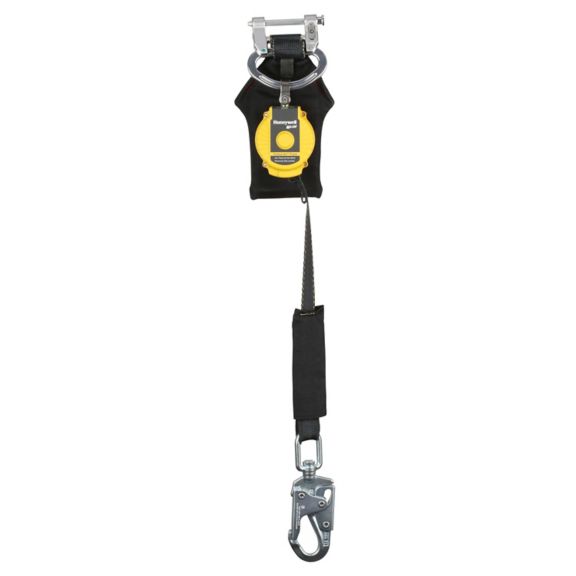

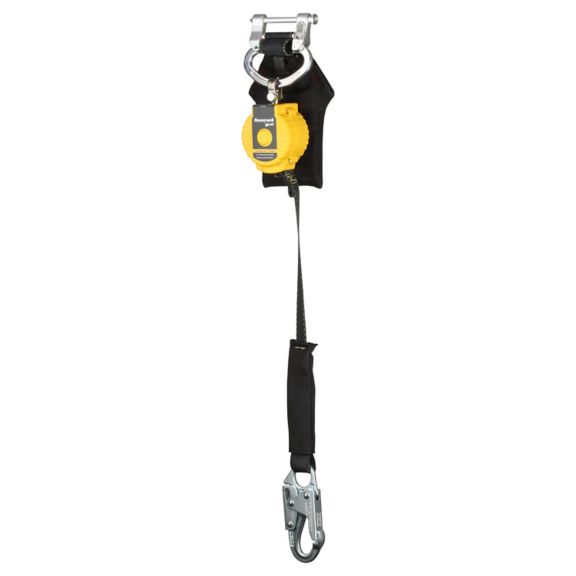

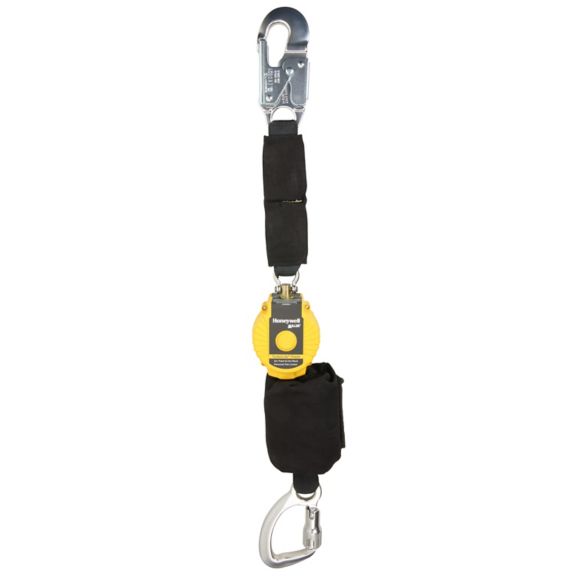

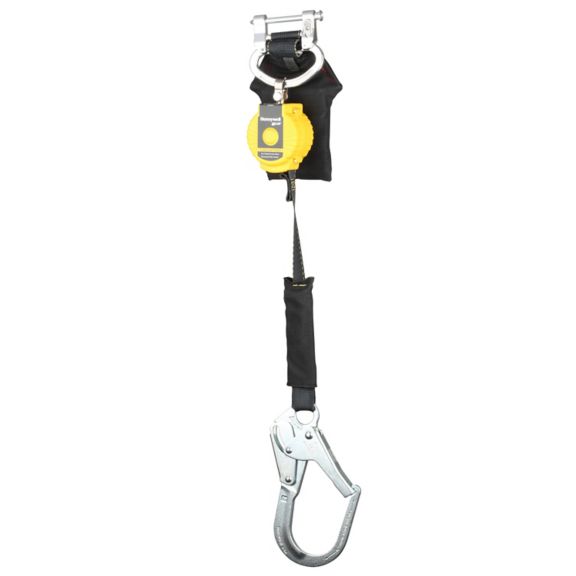

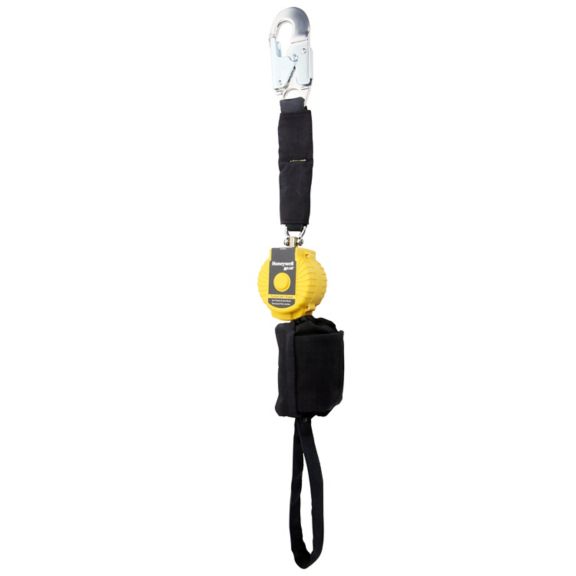

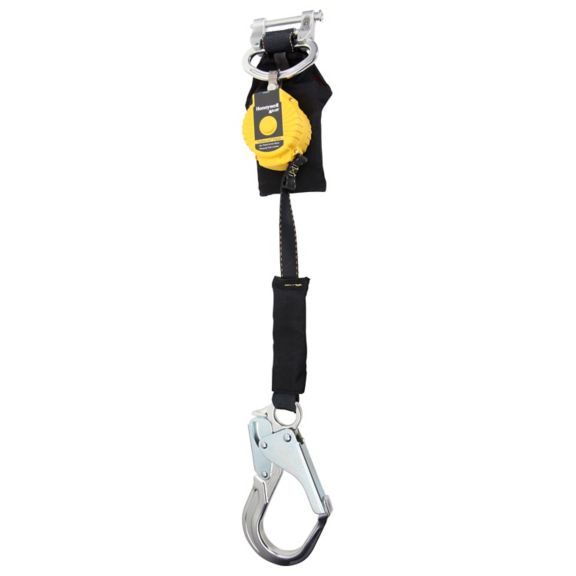

Miller® TurboLite™ Flash Personal Fall Limiter
The Miller® TurboLite™ Flash Personal Fall Limiter is designed for use in Arc Flash and Hot Works applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
THE MILLER TURBOLITE FLASH SERIES
Designed specifically for those who work at height and are exposed to arc flash hazards: welding: or who are working near high heat areas: the Miller TurboLite Flash Personal Fall Limiter offers versatility: reliability: and maximum safety.

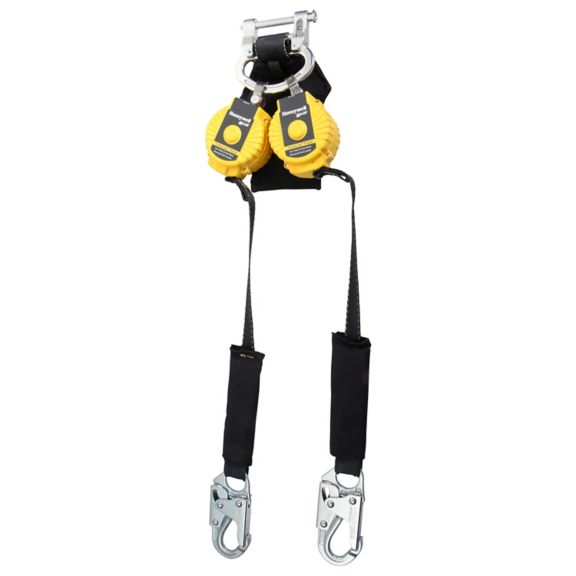

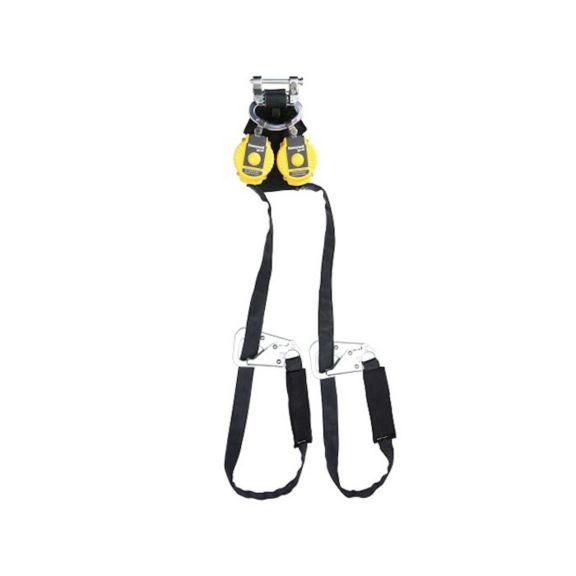

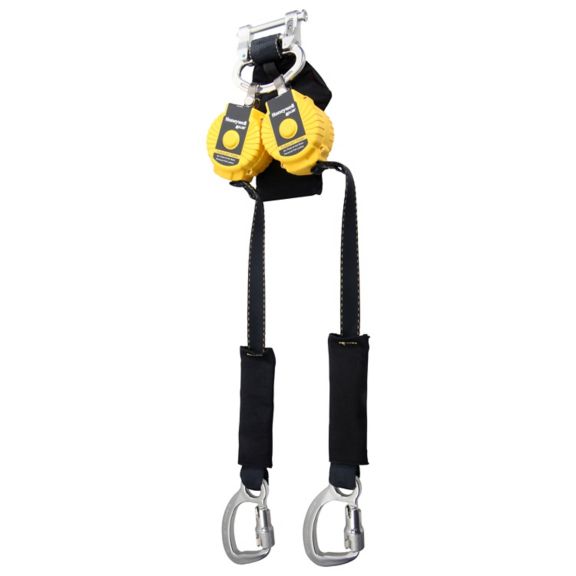

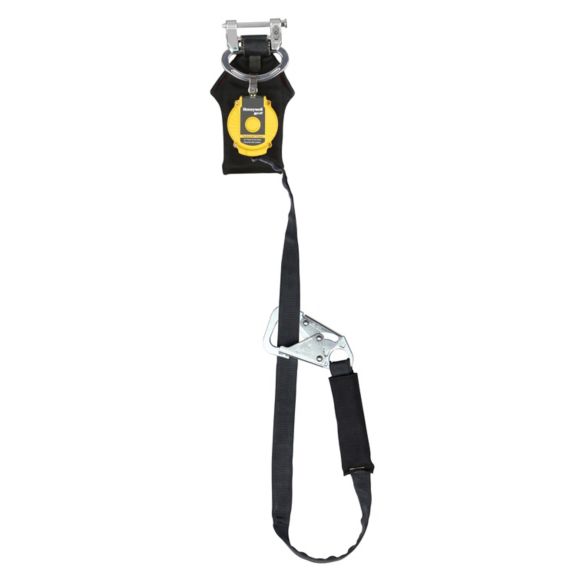

Engineered to deliver the assurance you expect from Miller: our new TurboLite Flash Personal Fall Limiters are available in a wide range of lengths and configurations – including single or twin versions: tie- back options: and even products specifically designed for users working in bucket trucks.
Product Specs
Features
Designed specifically for those who work at height and are exposed to arc flash hazards: welding: or who are working near high heat areas: the Miller TurboLite Flash Personal Fall Limiter offers versatility: reliability: and maximum safety.
Engineered to deliver the assurance you expect from Miller: our new TurboLite Flash Personal Fall Limiters are available in a wide range of lengths and configurations – including single or twin versions: tie- back options: and even products specifically designed for users working in bucket trucks.
Product Specs
Features
- An all-in-one solution for Arc flash and hot work applications:
- High impact housing with integral shock absorber
- Comes in various lengths: configurations: and connector options
- Rated for up to a 420lb. (189 kg) weight capacity for all connections down to foot level.
- Meets the most stringent safety standards: including ANSI Z359.14 and ASTM F887.
Specifications
Others
- Application
- Arc Flash/Hot Work
- Unit Connector Breaking Strength
- 5,000 pound-force
- 5-000 pound-force
- Standards
- OSHA 1926.502, OSHA 1910.140, ANSI A10.32, ANSI Z359.14, ASTM F877
- OSHA 1926.502- OSHA 1910.140- ANSI A10.32- ANSI Z359.14- ASTM F877
- Shock Absorber Type
- Yes
- Self-Retracting Device Type
- Self-Retracting Lifeline
- Sealed Technology
- No
- Rescue-Retrieval Capability
- No
- Repairable
- No
- RFID
- Yes
- Product Family
- Miller
- Product Depth
- 2.42
- 2.42 inch
- 2.42
- Operating temperature Range
- (-40) to 130 degree Fahrenheit
- Maximum Weight Capacity
- 191
- 191 kilogram
- 191 US Pound
- Load Indicator
- Yes
- Lifeline Material
- Kevlar®/Nomex®
- Lifeline Diameter
- 1
- 1 inch
- 1
- Lifeline Configuration
- Single
- Internal Components Material
- Aluminum/Stainless Steel
- Features & Benefits
- Increased Safety & Peace of Mind; Outstanding Versatility; Reliability; Easy to Identify; Great Mobility; Efficient Tracking
- Edge Rated
- No
- Connector Gate Strength
- 3,600 US Pound
- 3,600 kilogram
- 3600
- Connecting Component Swivel
- Yes
- Breaking Strength
- 3,000
- 3,000 US Pound
- 3000
- Brake Material
- Stainless Steel
Others
- Application
- Arc Flash/Hot Work
- Unit Connector Breaking Strength
- 5,000 pound-force
- 5-000 pound-force
- Standards
- OSHA 1926.502, OSHA 1910.140, ANSI A10.32, ANSI Z359.14, ASTM F877
- OSHA 1926.502- OSHA 1910.140- ANSI A10.32- ANSI Z359.14- ASTM F877
- Shock Absorber Type
- Yes
- Self-Retracting Device Type
- Self-Retracting Lifeline
- Sealed Technology
- No
- Rescue-Retrieval Capability
- No
- Repairable
- No
- RFID
- Yes
- Product Family
- Miller
- Product Depth
- 2.42
- 2.42 inch
- 2.42
- Operating temperature Range
- (-40) to 130 degree Fahrenheit
- Maximum Weight Capacity
- 191
- 191 kilogram
- 191 US Pound
- Load Indicator
- Yes
- Lifeline Material
- Kevlar®/Nomex®
- Lifeline Diameter
- 1
- 1 inch
- 1
- Lifeline Configuration
- Single
- Internal Components Material
- Aluminum/Stainless Steel
- Features & Benefits
- Increased Safety & Peace of Mind; Outstanding Versatility; Reliability; Easy to Identify; Great Mobility; Efficient Tracking
- Edge Rated
- No
- Connector Gate Strength
- 3,600 US Pound
- 3,600 kilogram
- 3600
- Connecting Component Swivel
- Yes
- Breaking Strength
- 3,000
- 3,000 US Pound
- 3000
- Brake Material
- Stainless Steel
- Application : Arc Flash/Hot Work
- Unit Connector Breaking Strength : 5,000 pound-force|5-000 pound-force
- Standards : OSHA 1926.502, OSHA 1910.140, ANSI A10.32, ANSI Z359.14, ASTM F877|OSHA 1926.502- OSHA 1910.140- ANSI A10.32- ANSI Z359.14- ASTM F877
- Shock Absorber Type : Yes
- Self-Retracting Device Type : Self-Retracting Lifeline
- Sealed Technology : No
- Rescue-Retrieval Capability : No
- Repairable : No
- RFID : Yes
- Product Family : Miller
- Product Depth : 2.42|2.42 inch|2.42
- Operating temperature Range : (-40) to 130 degree Fahrenheit
- Maximum Weight Capacity : 191|191 kilogram|191 US Pound
- Load Indicator : Yes
- Lifeline Material : Kevlar®/Nomex®
- Lifeline Diameter : 1|1 inch|1
- Lifeline Configuration : Single
- Internal Components Material : Aluminum/Stainless Steel
- Features & Benefits : Increased Safety & Peace of Mind; Outstanding Versatility; Reliability; Easy to Identify; Great Mobility; Efficient Tracking
- Edge Rated : No
- Connector Gate Strength : 3,600 US Pound|3,600 kilogram|3600
- Connecting Component Swivel : Yes
- Breaking Strength : 3,000|3,000 US Pound|3000
- Brake Material : Stainless Steel
