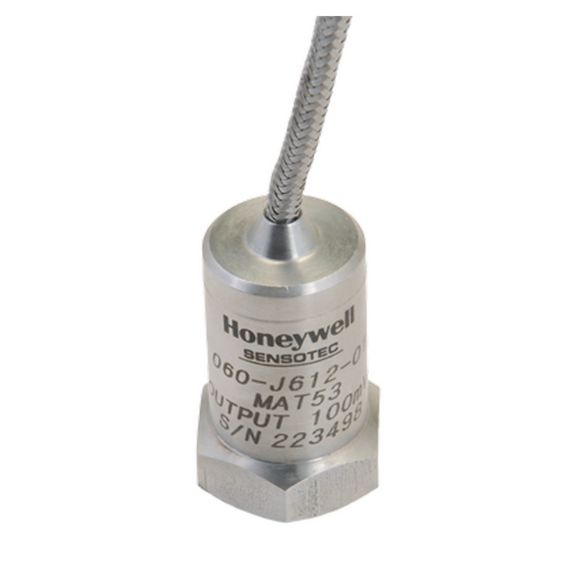

Temperature & Vibration - Model MAT53 Series
General purpose accelerometers. 2 Hz to 10 kHz. Temperature (in current) & vibration (in mV) outputs.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
The Model MAT53 series amplified piezoelectric accelerometers combined with integrated temperature sensors are designed to be used in industrial test and automation environments: including laboratory test, modal studies and testing cells where there is a need to simultaneously measure temperature and velocity vibration. The constant current low output impedance for the velocity vibration combined with the current output for the temperature output provide the ability to drive high load capacitance allows long runs of low cost cable without degradation of data. The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. Sensors are constructed of non-magnetic stainless steel with very low magnetic field susceptibility and a sealed data, to provide highly accurate and reliable data. Available in a number of configurations and options that includes connector or integral stainless steel armored cable , and different dynamic ranges to suit expected temperature and vibration levels.
Features
- Temperature and vibration dual output
- 2 Hz to 10 kHz usable frequency range
- IEPE output
- Low base strain sensitivity
- Current O/P for temperature
- Stainless steel overbraided PTFE cable
- Stainless steel armored cable or three-pin connector electrical options
Others
- Amplitude Linearity
- Better than 1 % linearity
- Weight range
- 0,11 kg [3.85 oz]
- UNSPSC Commodity
- Accelerometers
- UNSPSC Code
- 41113639
- Transverse Sensitivity
- Less than 5 %
- Temperature Sensitivity
- 10 mV/°F
- Temperature (Operating)
- -12 °C to 138 °C [-10 °F to 280 °F]
- Supply Voltage
- 18 V to 30 V
- Series Name
- MAT53
- Sensitivity
- 100 mV/G ±10 %
- Sealing
- IP67/NEMA 4
- Range
- 100 mV/G
- Product Dimensions
- 24,892 mm A/F x 38,1 mm L [0.98 in A/F x 1.5 in L]
- Product
- 060-J612-01
- Order Code
- AG931GH,17B
- Mounting Torque
- 8 Nm [6 ft-lb]
- Mounted Base Resonance
- 18 Hz
- Mating Connector
- MH008
- Material
- Stainless steel
- Isolation
- Base isolation
- Input
- Constant Current
- Frequency Range
- 2 Hz to 5 kHz ±5 %
- Electrical Termination
- 5 m Integral 4 core stainless steel overbraided PVC cable
- Electrical Noise
- 0.3 mG max.
- Dynamic Range
- ±80 G
- Connector
- Top exit
- Cable Length
- 4,9 m [16 ft]
- Cable
- Stainless steel overbraided PTFE
- Bias Voltage
- 12 Vdc
Others
- Amplitude Linearity
- Better than 1 % linearity
- Weight range
- 0,11 kg [3.85 oz]
- UNSPSC Commodity
- Accelerometers
- UNSPSC Code
- 41113639
- Transverse Sensitivity
- Less than 5 %
- Temperature Sensitivity
- 10 mV/°F
- Temperature (Operating)
- -12 °C to 138 °C [-10 °F to 280 °F]
- Supply Voltage
- 18 V to 30 V
- Series Name
- MAT53
- Sensitivity
- 100 mV/G ±10 %
- Sealing
- IP67/NEMA 4
- Range
- 100 mV/G
- Product Dimensions
- 24,892 mm A/F x 38,1 mm L [0.98 in A/F x 1.5 in L]
- Product
- 060-J612-01
- Order Code
- AG931GH,17B
- Mounting Torque
- 8 Nm [6 ft-lb]
- Mounted Base Resonance
- 18 Hz
- Mating Connector
- MH008
- Material
- Stainless steel
- Isolation
- Base isolation
- Input
- Constant Current
- Frequency Range
- 2 Hz to 5 kHz ±5 %
- Electrical Termination
- 5 m Integral 4 core stainless steel overbraided PVC cable
- Electrical Noise
- 0.3 mG max.
- Dynamic Range
- ±80 G
- Connector
- Top exit
- Cable Length
- 4,9 m [16 ft]
- Cable
- Stainless steel overbraided PTFE
- Bias Voltage
- 12 Vdc
- Amplitude Linearity : Better than 1 % linearity
- Weight range : 0,11 kg [3.85 oz]
- UNSPSC Commodity : Accelerometers
- UNSPSC Code : 41113639
- Transverse Sensitivity : Less than 5 %
- Temperature Sensitivity : 10 mV/°F
- Temperature (Operating) : -12 °C to 138 °C [-10 °F to 280 °F]
- Supply Voltage : 18 V to 30 V
- Series Name : MAT53
- Sensitivity : 100 mV/G ±10 %
- Sealing : IP67/NEMA 4
- Range : 100 mV/G
- Product Dimensions : 24,892 mm A/F x 38,1 mm L [0.98 in A/F x 1.5 in L]
- Product : 060-J612-01
- Order Code : AG931GH,17B
- Mounting Torque : 8 Nm [6 ft-lb]
- Mounted Base Resonance : 18 Hz
- Mating Connector : MH008
- Material : Stainless steel
- Isolation : Base isolation
- Input : Constant Current
- Frequency Range : 2 Hz to 5 kHz ±5 %
- Electrical Termination : 5 m Integral 4 core stainless steel overbraided PVC cable
- Electrical Noise : 0.3 mG max.
- Dynamic Range : ±80 G
- Connector : Top exit
- Cable Length : 4,9 m [16 ft]
- Cable : Stainless steel overbraided PTFE
- Bias Voltage : 12 Vdc
