basic switches
ZW Series

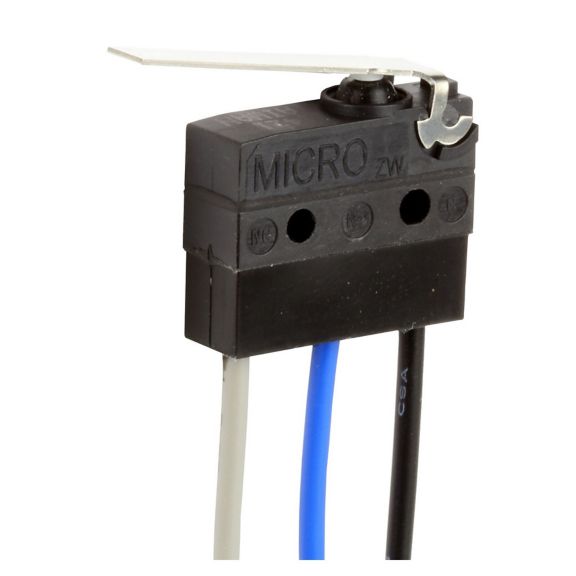

Sealed plunger. Up 5 A (UL, cUL), 6 A (ENEC, CQC). Variety of configurations. 9,5 mm centers side mount. IP67 prewired termination.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The ZW Series is rated for controlling electrical loads ranging from logic level/computer-based circuits to power-duty switching (up to 6 amps and up to 250 Vac). Switches supplied with integral wire leads are sealed to IP67 and are suitable for applications where a switch assembly would be exposed to liquids or particulate contaminates in the environment from indoor or outdoor use.
