Particulate Matter Sensors

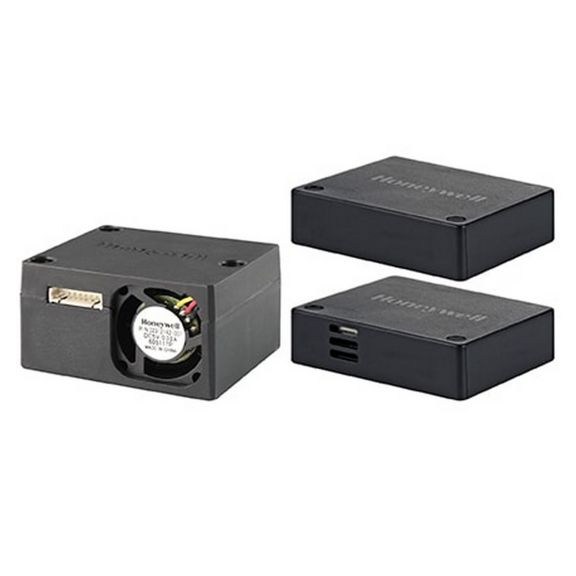

HPM Series
Laser-based light scattering particle sensing. PM1.0, PM2.5, PM4.0, PM10. <6 s response. UART. Standard and compact versions.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Honeywell HPM Series Particulate Matter Sensor is a laser-based sensor which detects and counts particles using light scattering. The detection concentration range is 0 µg/m3 to 1,000 µg/m3. A laser light source illuminates a particle as it is pulled through the detection chamber. As particles pass through the laser beam, the light reflects off the particles and is recorded on the photo or light detector. The light is then analyzed and converted to an electrical signal to calculate particle concentration. The Honeywell particle sensor provides information on the particle concentration for given particle concentration range.
Value to Customers
- Enables the ability to more accurately and cost-effectivelymonitor or control environmental particulate
- Industry-leading long life of 10 years of continuous use
- Proven EMC performance enables the ability to perform more accurately in a variety of tough industrialenvironments
- Faster response time of <6 s allows the HPM Series to respond to environmental conditions in real time
- Enhanced reliability allows for use in harsh environments
Differentiation
- Long life of 10 years offers a more stable operation for continuous usage
- Proven EMC performance, based on IEC61000 stable operation, ±15% accuracy (PM2.5)
Features
- Laser-based light scattering particle sensing
- Concentration range: 0 µg/m3 to 1,000 µg/m3
- Fully calibrated
- EMC: Heavy industrial level IEC61000
- Response time: <6 s
- Supply current: 80 mA max.
- Output signal: UART (Universal Asynchronous Receiver/Transmitter)
- PM2.5, PM10 output (standard): PM1.0, PM2.5, PM4.0, PM10 output (compact)
- RoHS compliant
- REACH compliant
Potential Applications
- HVAC (commercial and residential)
- Indoor air quality monitors
- Handheld air quality monitors
- Air purifiers (commercial and residential)
- Automotive cabin air purifiers
Specifications
Others
- Accuracy
- ±15% (PM2.5) at 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Supply Voltage
- 5 V ±0.2 V
- Operating Principle
- Laser scattering
- Package Type
- Compact
- Standard
- Detection
- PM1.0, PM2.5, PM4.0, PM10
- PM2.5, PM10
- Series Name
- HPM Series
- Operating Time
- 10 years
- Storage Temperature
- -30°C to 65°C [-22°F to 149°F]
- -40°C to 85°C [-40°F to 185°F]
- Concentration Range
- 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Output Protocol
- UART
- Output Data
- PM1.0 in µg/m<sup>3</sup>, PM2.5 in µg/m<sup>3</sup>, PM4.0 in µg/m<sup>3</sup>, PM10 in µg/m<sup>3</sup>
- PM2.5 in μg/m<sup>3</sup>, PM10 in μg/m<sup>3</sup>
Others
- Accuracy
- ±15% (PM2.5) at 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Supply Voltage
- 5 V ±0.2 V
- Operating Principle
- Laser scattering
- Package Type
- Compact
- Standard
- Detection
- PM1.0, PM2.5, PM4.0, PM10
- PM2.5, PM10
- Series Name
- HPM Series
- Operating Time
- 10 years
- Storage Temperature
- -30°C to 65°C [-22°F to 149°F]
- -40°C to 85°C [-40°F to 185°F]
- Concentration Range
- 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Output Protocol
- UART
- Output Data
- PM1.0 in µg/m<sup>3</sup>, PM2.5 in µg/m<sup>3</sup>, PM4.0 in µg/m<sup>3</sup>, PM10 in µg/m<sup>3</sup>
- PM2.5 in μg/m<sup>3</sup>, PM10 in μg/m<sup>3</sup>
- Accuracy : ±15% (PM2.5) at 0 μg/m3 to 1,000 μg/m3
- Supply Voltage : 5 V ±0.2 V
- Operating Principle : Laser scattering
- Package Type : Compact|Standard
- Detection : PM1.0, PM2.5, PM4.0, PM10|PM2.5, PM10
- Series Name : HPM Series
- Operating Time : 10 years
- Storage Temperature : -30°C to 65°C [-22°F to 149°F]|-40°C to 85°C [-40°F to 185°F]
- Concentration Range : 0 μg/m3 to 1,000 μg/m3
- Output Protocol : UART
- Output Data : PM1.0 in µg/m3, PM2.5 in µg/m3, PM4.0 in µg/m3, PM10 in µg/m3|PM2.5 in μg/m3, PM10 in μg/m3
Data Sheet
Name
Description
File Size
Date
Size
Brochure
Name
Description
File Size
Date
Size
Controlling the Future with Technology
application/pdf 11.8 MB
3/7/2023
11.8 MB
Application Note
Name
Description
File Size
Date
Size
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
Sales Sheet
Name
Description
File Size
Date
Size
HPM Series Particulate Matter Sensors Sell Sheet
application/pdf 2.05 MB
7/15/2021
2.05 MB
Product Photo
Name
Description
File Size
Date
Size
Others
Name
Description
File Size
Date
Size
HPM Series Particle Sensors FAQ
application/pdf 208.68 KB
7/15/2021
208.68 KB
Name
Description
File Size
Date
Size
Controlling the Future with Technology
application/pdf 11.8 MB
3/7/2023
11.8 MB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
HPM Series Particulate Matter Sensors Sell Sheet
application/pdf 2.05 MB
7/15/2021
2.05 MB
HPM Series Particle Sensors FAQ
application/pdf 208.68 KB
7/15/2021
208.68 KB
Name
Description
File Size
Date
Size
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
HPM Series Particulate Matter Sensors Sell Sheet
2.05 MB
7/15/2021
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
HAQSPA
NEXT GEN IAQ ,SIX IN ONE
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HAQSPA
NEXT GEN IAQ ,SIX IN ONE
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HAQSPA_R
NEXT GEN IAQ _SIX IN ONE E2R
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HAQSPA_R
NEXT GEN IAQ _SIX IN ONE E2R
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-001
SAME SIDE COMPACT PM2.5 sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-001
SAME SIDE COMPACT PM2.5 sensor
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-002
OPPOSITE COMPACT PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-002
OPPOSITE COMPACT PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-003
HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on same side
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-003
HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on same side
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-004
HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on opposite sides
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115C0-004
HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on opposite sides
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115S0-XXX
PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA115S0-XXX
PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA215S0-XXX
PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMA215S0-XXX
PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMD115S0-001
PM10 PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
HPMD115S0-001
PM10 PARTICLE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-hpm-series-group-ciid-165892
