    Force Sensors

    FSG Series

    0 N to 20 N force ranges. Unamplified, uncompensated. 360 mV typ. output. Extremely low deflection.

    Overview

    The FSG Series Force Sensor provides precise, reliable force sensing performance in a compact commercial-grade package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined silicon sensing element. The low power, unamplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over the 5 N, 10 N, 15 N and 20 N force ranges.

    Force sensors operate on the principle that the resistance of silicon-implanted piezoresistors will increase when the resistors flex under any applied force. The sensor concentrates force from the application, through the stainless steel plunger, directly to the silicon-sensing element. The amount of resistance changes in proportion to the amount of force being applied. This change in circuit resistance results in a corresponding mV output level change.

    The sensor package design incorporates patented modular construction. The use of innovative elastomeric technology and engineered molded plastics results in overforce capacities of up to three times the rated force.

    The stainless steel plunger provides excellent mechanical stability and is adaptable to a variety of applications. Various electric interconnects can accept prewired connectors, printed circuit board mounting, and surface mounting. The unique sensor design also provides a variety of mounting options that include mounting brackets.

    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    FSG Series Force Sensors
    application/pdf 383.55 KB
    7/15/2021
    383.55 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Airflow, Force and Pressure Sensor Product Range Guide
    application/pdf 4.24 MB
    7/25/2024
    4.24 MB
    Sensor Evaluation Board (SEB) User Instructions
    application/pdf 1.53 MB
    7/25/2024
    1.53 MB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    FSG Series Force Sensors
    application/pdf 335.84 KB
    7/15/2021
    335.84 KB
    Brochure
    Name
    Description
    File Size
    Date
    Size
    Sensors and Switches for Medical Applications
    application/pdf 10.15 MB
    4/25/2023
    10.15 MB
    Application Note
    Name
    Description
    File Size
    Date
    Size
    Sensors and Switches: Solutions for Medical Applications
    application/pdf 1.34 MB
    5/18/2023
    1.34 MB
    Solutions for Infusion Pumps
    application/pdf 2.35 MB
    6/12/2023
    2.35 MB
    Defence Ground Vehicles -
    application/pdf 872.87 KB
    6/14/2023
    872.87 KB
    Product Photo
    Name
    Description
    File Size
    Date
    Size

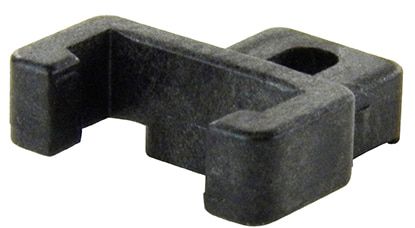

    PC15132 Bracket lowres photo
