Standalone Call Systems

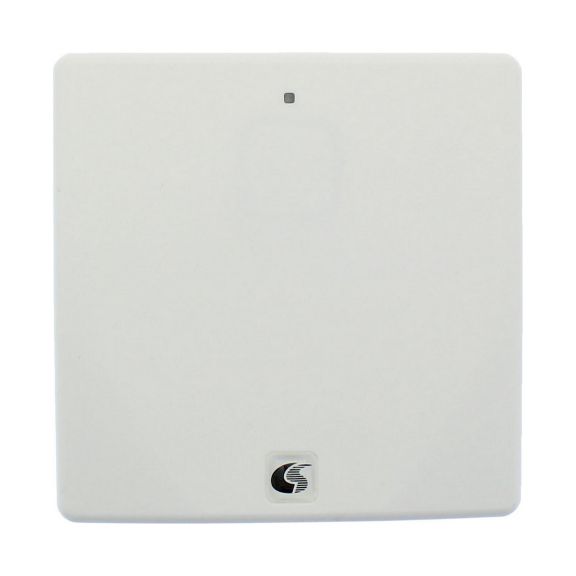

A-RFID POSITIONING BEACON
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Technical Specifications
- Range
- Coverage area: 1 to 4 m (depending on the type of antenna used)
- Technology
- Configuration by switches and jumpers, Up to 65,000 combinations of position IDs
- Input contact to manage antenna activation to avoid interference and save energy
- Interface to communicate its status to radio receivers
- Output relay for status notification
- Synchronization input to avoid any interference with other terminals
- Tamper contact that triggers an alert if the A-POS is removed
- Wireless monitoring: equipped with a wireless radio
Electrical Specifications
- Power Consumption
- 300 mA @24V DC
Dimensions & Weight
- Weight (g)
- 85
- Dimensions
- L: 86 mm H: 86 mm D: 26 mm
Features
- Mounting
- Wall
- Includes
- A-POS Terminal and Mounting Bracket
Technical Specifications
- Range
- Coverage area: 1 to 4 m (depending on the type of antenna used)
- Technology
- Configuration by switches and jumpers, Up to 65,000 combinations of position IDs
- Input contact to manage antenna activation to avoid interference and save energy
- Interface to communicate its status to radio receivers
- Output relay for status notification
- Synchronization input to avoid any interference with other terminals
- Tamper contact that triggers an alert if the A-POS is removed
- Wireless monitoring: equipped with a wireless radio
Electrical Specifications
- Power Consumption
- 300 mA @24V DC
Dimensions & Weight
- Weight (g)
- 85
- Dimensions
- L: 86 mm H: 86 mm D: 26 mm
Features
- Mounting
- Wall
- Includes
- A-POS Terminal and Mounting Bracket
- Range : Coverage area: 1 to 4 m (depending on the type of antenna used)
- Power Consumption : 300 mA @24V DC
- Weight (g) : 85
- Technology : Configuration by switches and jumpers, Up to 65,000 combinations of position IDs|Input contact to manage antenna activation to avoid interference and save energy|Interface to communicate its status to radio receivers|Output relay for status notification|Synchronization input to avoid any interference with other terminals|Tamper contact that triggers an alert if the A-POS is removed|Wireless monitoring: equipped with a wireless radio
- Dimensions : L: 86 mm H: 86 mm D: 26 mm
- Mounting : Wall
- Includes : A-POS Terminal and Mounting Bracket
