Patient Room Components

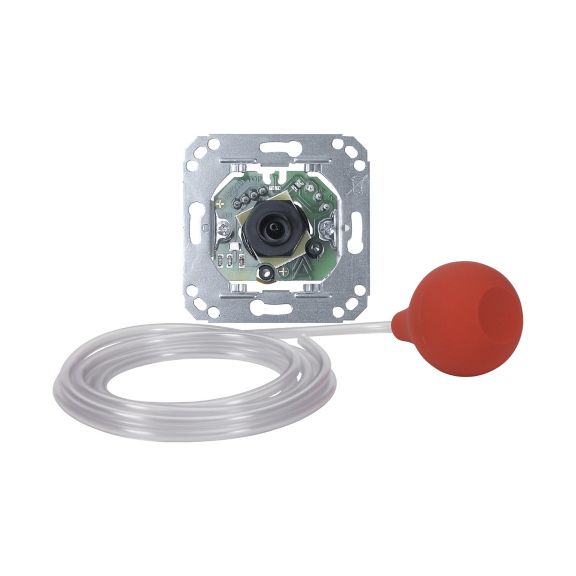

Call button for pneumatic actuation
Call button for pneumatic actuation for connection to the electronics module or room terminal via a passive input.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Part Number: 70006D
Call button for pneumatic actuation for connection to the electronics module or room terminal via a passive input.
Superordinate room identification signal displayed after call activation. Function monitoring is carried out by the electronic module or room terminal (call circuit monitoring).
Features
- 4 m insulating material tube with rubber ball
- 1 reassurance lamp - red
Accessories
88880C3N Cover for pneumatic call buttons.
Specifications
Material Specifications
- Version
- For Normally Closed and Open-Circuit System
Standards & Certifications
- Type Of Protection
- IP40 (When Installed Inclusive Suitable Cover Plate)
Applications & Compatibility
- For Use With
- Pneumatic Actuation
Dimensions & Weight
- Weight (g)
- 193
- Dimensions
- W: 71 mm H: 71 mm
Technical Specifications
- Mounting
- Flush (DIN 49073)
Features
- Features
- 1 Re-assurance Lamp - (Red)
- 4m Insulating Material Tube with Rubber Ball
Material Specifications
- Version
- For Normally Closed and Open-Circuit System
Standards & Certifications
- Type Of Protection
- IP40 (When Installed Inclusive Suitable Cover Plate)
Applications & Compatibility
- For Use With
- Pneumatic Actuation
Dimensions & Weight
- Weight (g)
- 193
- Dimensions
- W: 71 mm H: 71 mm
Technical Specifications
- Mounting
- Flush (DIN 49073)
Features
- Features
- 1 Re-assurance Lamp - (Red)
- 4m Insulating Material Tube with Rubber Ball
- Version : For Normally Closed and Open-Circuit System
- Type Of Protection : IP40 (When Installed Inclusive Suitable Cover Plate)
- For Use With : Pneumatic Actuation
- Weight (g) : 193
- Dimensions : W: 71 mm H: 71 mm
- Mounting : Flush (DIN 49073)
- Features : 1 Re-assurance Lamp - (Red)|4m Insulating Material Tube with Rubber Ball
