Fixed Flame Detectors
FS24X Plus
Triple IR Flame Detector
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

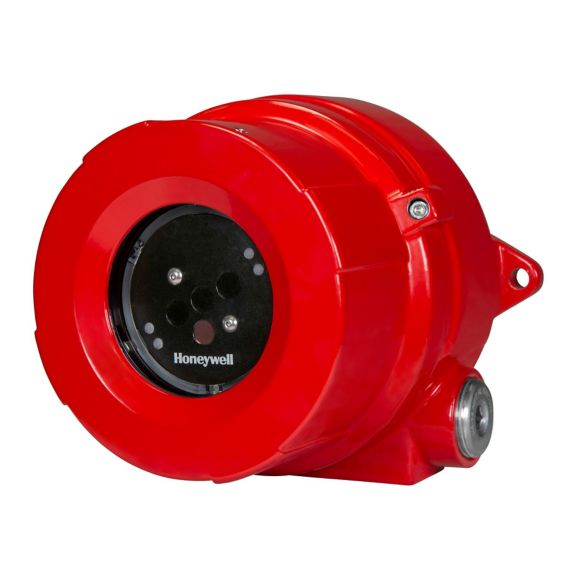

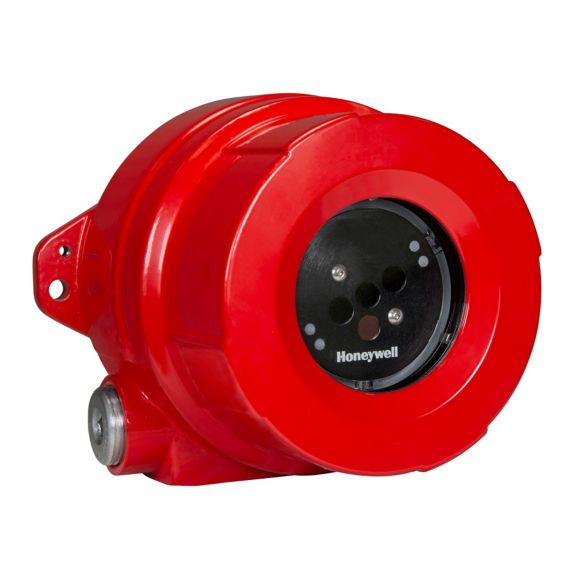

The FS24X Plus is a triple IR flame detector using Honeywell’s WideBand IR™ infrared technology to detect hydrocarbon and hydrogen fires quickly and reliably — before they grow — even in the presence of environmental inhibitors like rain, fog, and smoke.Designed for hazardous locations, the FS24X Plus has several marine certifications and is SIL2 rated for safety instrumented system applications.Features & Benefits:
- Reliable Detection
- Fast response to a wide range of hydrocarbon and hydrogen fires even in low visibility conditions
- Advanced diagnostics including window clarity to maintain site protection Easy to Use
- Sunshade and standard or marine mounting bracket included for quickly and easily positioning the detector in an optimal location.
- Powerful FlameManager software replaces legacy dip switches for detector configuration and provides simplified diagnostics and post event FirePics™.

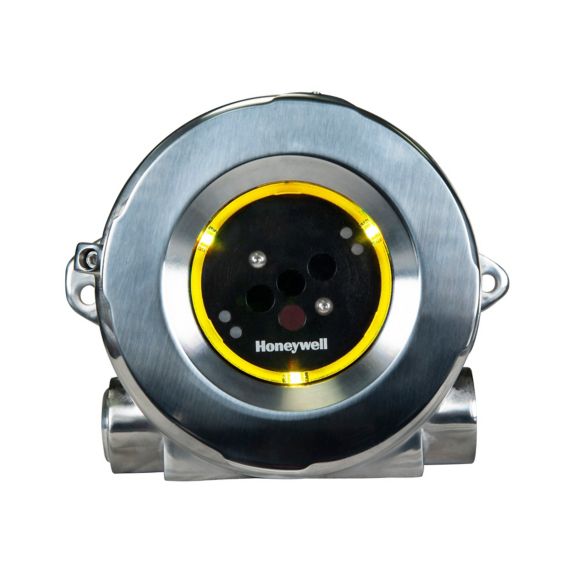

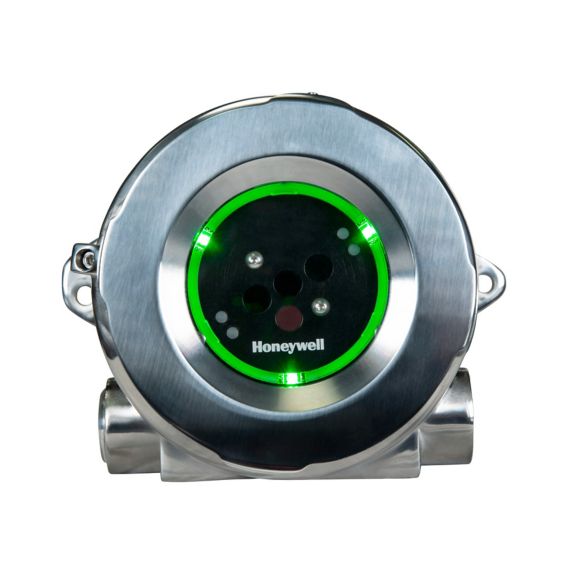

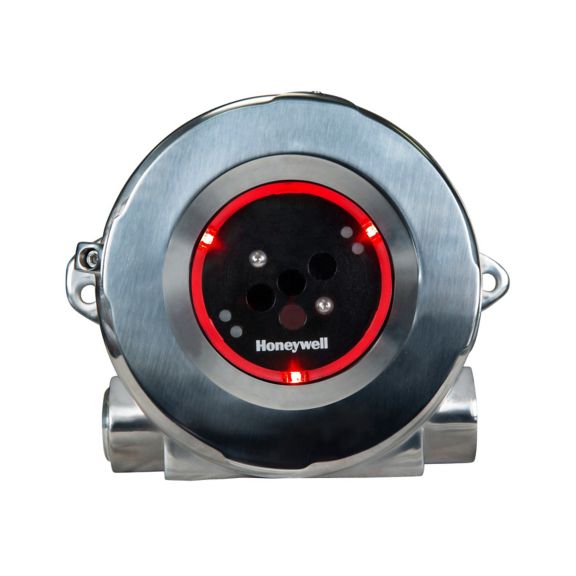

- High Visibility, Multi Color LED HALO ring provides clear indication of device status from up to 50ft (15m) away, even in bright outdoor environments
- Long-range, wide-angle sensors detect fires at 200ft (60m) for 1ft2 (0.1m2) n-Heptane
- Multiple outputs including 4-20mA, Relays, HART®, and Modbus communication all standard
- Responds to a wide range of hydrocarbon fires such as n-Heptane, Methane, Butane, Propane, Ethanol, Methanol, Diesel, Kerosene, JP-4, and IPA as well as Hydrogen
- Speed of response typically 5 seconds
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Explore our fixed, portable, and high-tech support services now!
Specifications
Overview
- Brand
- Honeywell
Dimensions & Weight
- Weight range
- Aluminum: 1.7 kg (3.7 lbs), Stainless Steel: 3.4 kg (7.4 lbs)
Technical Specifications
- Humidity Range
- 0-99%
- 0–99% relative humidity
- Analog Output Signal Type
- 4-20mA standard
- Number of Analog Outputs
- 1
- Connector Type
- 2 x M25 or 2 x ¾” NPT Entries
- Relay Rated Load
- 2A at 32 VDC
- Relay Output Configuration
- Alarm, Fault, and Auxiliary
- Relay Activation Settings
- Single Pole Double Throw (SPDT)
- Sensing Method
- Triple IR
- Number of Relay Outputs
- 3
Standards & Certifications
- Certifications - Performance
- EN54-10: Class1 (Medium, High, Very High Sensitivities), Class 2 (Low Sensitivity)
- FM3260
- Certifications - Other
- IEC61508 SIL 2 Certified by TUV Sud
- Maritime Type approved to ABS, Lloyds, BV, DNV
- Certifications - Hazloc
- ATEX: II 2 G Ex db IIC T5 Gb; II 2 D Ex tb IIIC T135° C Db IP66/67;
- CCC - Pending
- CUTR - Pending
- IECEx: Ex db IIC T5 Gb; Ex tb IIIC T135° C Db IP66/67;
- INMETRO
- cFMus: Class I, Div 1, Grps A,B,C,D; Class II/III, Div 1, Grps E,F,G NEMA 4X
- NEMA Rating
- Type 4X
- Ingress Protection
- IP66/67
Features
- Datalogging
- 5000 events and ten 30-second FirePics™
- Features & Benefits
- Calibration free
- Easy installation and commissioning
- High-visibility halo light ring
- Modbus, HART®, 4-20 mA, Relays Standard
- Mounting bracket and sunshade included
- Multiple marine certifications
- Proved triple IR sensor technology
- Robust false alarm avoidance
- Simple maintenance
- Superior performance in adverse weather conditions (through smoke, rain, mist and fog)
- Relay Included
- Yes
- Visual Indicators
- LED halo light ring - Green, Yellow, Red
- Replacement Parts
- FS24XP-PUCK
Material Specifications
- Material
- 316 Stainless Steel
- Low Copper Aluminum with Marine Grade Paint
Electrical Specifications
- Operating Current
- 1.8 Watts (Nominal)
- 12 Watts (max) = with heater ON 100% duty cycle.
- 2.4 Watts (Alarm)
Additional Specifications
- Response time
- Typically, 5 Seconds and a maximum of 10 Seconds
Overview
- Brand
- Honeywell
Dimensions & Weight
- Weight range
- Aluminum: 1.7 kg (3.7 lbs), Stainless Steel: 3.4 kg (7.4 lbs)
Technical Specifications
- Humidity Range
- 0-99%
- 0–99% relative humidity
- Analog Output Signal Type
- 4-20mA standard
- Number of Analog Outputs
- 1
- Connector Type
- 2 x M25 or 2 x ¾” NPT Entries
- Relay Rated Load
- 2A at 32 VDC
- Relay Output Configuration
- Alarm, Fault, and Auxiliary
- Relay Activation Settings
- Single Pole Double Throw (SPDT)
- Sensing Method
- Triple IR
- Number of Relay Outputs
- 3
Standards & Certifications
- Certifications - Performance
- EN54-10: Class1 (Medium, High, Very High Sensitivities), Class 2 (Low Sensitivity)
- FM3260
- Certifications - Other
- IEC61508 SIL 2 Certified by TUV Sud
- Maritime Type approved to ABS, Lloyds, BV, DNV
- Certifications - Hazloc
- ATEX: II 2 G Ex db IIC T5 Gb; II 2 D Ex tb IIIC T135° C Db IP66/67;
- CCC - Pending
- CUTR - Pending
- IECEx: Ex db IIC T5 Gb; Ex tb IIIC T135° C Db IP66/67;
- INMETRO
- cFMus: Class I, Div 1, Grps A,B,C,D; Class II/III, Div 1, Grps E,F,G NEMA 4X
- NEMA Rating
- Type 4X
- Ingress Protection
- IP66/67
Features
- Datalogging
- 5000 events and ten 30-second FirePics™
- Features & Benefits
- Calibration free
- Easy installation and commissioning
- High-visibility halo light ring
- Modbus, HART®, 4-20 mA, Relays Standard
- Mounting bracket and sunshade included
- Multiple marine certifications
- Proved triple IR sensor technology
- Robust false alarm avoidance
- Simple maintenance
- Superior performance in adverse weather conditions (through smoke, rain, mist and fog)
- Relay Included
- Yes
- Visual Indicators
- LED halo light ring - Green, Yellow, Red
- Replacement Parts
- FS24XP-PUCK
Material Specifications
- Material
- 316 Stainless Steel
- Low Copper Aluminum with Marine Grade Paint
Electrical Specifications
- Operating Current
- 1.8 Watts (Nominal)
- 12 Watts (max) = with heater ON 100% duty cycle.
- 2.4 Watts (Alarm)
Additional Specifications
- Response time
- Typically, 5 Seconds and a maximum of 10 Seconds
- Brand : Honeywell
- Weight range : Aluminum: 1.7 kg (3.7 lbs), Stainless Steel: 3.4 kg (7.4 lbs)
- Humidity Range : 0-99%|0–99% relative humidity
- Analog Output Signal Type : 4-20mA standard
- Number of Analog Outputs : 1
- Certifications - Performance : EN54-10: Class1 (Medium, High, Very High Sensitivities), Class 2 (Low Sensitivity)|FM3260
- Certifications - Other : IEC61508 SIL 2 Certified by TUV Sud|Maritime Type approved to ABS, Lloyds, BV, DNV
- Certifications - Hazloc : ATEX: II 2 G Ex db IIC T5 Gb; II 2 D Ex tb IIIC T135° C Db IP66/67;|CCC - Pending|CUTR - Pending|IECEx: Ex db IIC T5 Gb; Ex tb IIIC T135° C Db IP66/67;|INMETRO|cFMus: Class I, Div 1, Grps A,B,C,D; Class II/III, Div 1, Grps E,F,G NEMA 4X
- Connector Type : 2 x M25 or 2 x ¾” NPT Entries
- Datalogging : 5000 events and ten 30-second FirePics™
- Features & Benefits : Calibration free|Easy installation and commissioning|High-visibility halo light ring|Modbus, HART®, 4-20 mA, Relays Standard|Mounting bracket and sunshade included|Multiple marine certifications|Proved triple IR sensor technology|Robust false alarm avoidance|Simple maintenance|Superior performance in adverse weather conditions (through smoke, rain, mist and fog)
- Material : 316 Stainless Steel|Low Copper Aluminum with Marine Grade Paint
- Relay Rated Load : 2A at 32 VDC
- Relay Output Configuration : Alarm, Fault, and Auxiliary
- Relay Included : Yes
- Relay Activation Settings : Single Pole Double Throw (SPDT)
- Sensing Method : Triple IR
- Operating Current : 1.8 Watts (Nominal)|12 Watts (max) = with heater ON 100% duty cycle.|2.4 Watts (Alarm)
- Visual Indicators : LED halo light ring - Green, Yellow, Red
- Response time : Typically, 5 Seconds and a maximum of 10 Seconds
- Replacement Parts : FS24XP-PUCK
- Number of Relay Outputs : 3
- NEMA Rating : Type 4X
- Ingress Protection : IP66/67
