self retracting lifelines

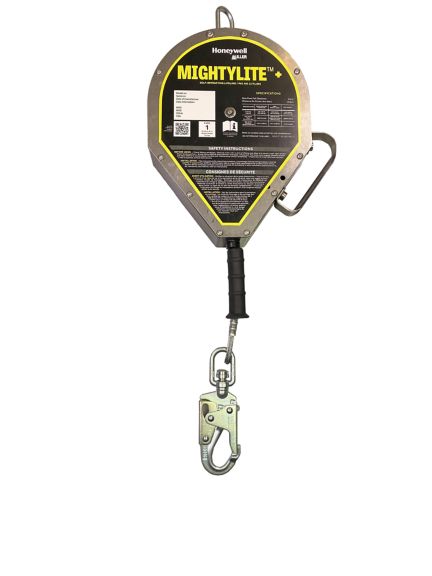

MightyLite+
Now part of our PLUS family of newly redesigned self-retracting devices, the Miller MightyLite™+ showcases increased performance and user-friendly design and labels, aligned with Miller H-series harnesses.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Serious safety performance and legendary dependability are now part of the PLUS family of newly redesigned self-retracting lifelines.
Ideal for a full range of applications, MightyLite+ self-retracting devices are available with galvanized and stainless-steel wire rope, in lengths from 20 ft (6m) to 130 ft (40m). MightyLite+ lifelines are easy to carry and install overhead or may be permanently mounted for repeat use.
1. INCREASED WEIGHT RATING
- Increased weight rating up to 420lbs (190.5kg) - OSHA
- Meets requirements of OSHA and certified ANSI Z359.14-2021 SRD Class 1
2. VARIETY OF LENGTHS
- Available in 20 ft, 30 ft, 40 ft, 50 ft, 85 ft, 100 ft and 130 ft
3. UNIT & LANYARD CONNECTIONS
- Corrosion-resistant stainless steel and aluminum housing extend service life
- Integral swivel reduces lifeline twisting
- Narrow payout port limits intrusion of foreign debris
- Quick-activating inertia brakes limit a free fall to less than two feet
- No annual factory recertification required
4. REDESIGNED LABELS
- Enhanced graphics, icons, and colors on UV-resistant scratch-resistant labeling
- New Miller look and feel, designs aligned with Miller Harnesses for mix and match protection
- Labeling aids user with regular inspection by providing space for recording
5. LIFELINE
- Carabiner and tagline included
- Available in Galvanized, Stainless Steel and Technora® reinforced webbing
Ideal for a full range of applications, MightyLite+ self-retracting devices are available with galvanized and stainless-steel wire rope, in lengths from 20 ft (6m) to 130 ft (40m). MightyLite+ lifelines are easy to carry and install overhead or may be permanently mounted for repeat use.
1. INCREASED WEIGHT RATING
- Increased weight rating up to 420lbs (190.5kg) - OSHA
- Meets requirements of OSHA and certified ANSI Z359.14-2021 SRD Class 1
2. VARIETY OF LENGTHS
- Available in 20 ft, 30 ft, 40 ft, 50 ft, 85 ft, 100 ft and 130 ft
3. UNIT & LANYARD CONNECTIONS
- Corrosion-resistant stainless steel and aluminum housing extend service life
- Integral swivel reduces lifeline twisting
- Narrow payout port limits intrusion of foreign debris
- Quick-activating inertia brakes limit a free fall to less than two feet
- No annual factory recertification required
4. REDESIGNED LABELS
- Enhanced graphics, icons, and colors on UV-resistant scratch-resistant labeling
- New Miller look and feel, designs aligned with Miller Harnesses for mix and match protection
- Labeling aids user with regular inspection by providing space for recording
5. LIFELINE
- Carabiner and tagline included
- Available in Galvanized, Stainless Steel and Technora® reinforced webbing
Specifications
Others
- RFID
- Yes
- Leading Edge Applications - Radius of Edge
- N/A millimetre
- Unit Connector Breaking Strength
- 3600 pound-force
- Internal Components Material
- Aluminium
- Galvanized Steel
- Stainless Steel
- Rescue-Retrieval Capability
- Yes
- Operating temperature Range
- -40 to 130 degree Fahrenheit
- Lifeline Connector Material
- Galvanized Steel
- Connecting Component Swivel
- Snap Hook
- Lifeline Connector Opening
- Snap Hook
- Unit Connector Material
- Steel
- Lifeline Configuration
- Overhead only
- Features & Benefits
- Innovative lightweight design
- Meets new ANSI standard
- User friendly
- Lifeline Connector
- Swivel Load Indicator Snap Hook
- Sealed Technology
- N/A
- Lifeline Material
- Galvanized Steel / Kevlar rope
- Breaking Strength
- 3591
- Unit Connector
- Carabiner
- Product Weight
- from 11.5lb to 64lb
- Product Length
- 20ft / 40ft / 50ft / 85ft / 100 ft / 130ft
- Load Indicator
- Yes
- Brake Material
- Stainless Steel
- Repairable
- Yes / No
- Edge Rated
- N/A
- Standards
- ANSI Z359.14-2021
- CSA Z259.2.2-2019
Others
- RFID
- Yes
- Leading Edge Applications - Radius of Edge
- N/A millimetre
- Unit Connector Breaking Strength
- 3600 pound-force
- Internal Components Material
- Aluminium
- Galvanized Steel
- Stainless Steel
- Rescue-Retrieval Capability
- Yes
- Operating temperature Range
- -40 to 130 degree Fahrenheit
- Lifeline Connector Material
- Galvanized Steel
- Connecting Component Swivel
- Snap Hook
- Lifeline Connector Opening
- Snap Hook
- Unit Connector Material
- Steel
- Lifeline Configuration
- Overhead only
- Features & Benefits
- Innovative lightweight design
- Meets new ANSI standard
- User friendly
- Lifeline Connector
- Swivel Load Indicator Snap Hook
- Sealed Technology
- N/A
- Lifeline Material
- Galvanized Steel / Kevlar rope
- Breaking Strength
- 3591
- Unit Connector
- Carabiner
- Product Weight
- from 11.5lb to 64lb
- Product Length
- 20ft / 40ft / 50ft / 85ft / 100 ft / 130ft
- Load Indicator
- Yes
- Brake Material
- Stainless Steel
- Repairable
- Yes / No
- Edge Rated
- N/A
- Standards
- ANSI Z359.14-2021
- CSA Z259.2.2-2019
- RFID : Yes
- Leading Edge Applications - Radius of Edge : N/A millimetre
- Unit Connector Breaking Strength : 3600 pound-force
- Internal Components Material : Aluminium|Galvanized Steel|Stainless Steel
- Rescue-Retrieval Capability : Yes
- Operating temperature Range : -40 to 130 degree Fahrenheit
- Lifeline Connector Material : Galvanized Steel
- Connecting Component Swivel : Snap Hook
- Lifeline Connector Opening : Snap Hook
- Unit Connector Material : Steel
- Lifeline Configuration : Overhead only
- Features & Benefits : Innovative lightweight design|Meets new ANSI standard|User friendly
- Lifeline Connector : Swivel Load Indicator Snap Hook
- Sealed Technology : N/A
- Lifeline Material : Galvanized Steel / Kevlar rope
- Breaking Strength : 3591
- Unit Connector : Carabiner
- Product Weight : from 11.5lb to 64lb
- Product Length : 20ft / 40ft / 50ft / 85ft / 100 ft / 130ft
- Load Indicator : Yes
- Brake Material : Stainless Steel
- Repairable : Yes / No
- Edge Rated : N/A
- Standards : ANSI Z359.14-2021|CSA Z259.2.2-2019
