    Amplifiers

    UV Series

    Strain gage amplifier. ±5 Vdc three-wire output. Programmable gain settings. Wide adjustment range on the zero.

    Overview

    The Model UV amplifier supplies a highly regulated bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±5 Vdc signal. The Universal In-line features two selectable excitation voltages, programmable gain settings, a wide adjustment range on the zero, and a buffered solid-state shunt cal relay for quick calibration.

    Features
    • Strain gage sensor amplifier
    • ±5 Vdc three-wire output
    • 3 V or 5 V excitation voltages @ 70 mA
    • 11 Vdc to 28 Vdc supply voltage
    • NEMA 4 housing
    • Increases signal-to-noise ratio in noisy environments
    • Effects of voltage drops in excitation sources are eliminated
    • Signals may be sent to the data systems from low impedence sources
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Test & Measurement Instrumentation Accessories Datasheet
    application/pdf 649.85 KB
    7/17/2021
    649.85 KB
    Test & Measurement Model UV Bridge Based Sensor In-Line Amplifier Datasheet
    application/pdf 238.57 KB
    7/17/2021
    238.57 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Model UV Product Manual
    application/pdf 128.17 KB
    7/17/2021
    128.17 KB
    Others
    Name
    Description
    File Size
    Date
    Size

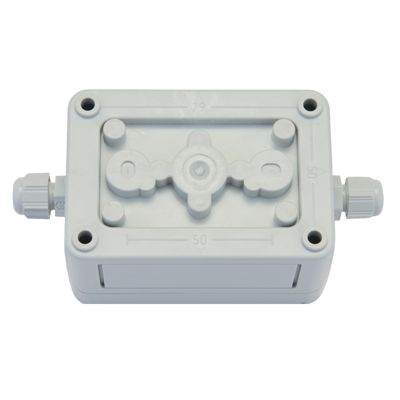

    Model UV Bottom View
    image/png 87.39 KB
    7/17/2021
    87.39 KB

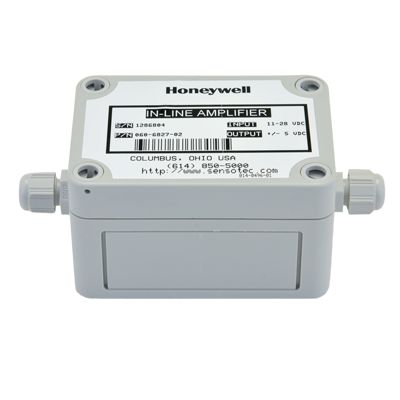

    Model UV Top View 2
    image/png 87.73 KB
    7/17/2021
    87.73 KB

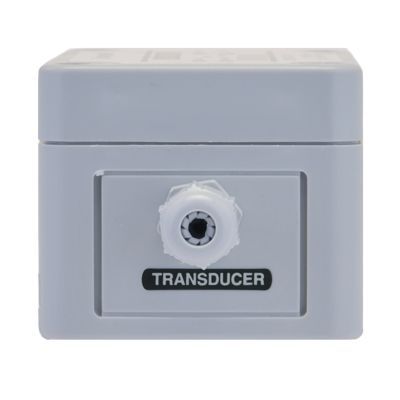

    Model UV Front View
    image/png 73.45 KB
    7/17/2021
    73.45 KB

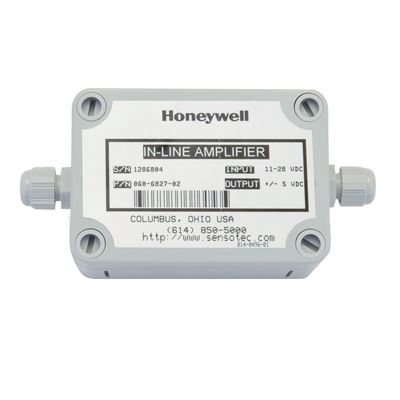

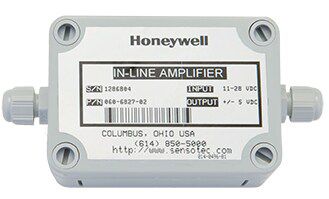

    Model UV Top View
