Thermostats
3800 Series
Hermetically sealed. Use in severe duty applications where military device not needed
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.

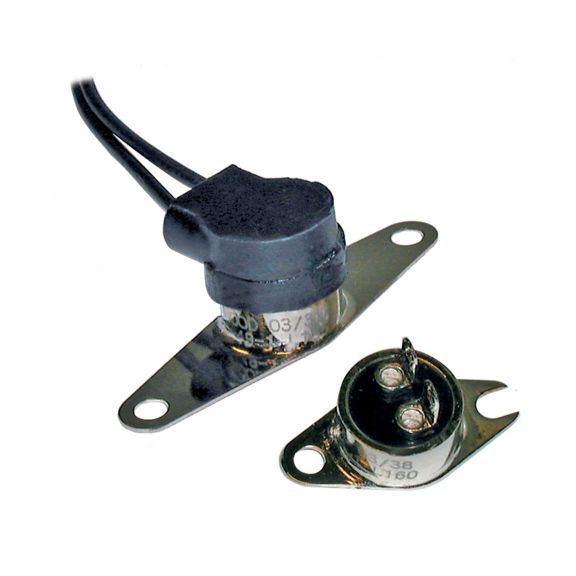

The 3800 Series is used where high levels of vibration and mechanical shock are common but a military device is not required. It is easily customized for use in a variety of applications.
Features
- Easily customized
Potential Applications
- Commercial aircraft
Features
- Shock
- MIL-STD-202, Method 213; 400 G
- Vibration
- MIL-STD-202, Method 204; 20 G
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-5
Technical Specifications
- Thermostat Environmental Exposure Range
- -62 °C to 288 °C [-80 °F to 550 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Operating Characteristics
- Operating Temperature
- -29 °C to 260 °C [-20 °F to 500 °F]
- Humidity
- MIL-STD-202, Method 106
Features
- Shock
- MIL-STD-202, Method 213; 400 G
- Vibration
- MIL-STD-202, Method 204; 20 G
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-5
Technical Specifications
- Thermostat Environmental Exposure Range
- -62 °C to 288 °C [-80 °F to 550 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Operating Characteristics
- Operating Temperature
- -29 °C to 260 °C [-20 °F to 500 °F]
- Humidity
- MIL-STD-202, Method 106
- Shock : MIL-STD-202, Method 213; 400 G
- Thermostat Environmental Exposure Range : -62 °C to 288 °C [-80 °F to 550 °F]
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm
- Operating Temperature : -29 °C to 260 °C [-20 °F to 500 °F]
- Insulation Resistance : MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Vibration : MIL-STD-202, Method 204; 20 G
- Seal Type : MIL-STD-202, Method 112; Cond. 1x10-5
- Humidity : MIL-STD-202, Method 106
