Thermostats

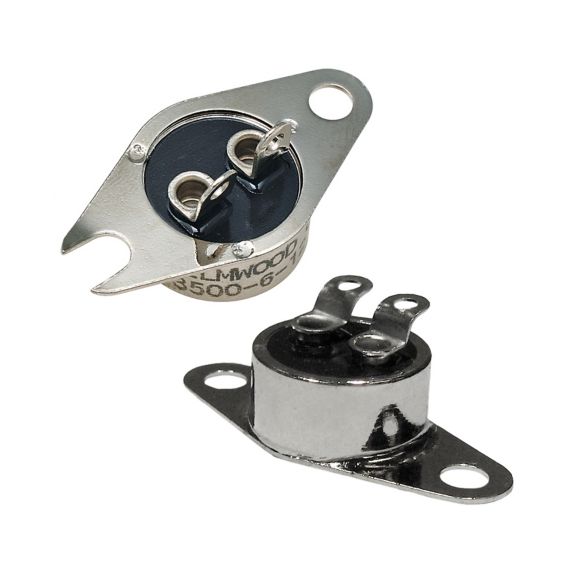

3500 Series

Military. Hermetically sealed. Tight tolerances & differentials. SPST contacts. Mounting brackets, terminals

Overview
3500 Series
Support Where To Buy Contact us

Distributor Inventory

The 3500 Series consists of a single pole, single throw switch activated by a snap action bimetal disc. Temperature calibrations are pre-set at the factory, and each unit is 100% thermally and mechanically inspected. It is available to open or close on temperature rise. The case is laser welded to form a hermetically sealed steel housing, with a glass-to-metal seal at the terminal junction. It meets or exceeds the requirements of MIL-S- 24236 and is designed specifically for military and commercial aircraft applications. It is not QPL listed (see 3MS1).

Features
  • Hermetically sealed
  • Tight tolerances
  • Tight differentials
  • Hi-Rel
Potential Applications
  • Military and commercial aircraft
Specifications

Features

  • Shock
    • MIL-STD-202, Method 213; 400 G
  • Thermal Shock
    • MIL-STD-202, Method 107; Cond. B
  • Salt Spray
    • MIL-STD-202, Method 101; Cond. B
  • Vibration
    • MIL-STD-202, Method 204; 20 G
  • Seal Type
    • MIL-STD-202, Method 112; Cond. C

Technical Specifications

  • Thermostat Environmental Exposure Range
    • -65 °C to 260 °C [-85 °F to 500 °F]
  • Thermostat Contact Resistance
    • MIL-STD-202, Method 307; 0.050 Ohm
    • MIL-STD-202, Method 307; 0.050 Ohm max.
  • Acceleration Range/Limits
    • MIL-STD-202, Method 212; 20 G
  • Insulation Resistance
    • MIL-STD-202, Method 302; 500 MOhm
  • Dielectric Strength
    • MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case

Standards & Certifications

  • Agency Approvals and Standards
    • MIL-PRF-24236
    • Meets or exceeds requirements of MIL-PRF-24236

Operating Characteristics

  • Operating Temperature
    • -46 °C to 204 °C [-50 °F to 400 °F]
    • -51 °C to 204 °C [-60 °F to 400 °F]
  • Humidity
    • MIL-STD-202, Method 106

Features

  • Shock
    • MIL-STD-202, Method 213; 400 G
  • Thermal Shock
    • MIL-STD-202, Method 107; Cond. B
  • Salt Spray
    • MIL-STD-202, Method 101; Cond. B
  • Vibration
    • MIL-STD-202, Method 204; 20 G
  • Seal Type
    • MIL-STD-202, Method 112; Cond. C

Technical Specifications

  • Thermostat Environmental Exposure Range
    • -65 °C to 260 °C [-85 °F to 500 °F]
  • Thermostat Contact Resistance
    • MIL-STD-202, Method 307; 0.050 Ohm
    • MIL-STD-202, Method 307; 0.050 Ohm max.
  • Acceleration Range/Limits
    • MIL-STD-202, Method 212; 20 G
  • Insulation Resistance
    • MIL-STD-202, Method 302; 500 MOhm
  • Dielectric Strength
    • MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case

Standards & Certifications

  • Agency Approvals and Standards
    • MIL-PRF-24236
    • Meets or exceeds requirements of MIL-PRF-24236

Operating Characteristics

  • Operating Temperature
    • -46 °C to 204 °C [-50 °F to 400 °F]
    • -51 °C to 204 °C [-60 °F to 400 °F]
  • Humidity
    • MIL-STD-202, Method 106
  • Shock : MIL-STD-202, Method 213; 400 G
  • Thermostat Environmental Exposure Range : -65 °C to 260 °C [-85 °F to 500 °F]
  • Agency Approvals and Standards : MIL-PRF-24236|Meets or exceeds requirements of MIL-PRF-24236
  • Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm|MIL-STD-202, Method 307; 0.050 Ohm max.
  • Acceleration Range/Limits : MIL-STD-202, Method 212; 20 G
  • Operating Temperature : -46 °C to 204 °C [-50 °F to 400 °F]|-51 °C to 204 °C [-60 °F to 400 °F]
  • Insulation Resistance : MIL-STD-202, Method 302; 500 MOhm
  • Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
  • Thermal Shock : MIL-STD-202, Method 107; Cond. B
  • Salt Spray : MIL-STD-202, Method 101; Cond. B
  • Vibration : MIL-STD-202, Method 204; 20 G
  • Seal Type : MIL-STD-202, Method 112; Cond. C
  • Humidity : MIL-STD-202, Method 106
