Flow Sensors

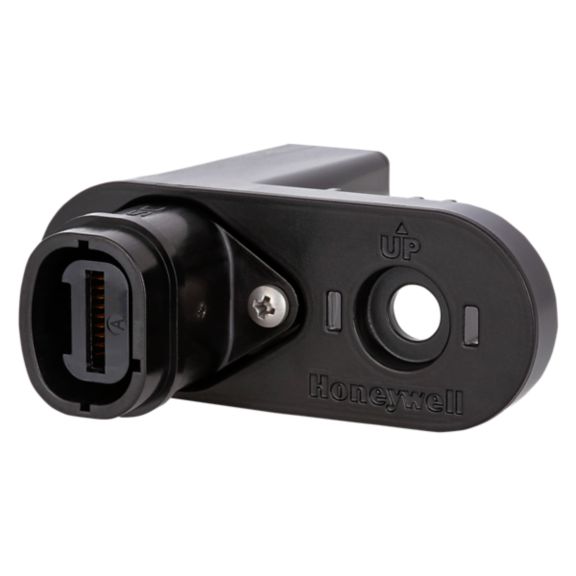

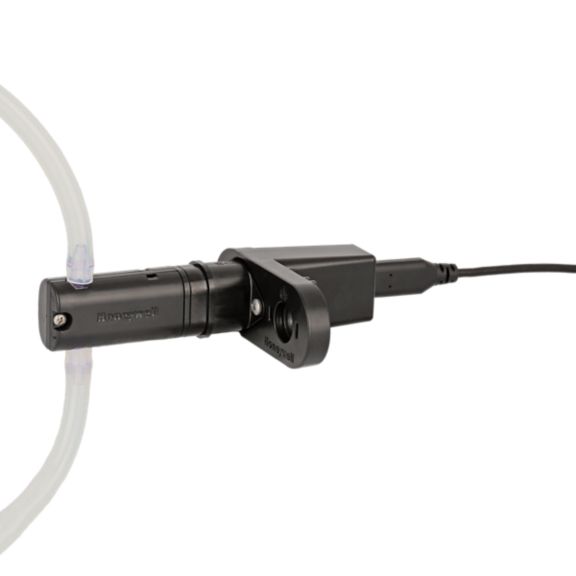

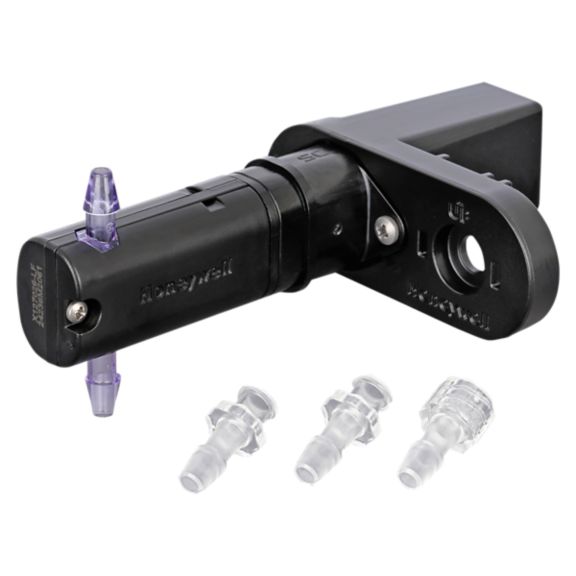

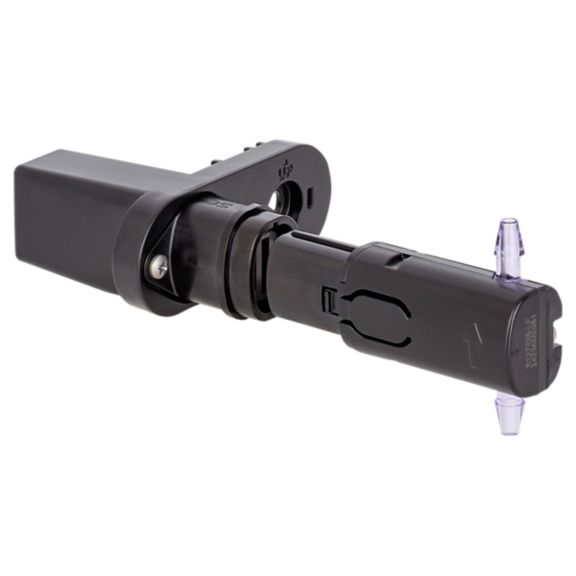

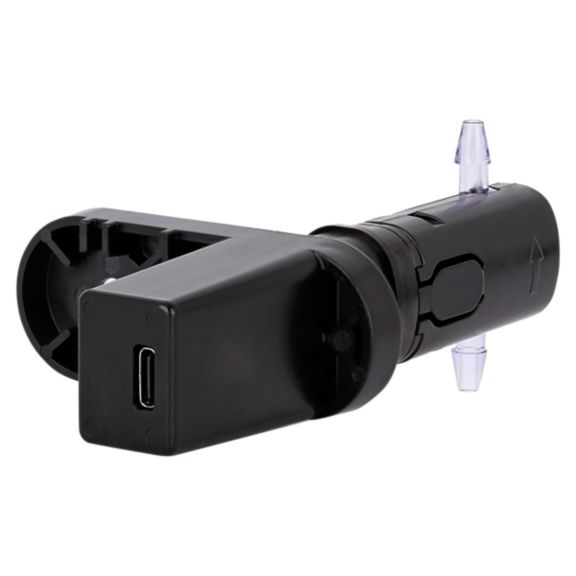

Liquid Flow Evaluation Module
Invasive liquid flow technology. Fully calibrated and temperature compensated. Plug and play USB-C Interface.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

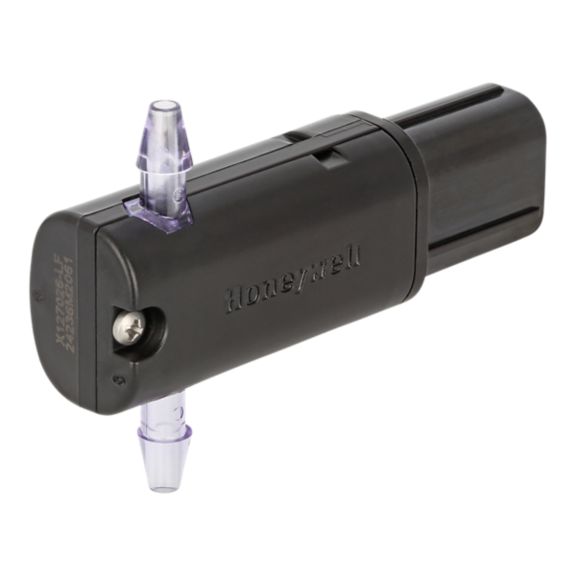

The disposable Liquid Flow sensor utilizes thermopile sensing technology to measure the flow rate for the liquid. The Liquid Flow Evaluation Module kit includes the reusable base station, disposable liquid flow sensors, 3/16’ ID soft tubing, PC application, and cable connector.
The sensing system is fully calibrated, and temperature compensated over the specified flow range. The sensor has a linear flow output over the temperature range of 10C to 40C (50F to 104F) and is calibrated with distilled water as standard, with the option for custom fluid calibrations to fit your specific application requirements.

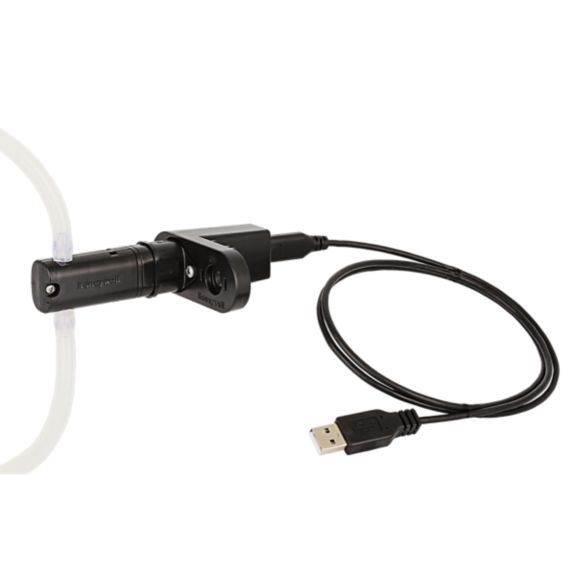

The evaluation module is paired with a powerful software application which enables users to adjust the sampling rate based on the applications flow characteristics and provides an option to view a rolling average of flow data to minimize noise or fluctuations in the data output.
The sensor is designed with a robust, high-performance, medical edge connector, providing a secure and reliable electrical connection. Additional sensor cartridges can be purchased separately.
*Note: To download the PC application, please click on the “Resources” link above. Honeywell recommends that customers use only the latest released version of the software offering to receive the latest security patches for known vulnerabilities. Using software which is not the most up-to-date version exposes you to unnecessary potential security risks, for which Honeywell does not accept responsibility.
The sensing system is fully calibrated, and temperature compensated over the specified flow range. The sensor has a linear flow output over the temperature range of 10C to 40C (50F to 104F) and is calibrated with distilled water as standard, with the option for custom fluid calibrations to fit your specific application requirements.
The evaluation module is paired with a powerful software application which enables users to adjust the sampling rate based on the applications flow characteristics and provides an option to view a rolling average of flow data to minimize noise or fluctuations in the data output.
The sensor is designed with a robust, high-performance, medical edge connector, providing a secure and reliable electrical connection. Additional sensor cartridges can be purchased separately.
*Note: To download the PC application, please click on the “Resources” link above. Honeywell recommends that customers use only the latest released version of the software offering to receive the latest security patches for known vulnerabilities. Using software which is not the most up-to-date version exposes you to unnecessary potential security risks, for which Honeywell does not accept responsibility.
Specifications
Others
- Industry
- Healthcare
Others
- Industry
- Healthcare
- Industry : Healthcare
