Systevo Legacy

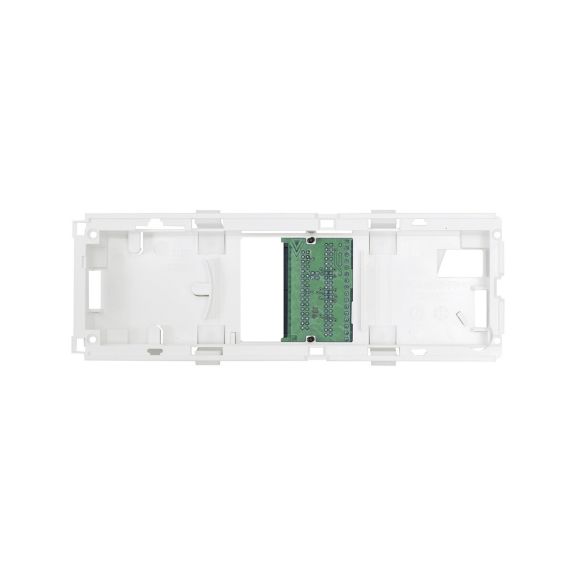

MVE Connection board for bed module
Connection board (version for medical supply unit) for bed module, with plug-in terminals for passive units, 24 V DC power supply and additional functions of the bed module.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product is no longer available
Part Number: 74174D1
Connection board (version for medical supply unit) for bed module, with plug-in terminals for passive units, 24 V DC power supply and additional functions of the bed module.
Scope of delivery
Connection board, connection terminals.
Specifications
Features
- Color
- White (RAL9016)
- Packing unit
- Connection Board
- Connection Terminals
Applications & Compatibility
- For Use With
- Bed Module
Dimensions & Weight
- Dimensions
- W: 288 mm H: 81 mm D: 52 mm
Material Specifications
- Material
- PC + ABS-FR
Features
- Color
- White (RAL9016)
- Packing unit
- Connection Board
- Connection Terminals
Applications & Compatibility
- For Use With
- Bed Module
Dimensions & Weight
- Dimensions
- W: 288 mm H: 81 mm D: 52 mm
Material Specifications
- Material
- PC + ABS-FR
- Color : White (RAL9016)
- Packing unit : Connection Board|Connection Terminals
- For Use With : Bed Module
- Dimensions : W: 288 mm H: 81 mm D: 52 mm
- Material : PC + ABS-FR
