Standalone Call Systems

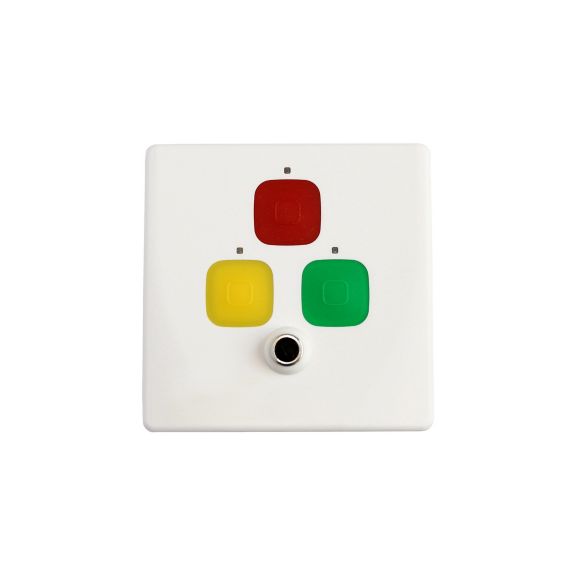

A-Call Accept + Phono
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Specifications
Standards & Certifications
- Approval
- EMC Certifications: EN 301 489-3
- LVD Certifications: EN 60950-1
- Radio Certifications: EN 300 550-1
Battery & Charging
- Battery life expectancy
- Approx. 5 years (At a Rate of 1 Radio Test Alarm + 4 Alarms per day)
Electrical Specifications
- Power Supply
- 24V DC or 2 AAA Batteries
Technical Specifications
- Contact load
- 250 mA
- 30V DC Max
- Technology
- 2 inputs (potential-free contacts)
- 2 outputs (NOC/NCC configurable)
- 3 status LEDs
- Low battery alarm
- Recommended by the European Union
- Specific frequency for social alarms
- Two-way radio communication
Dimensions & Weight
- Dimensions
- L: 86 mm H: 86 mm D: 26 mm
Frequency
- Frequency
- 869.25 MHz
Features
- Includes
- Mounting Bracket
Standards & Certifications
- Approval
- EMC Certifications: EN 301 489-3
- LVD Certifications: EN 60950-1
- Radio Certifications: EN 300 550-1
Battery & Charging
- Battery life expectancy
- Approx. 5 years (At a Rate of 1 Radio Test Alarm + 4 Alarms per day)
Electrical Specifications
- Power Supply
- 24V DC or 2 AAA Batteries
Technical Specifications
- Contact load
- 250 mA
- 30V DC Max
- Technology
- 2 inputs (potential-free contacts)
- 2 outputs (NOC/NCC configurable)
- 3 status LEDs
- Low battery alarm
- Recommended by the European Union
- Specific frequency for social alarms
- Two-way radio communication
Dimensions & Weight
- Dimensions
- L: 86 mm H: 86 mm D: 26 mm
Frequency
- Frequency
- 869.25 MHz
Features
- Includes
- Mounting Bracket
- Approval : EMC Certifications: EN 301 489-3|LVD Certifications: EN 60950-1|Radio Certifications: EN 300 550-1
- Battery life expectancy : Approx. 5 years (At a Rate of 1 Radio Test Alarm + 4 Alarms per day)
- Power Supply : 24V DC or 2 AAA Batteries
- Contact load : 250 mA|30V DC Max
- Technology : 2 inputs (potential-free contacts)|2 outputs (NOC/NCC configurable)|3 status LEDs|Low battery alarm|Recommended by the European Union|Specific frequency for social alarms|Two-way radio communication
- Dimensions : L: 86 mm H: 86 mm D: 26 mm
- Frequency : 869.25 MHz
- Includes : Mounting Bracket
