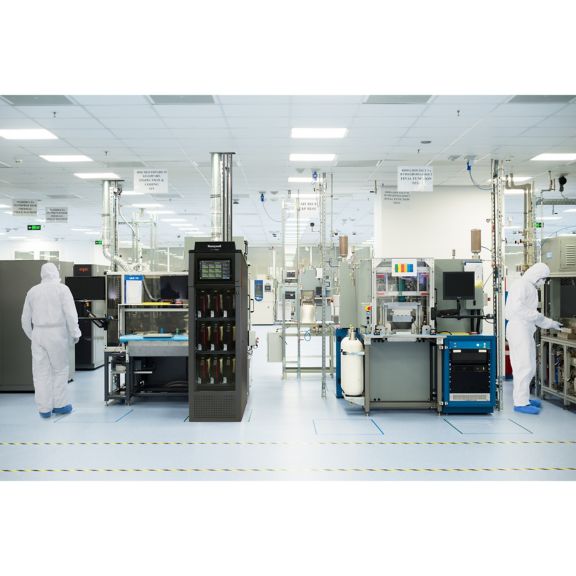

High Tech & Semiconductor
Vertex Edge
Honeywell Vertex Edge is a cost-effective toxic gas monitoring system detects the ultrasensitive gases in your hightech operations, helping you protect people and assets while reducing fab downtime.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell Vertex Edge toxic gas monitoring system can be tailored to meet the requirements of your facility. With up to nine Chemcassette® gas analyzers, each with eight points of detection, the system monitors virtually every gas used in semiconductor fabs — down to parts per billion (ppb).
Honeywell Vertex Edge provides high performance with simple operation, so you can quickly evaluate gas readings, alarms, event logs, real-time trends and overall system status. And the user-friendly touchscreen with large icons makes navigation easy — even if you’re wearing gloves.
Honeywell Vertex Edge provides high performance with simple operation, so you can quickly evaluate gas readings, alarms, event logs, real-time trends and overall system status. And the user-friendly touchscreen with large icons makes navigation easy — even if you’re wearing gloves.
Even the best products deserve expert maintenance!
Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.
Explore our fixed, portable, and high-tech support services now!
Specifications
Brand
- Brand
- Honeywell
Dimensions & Weight
- Size
- H: 76 in D: 24 in W: 35 in
- Exhaust Length
- 50 ft
Technical Specifications
- Digital Communication Ports
- OPC (Option)
- RTU Modbus
- TCP/IP
- Wiring Requirement
- 14 AWG (10 AWG for 115 V)
- Digital Modbus TCP/IP: CAT5 Shielded Cable or Equivalent (RJ45 connector)
- Modbus RTU: 2-Wire Stranded, Shielded Cable or Equivalent (24 to 14 AWG)
- Operating Altitude
- -1,000 ft to 6,000 ft Above Sea Level
- Transport Time
- Less than 50 sec up to 325 ft
- Tubing Length
- 400 ft
- Sample Lines
- ID: 0.190 in OD: 1/4 in (Thin Wall)
- Exhaust Line
- ID: 3/8 in OD: 1/2 in Teflon Tubing
- Flow Rate
- 2.1 LPM
Standards & Certifications
- Certificates and Standards
- EN 301 489-1 V2.2.3
- EN 301 489-3 V2.1.1
- EN 50270:2015
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- EN 61000-6-4:2007/A1:2011
- EN 62368-1:2014/A11:2017
- EN IEC 61000-6-2:2019
- EN IEC 63000:2018
- EN ISO/IEC 17050-1:2010
- IEC 61010-1:2010
- IEC 61010-1:2010/AMD1:2016
- RoHS Directive 2015/863/EU
Features
- Features & Benefits
- Access the Inside of the Unit with Keylock and Latch - No Screwdriver Needed
- Easily Service the Power and Data Cables with a Clear View of The Touchscreen and Chemcassette® Analyzers

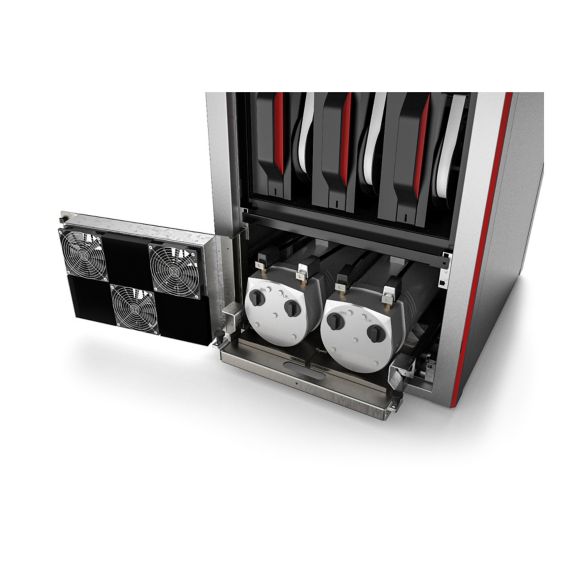

- Pullout Tray Makes It Easy to Replace and Service Pumps
- Quickly Identify Sampling Tubes for Corresponding Analyzers, So You Can Address a Fault or Install a New Point
- Steel Door Stands Up to Traffic, While a Splash-Proof Cap Protects the System From Overhead Liquid Exposure
- Use the Touchscreen to Set Customized Reminders for Maintenance Tasks; Clearly See which Elements to Service
- Vertex Edge Offers Modbus TCP and Modbus RTU for Interfacing to your Sites Control Systems
- Visual Indicators
- Display Gas Reading, Alarm and Instrument Status Real-Time Base
- Event Logging Including Maintenance/Instrument Fault and Gas Alarm
- LED Indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
- Multiple Searching Option for The Event
- Provide Real-Time Trend Chart and Gas Event Snapshot Trend Chart
- Display Type
- 15.6 in Screen Monitor with Capacitive Touch Interface
Operating Characteristics
- Operating Humidity
- 20 to 80% RH
Electrical Specifications
- Power Consumption
- 1.4 kVA, 0.84 Power Factor, 1.2 kW @128 V AC
- Operating Voltage
- 114 V AC to 126 V AC, 30A (120 V)
- 208 V to 240 V AC, 15A (230 V)
Material Specifications
- Housing Material
- Stainless Steel
Brand
- Brand
- Honeywell
Dimensions & Weight
- Size
- H: 76 in D: 24 in W: 35 in
- Exhaust Length
- 50 ft
Technical Specifications
- Digital Communication Ports
- OPC (Option)
- RTU Modbus
- TCP/IP
- Wiring Requirement
- 14 AWG (10 AWG for 115 V)
- Digital Modbus TCP/IP: CAT5 Shielded Cable or Equivalent (RJ45 connector)
- Modbus RTU: 2-Wire Stranded, Shielded Cable or Equivalent (24 to 14 AWG)
- Operating Altitude
- -1,000 ft to 6,000 ft Above Sea Level
- Transport Time
- Less than 50 sec up to 325 ft
- Tubing Length
- 400 ft
- Sample Lines
- ID: 0.190 in OD: 1/4 in (Thin Wall)
- Exhaust Line
- ID: 3/8 in OD: 1/2 in Teflon Tubing
- Flow Rate
- 2.1 LPM
Standards & Certifications
- Certificates and Standards
- EN 301 489-1 V2.2.3
- EN 301 489-3 V2.1.1
- EN 50270:2015
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- EN 61000-6-4:2007/A1:2011
- EN 62368-1:2014/A11:2017
- EN IEC 61000-6-2:2019
- EN IEC 63000:2018
- EN ISO/IEC 17050-1:2010
- IEC 61010-1:2010
- IEC 61010-1:2010/AMD1:2016
- RoHS Directive 2015/863/EU
Features
- Features & Benefits
- Access the Inside of the Unit with Keylock and Latch - No Screwdriver Needed
- Easily Service the Power and Data Cables with a Clear View of The Touchscreen and Chemcassette® Analyzers
- Pullout Tray Makes It Easy to Replace and Service Pumps
- Quickly Identify Sampling Tubes for Corresponding Analyzers, So You Can Address a Fault or Install a New Point
- Steel Door Stands Up to Traffic, While a Splash-Proof Cap Protects the System From Overhead Liquid Exposure
- Use the Touchscreen to Set Customized Reminders for Maintenance Tasks; Clearly See which Elements to Service
- Vertex Edge Offers Modbus TCP and Modbus RTU for Interfacing to your Sites Control Systems
- Visual Indicators
- Display Gas Reading, Alarm and Instrument Status Real-Time Base
- Event Logging Including Maintenance/Instrument Fault and Gas Alarm
- LED Indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)
- Multiple Searching Option for The Event
- Provide Real-Time Trend Chart and Gas Event Snapshot Trend Chart
- Display Type
- 15.6 in Screen Monitor with Capacitive Touch Interface
Operating Characteristics
- Operating Humidity
- 20 to 80% RH
Electrical Specifications
- Power Consumption
- 1.4 kVA, 0.84 Power Factor, 1.2 kW @128 V AC
- Operating Voltage
- 114 V AC to 126 V AC, 30A (120 V)
- 208 V to 240 V AC, 15A (230 V)
Material Specifications
- Housing Material
- Stainless Steel
- Brand : Honeywell
- Size : H: 76 in D: 24 in W: 35 in
- Digital Communication Ports : OPC (Option)|RTU Modbus|TCP/IP
- Certificates and Standards : EN 301 489-1 V2.2.3|EN 301 489-3 V2.1.1|EN 50270:2015|EN 61000-3-2:2014|EN 61000-3-3:2013|EN 61000-6-4:2007/A1:2011|EN 62368-1:2014/A11:2017|EN IEC 61000-6-2:2019|EN IEC 63000:2018|EN ISO/IEC 17050-1:2010|IEC 61010-1:2010|IEC 61010-1:2010/AMD1:2016|RoHS Directive 2015/863/EU
- Features & Benefits : Access the Inside of the Unit with Keylock and Latch - No Screwdriver Needed|Easily Service the Power and Data Cables with a Clear View of The Touchscreen and Chemcassette® Analyzers|Pullout Tray Makes It Easy to Replace and Service Pumps|Quickly Identify Sampling Tubes for Corresponding Analyzers, So You Can Address a Fault or Install a New Point|Steel Door Stands Up to Traffic, While a Splash-Proof Cap Protects the System From Overhead Liquid Exposure|Use the Touchscreen to Set Customized Reminders for Maintenance Tasks; Clearly See which Elements to Service|Vertex Edge Offers Modbus TCP and Modbus RTU for Interfacing to your Sites Control Systems
- Wiring Requirement : 14 AWG (10 AWG for 115 V)|Digital Modbus TCP/IP: CAT5 Shielded Cable or Equivalent (RJ45 connector)|Modbus RTU: 2-Wire Stranded, Shielded Cable or Equivalent (24 to 14 AWG)
- Operating Humidity : 20 to 80% RH
- Operating Altitude : -1,000 ft to 6,000 ft Above Sea Level
- Visual Indicators : Display Gas Reading, Alarm and Instrument Status Real-Time Base|Event Logging Including Maintenance/Instrument Fault and Gas Alarm|LED Indicator: Normal (Green), Alarm 1 (Red), Alarm 2 (Red), Fault (Yellow)|Multiple Searching Option for The Event|Provide Real-Time Trend Chart and Gas Event Snapshot Trend Chart
- Power Consumption : 1.4 kVA, 0.84 Power Factor, 1.2 kW @128 V AC
- Operating Voltage : 114 V AC to 126 V AC, 30A (120 V)|208 V to 240 V AC, 15A (230 V)
- Housing Material : Stainless Steel
- Transport Time : Less than 50 sec up to 325 ft
- Exhaust Length : 50 ft
- Tubing Length : 400 ft
- Sample Lines : ID: 0.190 in OD: 1/4 in (Thin Wall)
- Exhaust Line : ID: 3/8 in OD: 1/2 in Teflon Tubing
- Display Type : 15.6 in Screen Monitor with Capacitive Touch Interface
- Flow Rate : 2.1 LPM
