EDA61K Handheld Computer

EDA61K Handheld Computer

Overview
eda61k gallery image

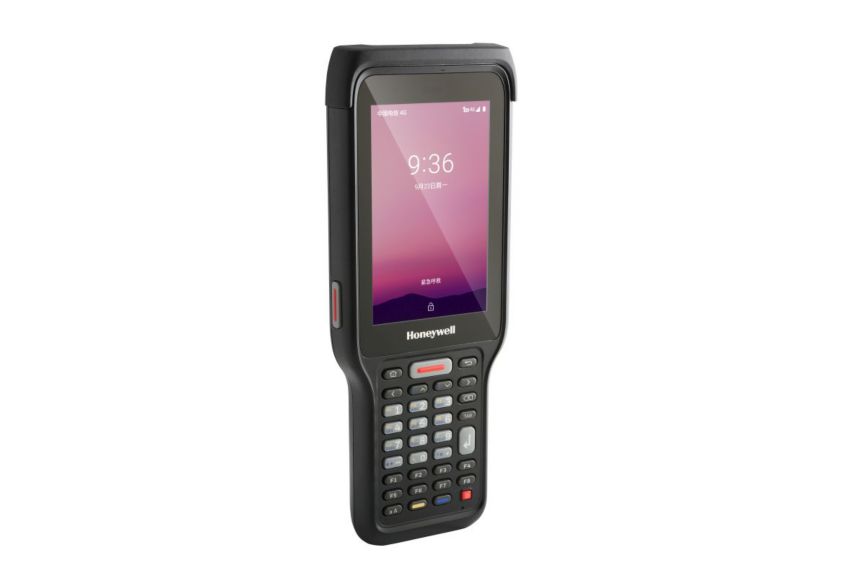

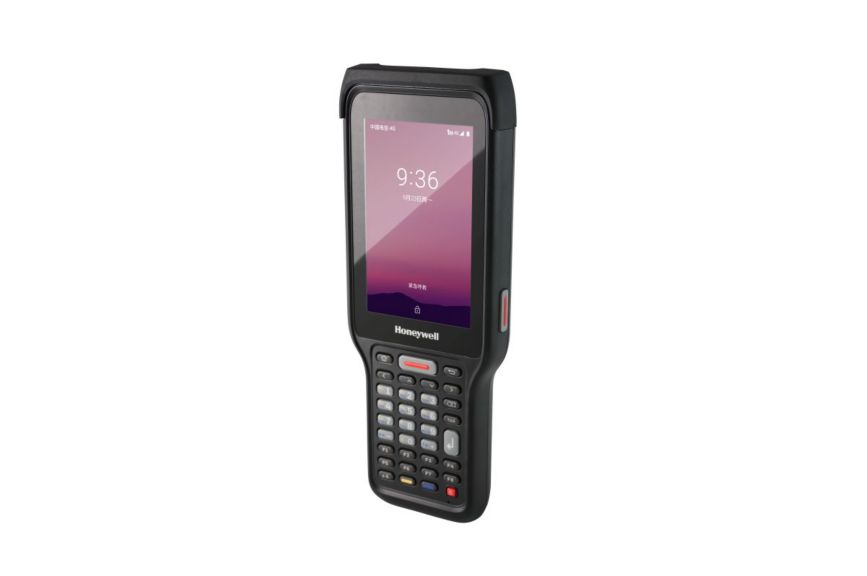

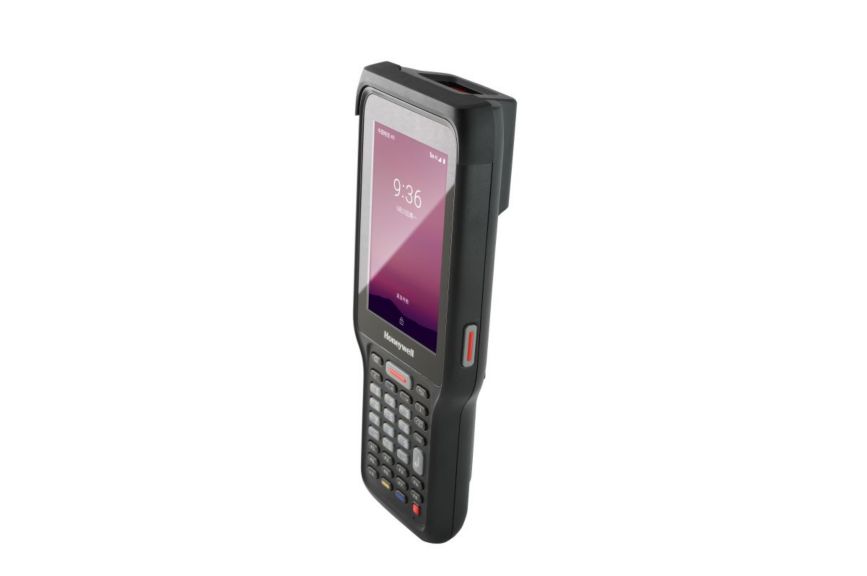

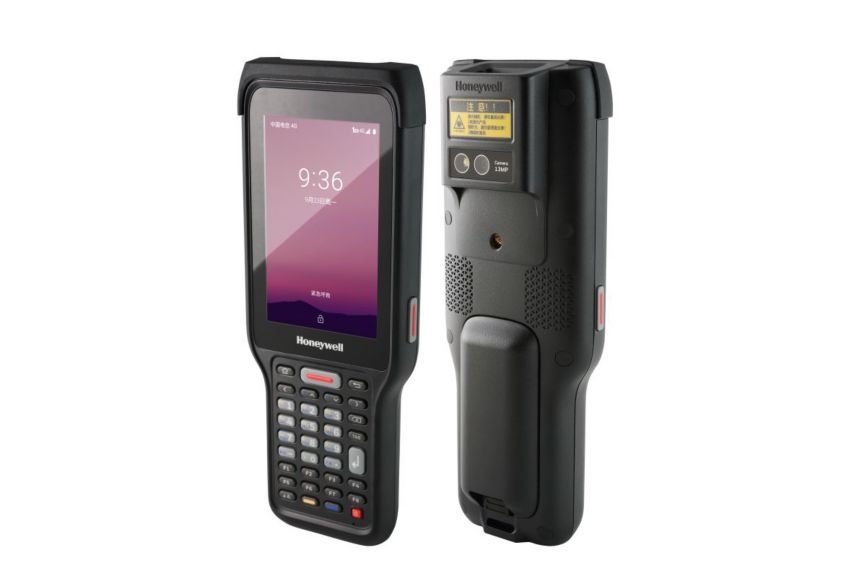

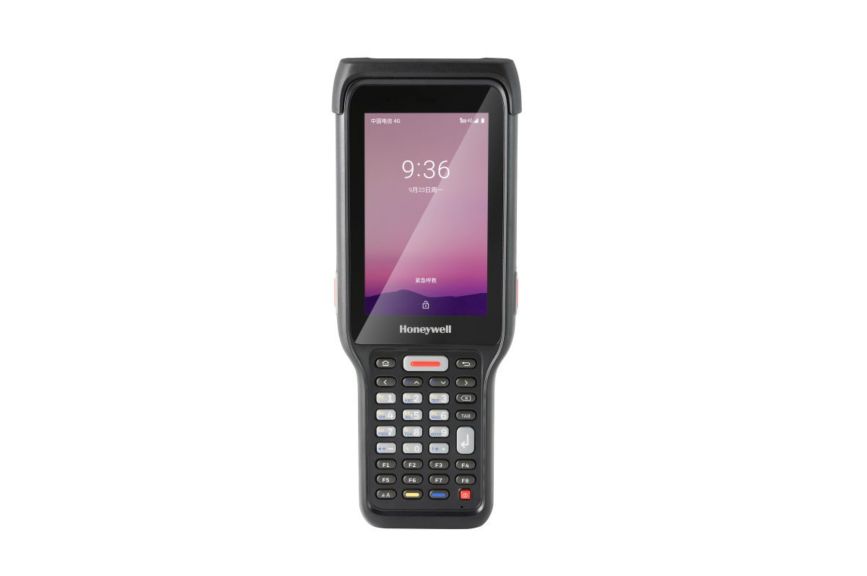

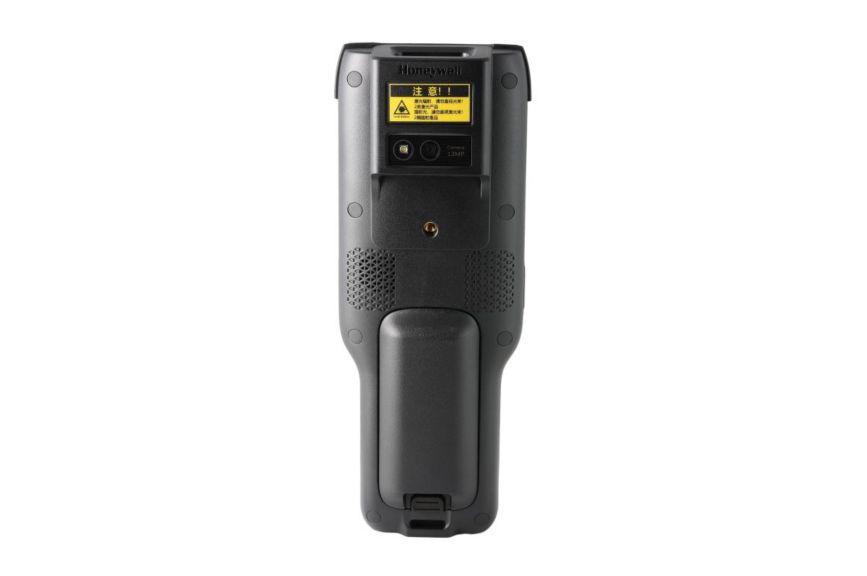

The Honeywell ScanPal™ EDA61K is a rugged, keyed mobile computer that helps businesses automate and error-proof workflows in indoor or outdoor warehouses, distribution centers and retail backrooms. With a battery that lasts for two to three shifts and a lightweight, ergonomically balanced design that minimizes user fatigue, the EDA61K helps keep material flowing smoothly all day long, even during peak season.
  • Responsive performance and quick access to businesscritical information with the speedy Qualcomm 1.8 GHz octa-core chipset, ample memory and reliable Wi-Fi.
  • Snappy, accurate data capture from a few centimeters to up to 15 meters (49.2 feet)with Honeywell’s slim N6703 and long-range EX20 scan imagers, and a 13-megapixel, autofocus camera.
  • Uninterrupted operation for more than two full shifts with Honeywell’s 7,000 mAh, hotswappable, lithium-ion smart battery pack that lasts 25 hours on a single charge.
  • Stay connected with fast, dual-band, 802.11 a/b/ g/n/ac Wi-Fi, Bluetooth® 4.2 and cellular support in most countries.
Available with both 34-key numeric and 47-key alpha-numeric keypad options, and a choice of scan engines that read from a few centimeters to up to 15 meters, the EDA61K is available in configurations suitable for most applications. The EDA61K comes with 4G LTE cellular support in many countries, making it possible to eliminate Wi-Fi infrastructure in some cases. Combined with a rugged package that survives repeated 1.5-meter (4.9 ft) drops to concrete, this means you can be confident that the EDA61K will deliver reliable, secure, compatible performance for years, maximizing return on investment. In addition to traditional keypads, the EDA61K is available with pre-licensed StayLinked SmartTE software and a sensitive, 4-inch touchscreen that make it suitable for younger workforces more accustomed to touchscreens, reducing training and adoption time – a key advantage for enterprises employing temporary workers during peak seasons.
Specifications

Features

  • Camera
    • 13.0-megapixel color camera with autofocus and LED flash
  • Camera Position
    • Rear

Dimensions

  • Overall Dimensions
    • 206 mm x 78 mm x 41.9 mm
    • 8.1 in x 3.1 in x 1.6 in

Network

  • Bluetooth Specifications
    • Class 4.2
  • GPS Specifications
    • Integrated GPS

Software & Firmware

  • Operating System
    • Android 9, upgradable to Android 10
  • Operating System Type
    • Android
  • Platform
    • ScanPal

Memory & Data

  • Memory
    • 3 GB RAM, 32 GB Flash

Hardware

  • Display Size
    • 4 in
  • Processor
    • Qualcomm SDM450 1.8 GHz octacore
  • Scan Range
    • Long Range
    • Standard Range
  • Keyboard
    • Alphanumeric
    • Numeric
  • Network
    • WLAN
    • WLAN/WWAN

Electrical

  • Battery Type
    • Li-Ion, 3.6V, 7,000 mAh

Environmental

  • Storage Temperature Range
    • -22°F - 158°F
    • -30°C - 70°C
  • Operating Temperature
    • -20°C - 50°C
    • -4°F - 122°F
  • Operating Humidity
    • 10% - 90% (non-condensing)

Standards & Approvals

  • Tumble Specifications
    • 1,000 tumbles at 1 m (3.3 ft)
  • Drop Specifications
    • Multiple 1.5 m (5 ft) drops to concrete at room temperature
  • Protection Ratings
    • IP65

Service Terms

  • Warranty Duration
    • One-year factory warranty

ERP

  • Brand
    • Honeywell

Others

  • Scan Distance
    • Long Range (0-20m)
    • Standard Range (0-1m)
  • Connectivity
    • Wi-Fi
  • Environment
    • Standard
  • Durability
    • Rugged 1.5 m (5 ft)
  • Keypad
    • Alphanumeric
    • Numeric

Features

  • Camera
    • 13.0-megapixel color camera with autofocus and LED flash
  • Camera Position
    • Rear

Dimensions

  • Overall Dimensions
    • 206 mm x 78 mm x 41.9 mm
    • 8.1 in x 3.1 in x 1.6 in

Network

  • Bluetooth Specifications
    • Class 4.2
  • GPS Specifications
    • Integrated GPS

Software & Firmware

  • Operating System
    • Android 9, upgradable to Android 10
  • Operating System Type
    • Android
  • Platform
    • ScanPal

Memory & Data

  • Memory
    • 3 GB RAM, 32 GB Flash

Hardware

  • Display Size
    • 4 in
  • Processor
    • Qualcomm SDM450 1.8 GHz octacore
  • Scan Range
    • Long Range
    • Standard Range
  • Keyboard
    • Alphanumeric
    • Numeric
  • Network
    • WLAN
    • WLAN/WWAN

Electrical

  • Battery Type
    • Li-Ion, 3.6V, 7,000 mAh

Environmental

  • Storage Temperature Range
    • -22°F - 158°F
    • -30°C - 70°C
  • Operating Temperature
    • -20°C - 50°C
    • -4°F - 122°F
  • Operating Humidity
    • 10% - 90% (non-condensing)

Standards & Approvals

  • Tumble Specifications
    • 1,000 tumbles at 1 m (3.3 ft)
  • Drop Specifications
    • Multiple 1.5 m (5 ft) drops to concrete at room temperature
  • Protection Ratings
    • IP65

Service Terms

  • Warranty Duration
    • One-year factory warranty

ERP

  • Brand
    • Honeywell

Others

  • Scan Distance
    • Long Range (0-20m)
    • Standard Range (0-1m)
  • Connectivity
    • Wi-Fi
  • Environment
    • Standard
  • Durability
    • Rugged 1.5 m (5 ft)
  • Keypad
    • Alphanumeric
    • Numeric
  • Camera : 13.0-megapixel color camera with autofocus and LED flash
  • Overall Dimensions : 206 mm x 78 mm x 41.9 mm|8.1 in x 3.1 in x 1.6 in
  • Bluetooth Specifications : Class 4.2
  • GPS Specifications : Integrated GPS
  • Operating System : Android 9, upgradable to Android 10
  • Memory : 3 GB RAM, 32 GB Flash
  • Display Size : 4 in
  • Processor : Qualcomm SDM450 1.8 GHz octacore
  • Battery Type : Li-Ion, 3.6V, 7,000 mAh
  • Storage Temperature Range : -22°F - 158°F|-30°C - 70°C
  • Operating Temperature : -20°C - 50°C|-4°F - 122°F
  • Operating Humidity : 10% - 90% (non-condensing)
  • Tumble Specifications : 1,000 tumbles at 1 m (3.3 ft)
  • Drop Specifications : Multiple 1.5 m (5 ft) drops to concrete at room temperature
  • Protection Ratings : IP65
  • Warranty Duration : One-year factory warranty
  • Brand : Honeywell
  • Operating System Type : Android
  • Camera Position : Rear
  • Scan Distance : Long Range (0-20m)|Standard Range (0-1m)
  • Connectivity : Wi-Fi
  • Environment : Standard
  • Scan Range : Long Range|Standard Range
  • Durability : Rugged 1.5 m (5 ft)
  • Platform : ScanPal
  • Keyboard : Alphanumeric|Numeric
  • Network : WLAN|WLAN/WWAN
  • Keypad : Alphanumeric|Numeric
Data Sheet
Name
Description
File Size
Date
Size
ScanPal EDA61K Handheld Computer Data Sheet
application/pdf 152.17 KB
3/17/2022
152.17 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
application/pdf 397.98 KB
10/1/2024
397.98 KB
Cleaning Guide: General Purpose Devices without DRH (CLEAN-GP-EN-IN-01 Rev E)
application/pdf 70.47 KB
4/21/2025
70.47 KB
User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
application/pdf 438.97 KB
10/1/2024
438.97 KB
User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
application/pdf 1.35 MB
10/1/2024
1.35 MB
Quick Start Guide: ScanPal EDA61K - English (EDA61K-A-EN-QS-01 Rev B)
application/pdf 1.34 MB
3/20/2023
1.34 MB
User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
application/pdf 2.18 MB
10/23/2024
2.18 MB
User Guide: UEMConnect Settings for ScanPal (UEMC-SCPAL-EN-UG-1 Rev A)
application/pdf 536.49 KB
11/2/2023
536.49 KB
User Guide: ScanPal EDA61K - English (EDA61K-A-EN-UG-01 Rev D)
application/pdf 3.39 MB
4/19/2023
3.39 MB
ScanPal EDA61K-SH Quick Start Guide (EDA61K-SH-QS Rev A)
application/pdf 1.7 MB
7/14/2021
1.7 MB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet: ScanPal EDA61K (EDA61K-ML-RS-03 Rev B)
application/pdf 1.95 MB
1/19/2023
1.95 MB
Regulatory Sheet: ScanPal Accessories: EDA70-HB, EDA-CB, EDA71-EB (EDA7X-ACC-ML-RS-02 Rev A)
application/pdf 1.14 MB
12/5/2022
1.14 MB
White Paper
Name
Description
File Size
Date
Size
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
10/1/2024
332.35 KB
Catalog
Name
Description
File Size
Date
Size
ScanPal EDA61K Handheld Computer Accessories Guide
application/pdf 2.13 MB
9/28/2021
2.13 MB
Brief
Name
Description
File Size
Date
Size
Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
application/pdf 70.58 KB
10/1/2024
70.58 KB
Name
Description
File Size
Date
Size
Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
application/pdf 70.58 KB
10/1/2024
70.58 KB
Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
application/pdf 397.98 KB
10/1/2024
397.98 KB
Cleaning Guide: General Purpose Devices without DRH (CLEAN-GP-EN-IN-01 Rev E)
application/pdf 70.47 KB
4/21/2025
70.47 KB
User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
application/pdf 438.97 KB
10/1/2024
438.97 KB
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
10/1/2024
332.35 KB
User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
application/pdf 1.35 MB
10/1/2024
1.35 MB
Quick Start Guide: ScanPal EDA61K - English (EDA61K-A-EN-QS-01 Rev B)
application/pdf 1.34 MB
3/20/2023
1.34 MB
User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
application/pdf 2.18 MB
10/23/2024
2.18 MB
User Guide: UEMConnect Settings for ScanPal (UEMC-SCPAL-EN-UG-1 Rev A)
application/pdf 536.49 KB
11/2/2023
536.49 KB
ScanPal EDA61K Handheld Computer Accessories Guide
application/pdf 2.13 MB
9/28/2021
2.13 MB
User Guide: ScanPal EDA61K - English (EDA61K-A-EN-UG-01 Rev D)
application/pdf 3.39 MB
4/19/2023
3.39 MB
ScanPal EDA61K Handheld Computer Data Sheet
application/pdf 152.17 KB
3/17/2022
152.17 KB
ScanPal EDA61K-SH Quick Start Guide (EDA61K-SH-QS Rev A)
application/pdf 1.7 MB
7/14/2021
1.7 MB
Regulatory Sheet: ScanPal EDA61K (EDA61K-ML-RS-03 Rev B)
application/pdf 1.95 MB
1/19/2023
1.95 MB
Regulatory Sheet: ScanPal Accessories: EDA70-HB, EDA-CB, EDA71-EB (EDA7X-ACC-ML-RS-02 Rev A)
application/pdf 1.14 MB
12/5/2022
1.14 MB
Showing 1 to 10 of 85 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
50149348-001
CK65-BTSC,BATT,3.6V,6800MAH,EXT,EDA61K
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
50149348-001
CK65-BTSC,BATT,3.6V,6800MAH,EXT,EDA61K
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PEAK
EDA61K,A-NUM,LAN,3,32,N6703,C,GMS,LS,AU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PEAK
EDA61K,A-NUM,LAN,3,32,N6703,C,GMS,LS,AU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PEOK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch WVGA, 13MP camera, Android GMS, Extended battery, hot swap, SCP prelicensed, EU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PEOK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch WVGA, 13MP camera, Android GMS, Extended battery, hot swap, SCP prelicensed, EU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PERK
EDA61K,A-NUM,LAN,3,32,N6703,C,GMS,LS,ROW
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PERK
EDA61K,A-NUM,LAN,3,32,N6703,C,GMS,LS,ROW
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PEUK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch WVGA, 13MP camera, Android GMS, Extended battery, hot swap, SCP prelicensed, US
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PEUK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch WVGA, 13MP camera, Android GMS, Extended battery, hot swap, SCP prelicensed, US
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGAK
EDA61K,A-NUM,LAN,3,32,N6703,C,GMS,LD,AU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGAK
EDA61K,A-NUM,LAN,3,32,N6703,C,GMS,LD,AU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGOK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch  WVGA, 13MP camera, Android GMS, Extended battery, hot swap, DCP preloaded, EU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGOK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch  WVGA, 13MP camera, Android GMS, Extended battery, hot swap, DCP preloaded, EU
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGRK
EDA61K-0,A-NUMLAN,3,32,N6703,C,GMS,LDROW
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGRK
EDA61K-0,A-NUMLAN,3,32,N6703,C,GMS,LDROW
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGUK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch  WVGA, 13MP camera, Android GMS, Extended battery, hot swap, DCP preloaded, US
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0AC934PGUK
EDA61K, Alpha-numeric Keypad, WLAN, 3G32G, N6703 scan engine, 4 inch  WVGA, 13MP camera, Android GMS, Extended battery, hot swap, DCP preloaded, US
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0ACE34PERK
EDA61K,ANUM,LAN,3,32,S0703VE,C,GMS,LSROW
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
EDA61K-0ACE34PERK
EDA61K,ANUM,LAN,3,32,S0703VE,C,GMS,LSROW
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-eda61k-mobile-computer
Feedback
