Handheld Computers

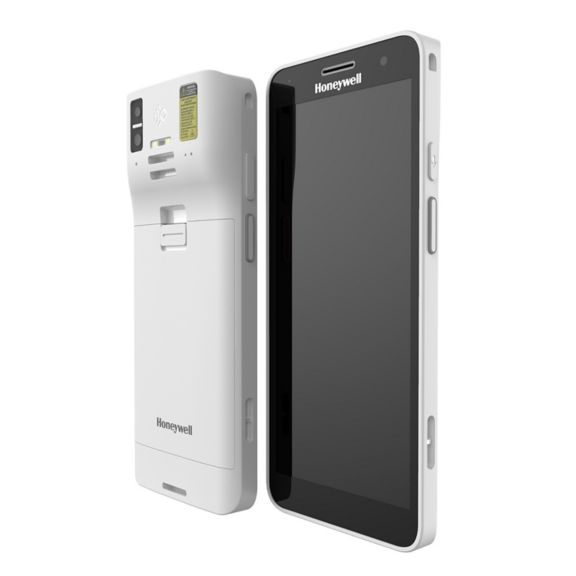

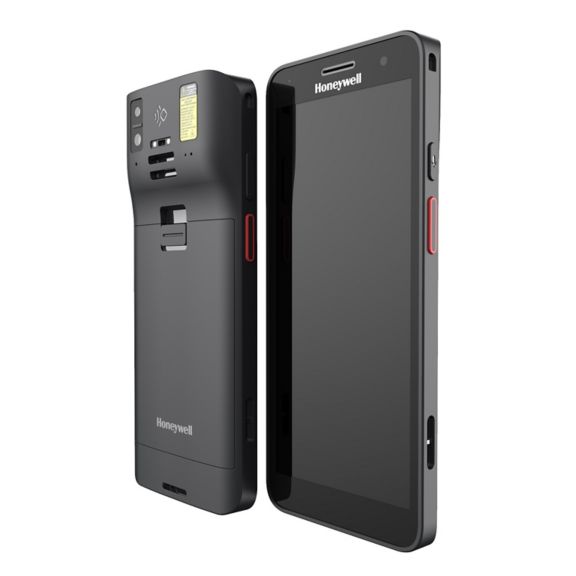

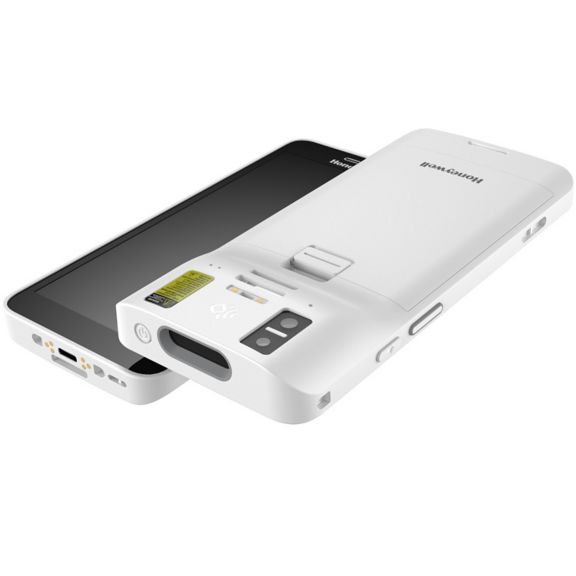

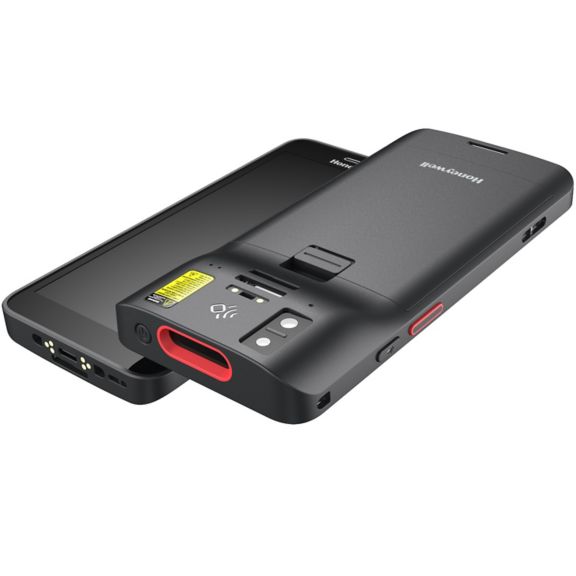

CT37 Handheld Computer
The CT37 mobile computer features a consumer phone experience with enterprise-class durability, manageability, support and lifecycle.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Features
- Application
- Retail, Transportation & Logistics, Field Operations and Healthcare
- Housing Grade
- Disinfectant Ready Housing
- For Use With
- Android
- Features

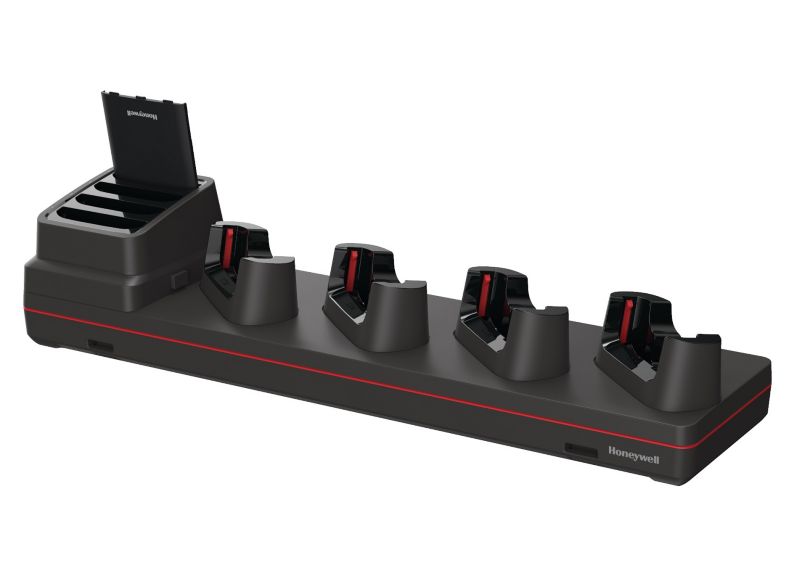

- Compatible with Universal Dock
- Camera
- 13-megapixel color rear camera
- 8-megapixel color front camera
- Camera Position
- Rear and Front
Dimensions
- Overall Dimensions
- 167.4 mm x 76.0mm x 12.6mm (6.6 in x 3.0 in x 0.5 in)
Scanning Specifications
- Decode Capability
- Honeywell FlexRange™ XLR S0803
- Standard Range Engine S0703 (1D/2D barcode symbologies)
Network
- WWAN Specifications
- 4G-LTE DL CAT-18: ~800 Mbps
- 4G-LTE UL CAT-15: ~200 Mbps
- 5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79
- 5G NSA-DL: ~2500 Mbps, UL: ~1050 Mbps
- 5G SA-DL: ~2300 Mbps, UL: ~1050 Mbps
- AT&T FirstNet Compliant
- Global bands support, device certified with GCF-PTCRB, ATT, TMO, VZW
- LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48, 66, 71
- WLAN Specifications
- Data rates: 2.4GHz: 802.11b/g/ax – 20MHz up to 286.8Mbps; 5GHz: 802.1/n/ac/ax -20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps; 802.11ax- 20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps.
- IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Triband (2.4GHz, 5GHz, 6GHz); Wi-Fi 6E (801.11ax); Dual Band Simultaneous (DBS); IPv4, IPv6
- Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible.
- WLAN Security: Enhanced open (OWE), WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
- Wi-Fi certified; Wi-Fi 6E certified.
- RFID Specifications
- Integrated NFC reader, compliant with ISO/IEC 1443A, ISO/IEC 1443 B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F), Contactless payment support, ECP 1.0 and ECP 2.0.
- GPS Specifications
- GPS, GLONASS, Galileo, Beidou, QZSS, NavIC, Dual band GNSS-Concurrent L1/G1/E1/B1 with L5/E5a/BDSB2a, a-GPS, Supports XTRA
- Computer Wireless Communication
- 5G , WiFi 6E, BT5.3, NFC
- Bluetooth Specifications
- V5.3 Bluetooth and BLE; 2nd BLE
Software & Firmware
- Operating System
- Each Android version guaranteed from Android 14 to 18, subject to technical feasibility confirmed by Qualcomm
- Platform
- Mobility Edge
- Operating System Type
- Android
Memory & Data
- Memory
- 8GB DDR5 RAM, 128GB UFS 3.1 Flash
Hardware
- Scan Engine Type
- Laser aimer
- Scan Engine Range
- Standard Range and FlexRange
- Scan Engine Model
- Honeywell S0703 Slim Imager ; Honeywell FlexRange™ XLR S0803
- Processor
- Qualcomm QCS4490 or QCM4490 octa-core, up to 2.4GHz
- Display Size
- Gorilla Glass™ Victus™ , 6-inch
- Display Resolution
- Full High-Definition (2280 x 1080)
Electrical
- Battery Types
- Hot-swappable
- Replaceable
- Battery Type
- Li-ion
- Battery Capacity
- 3846mAh and 5550mAh
Environmental
- Storage Temperature Range
- -30° to 70°C (-22°F to 158°F)
- Operating Temperature
- -10° to 50°C (14°F to 122°F)
- Operating Humidity
- 5% to 95% (non-condensing)
Standards & Approvals
- Tumble Specifications
- 750, 0.5m (1.6 ft) tumbles
- 750, 1.0m (3.3 ft) tumbles with protective boot
- Protection Ratings
- IP68/IP65
- Drop Specifications
- Multiple 1.5m (5ft) drops to concrete at operating temperature per MIL-STD 810H
- Multiple 1.8m (6ft) drops to concrete at operating temperature wtih boot per MIL-STD 810H
Service Terms
- Warranty Duration
- 1 year
Others
- Scan Distance
- Mid Range (0-5m)
- No Scanner
- Standard Range (0-1m)
- Keypad
- Full Touchscreen
- Environment
- Healthcare
- Standard
- Connectivity
- Wi-Fi
Features
- Application
- Retail, Transportation & Logistics, Field Operations and Healthcare
- Housing Grade
- Disinfectant Ready Housing
- For Use With
- Android
- Features
- Compatible with Universal Dock
- Camera
- 13-megapixel color rear camera
- 8-megapixel color front camera
- Camera Position
- Rear and Front
Dimensions
- Overall Dimensions
- 167.4 mm x 76.0mm x 12.6mm (6.6 in x 3.0 in x 0.5 in)
Scanning Specifications
- Decode Capability
- Honeywell FlexRange™ XLR S0803
- Standard Range Engine S0703 (1D/2D barcode symbologies)
Network
- WWAN Specifications
- 4G-LTE DL CAT-18: ~800 Mbps
- 4G-LTE UL CAT-15: ~200 Mbps
- 5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79
- 5G NSA-DL: ~2500 Mbps, UL: ~1050 Mbps
- 5G SA-DL: ~2300 Mbps, UL: ~1050 Mbps
- AT&T FirstNet Compliant
- Global bands support, device certified with GCF-PTCRB, ATT, TMO, VZW
- LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48, 66, 71
- WLAN Specifications
- Data rates: 2.4GHz: 802.11b/g/ax – 20MHz up to 286.8Mbps; 5GHz: 802.1/n/ac/ax -20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps; 802.11ax- 20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps.
- IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Triband (2.4GHz, 5GHz, 6GHz); Wi-Fi 6E (801.11ax); Dual Band Simultaneous (DBS); IPv4, IPv6
- Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible.
- WLAN Security: Enhanced open (OWE), WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
- Wi-Fi certified; Wi-Fi 6E certified.
- RFID Specifications
- Integrated NFC reader, compliant with ISO/IEC 1443A, ISO/IEC 1443 B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F), Contactless payment support, ECP 1.0 and ECP 2.0.
- GPS Specifications
- GPS, GLONASS, Galileo, Beidou, QZSS, NavIC, Dual band GNSS-Concurrent L1/G1/E1/B1 with L5/E5a/BDSB2a, a-GPS, Supports XTRA
- Computer Wireless Communication
- 5G , WiFi 6E, BT5.3, NFC
- Bluetooth Specifications
- V5.3 Bluetooth and BLE; 2nd BLE
Software & Firmware
- Operating System
- Each Android version guaranteed from Android 14 to 18, subject to technical feasibility confirmed by Qualcomm
- Platform
- Mobility Edge
- Operating System Type
- Android
Memory & Data
- Memory
- 8GB DDR5 RAM, 128GB UFS 3.1 Flash
Hardware
- Scan Engine Type
- Laser aimer
- Scan Engine Range
- Standard Range and FlexRange
- Scan Engine Model
- Honeywell S0703 Slim Imager ; Honeywell FlexRange™ XLR S0803
- Processor
- Qualcomm QCS4490 or QCM4490 octa-core, up to 2.4GHz
- Display Size
- Gorilla Glass™ Victus™ , 6-inch
- Display Resolution
- Full High-Definition (2280 x 1080)
Electrical
- Battery Types
- Hot-swappable
- Replaceable
- Battery Type
- Li-ion
- Battery Capacity
- 3846mAh and 5550mAh
Environmental
- Storage Temperature Range
- -30° to 70°C (-22°F to 158°F)
- Operating Temperature
- -10° to 50°C (14°F to 122°F)
- Operating Humidity
- 5% to 95% (non-condensing)
Standards & Approvals
- Tumble Specifications
- 750, 0.5m (1.6 ft) tumbles
- 750, 1.0m (3.3 ft) tumbles with protective boot
- Protection Ratings
- IP68/IP65
- Drop Specifications
- Multiple 1.5m (5ft) drops to concrete at operating temperature per MIL-STD 810H
- Multiple 1.8m (6ft) drops to concrete at operating temperature wtih boot per MIL-STD 810H
Service Terms
- Warranty Duration
- 1 year
Others
- Scan Distance
- Mid Range (0-5m)
- No Scanner
- Standard Range (0-1m)
- Keypad
- Full Touchscreen
- Environment
- Healthcare
- Standard
- Connectivity
- Wi-Fi
- Application : Retail, Transportation & Logistics, Field Operations and Healthcare
- Housing Grade : Disinfectant Ready Housing
- For Use With : Android
- Features : Compatible with Universal Dock
- Camera : 13-megapixel color rear camera|8-megapixel color front camera
- Overall Dimensions : 167.4 mm x 76.0mm x 12.6mm (6.6 in x 3.0 in x 0.5 in)
- Decode Capability : Honeywell FlexRange™ XLR S0803|Standard Range Engine S0703 (1D/2D barcode symbologies)
- WWAN Specifications : 4G-LTE DL CAT-18: ~800 Mbps|4G-LTE UL CAT-15: ~200 Mbps|5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79|5G NSA-DL: ~2500 Mbps, UL: ~1050 Mbps|5G SA-DL: ~2300 Mbps, UL: ~1050 Mbps|AT&T FirstNet Compliant|Global bands support, device certified with GCF-PTCRB, ATT, TMO, VZW|LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48, 66, 71
- WLAN Specifications : Data rates: 2.4GHz: 802.11b/g/ax – 20MHz up to 286.8Mbps; 5GHz: 802.1/n/ac/ax -20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps; 802.11ax- 20MHz, 40MHz, 80MHz, 160MHz up to 2882Mbps.|IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Triband (2.4GHz, 5GHz, 6GHz); Wi-Fi 6E (801.11ax); Dual Band Simultaneous (DBS); IPv4, IPv6|Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible.|WLAN Security: Enhanced open (OWE), WEP, WPA/WPA2/WPA3 (Personal and Enterprise)|Wi-Fi certified; Wi-Fi 6E certified.
- RFID Specifications : Integrated NFC reader, compliant with ISO/IEC 1443A, ISO/IEC 1443 B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F), Contactless payment support, ECP 1.0 and ECP 2.0.
- GPS Specifications : GPS, GLONASS, Galileo, Beidou, QZSS, NavIC, Dual band GNSS-Concurrent L1/G1/E1/B1 with L5/E5a/BDSB2a, a-GPS, Supports XTRA
- Computer Wireless Communication : 5G , WiFi 6E, BT5.3, NFC
- Bluetooth Specifications : V5.3 Bluetooth and BLE; 2nd BLE
- Operating System : Each Android version guaranteed from Android 14 to 18, subject to technical feasibility confirmed by Qualcomm
- Memory : 8GB DDR5 RAM, 128GB UFS 3.1 Flash
- Scan Engine Type : Laser aimer
- Scan Engine Range : Standard Range and FlexRange
- Scan Engine Model : Honeywell S0703 Slim Imager ; Honeywell FlexRange™ XLR S0803
- Processor : Qualcomm QCS4490 or QCM4490 octa-core, up to 2.4GHz
- Display Size : Gorilla Glass™ Victus™ , 6-inch
- Display Resolution : Full High-Definition (2280 x 1080)
- Battery Types : Hot-swappable|Replaceable
- Battery Type : Li-ion
- Battery Capacity : 3846mAh and 5550mAh
- Storage Temperature Range : -30° to 70°C (-22°F to 158°F)
- Operating Temperature : -10° to 50°C (14°F to 122°F)
- Operating Humidity : 5% to 95% (non-condensing)
- Tumble Specifications : 750, 0.5m (1.6 ft) tumbles|750, 1.0m (3.3 ft) tumbles with protective boot
- Protection Ratings : IP68/IP65
- Drop Specifications : Multiple 1.5m (5ft) drops to concrete at operating temperature per MIL-STD 810H|Multiple 1.8m (6ft) drops to concrete at operating temperature wtih boot per MIL-STD 810H
- Warranty Duration : 1 year
- Scan Distance : Mid Range (0-5m)|No Scanner|Standard Range (0-1m)
- Platform : Mobility Edge
- Operating System Type : Android
- Keypad : Full Touchscreen
- Environment : Healthcare|Standard
- Connectivity : Wi-Fi
- Camera Position : Rear and Front
