    general purpose handheld

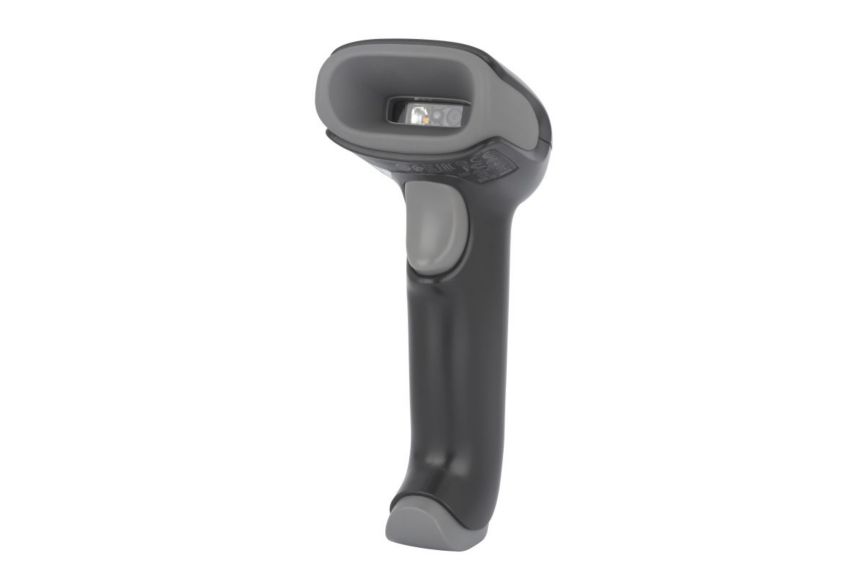

    Voyager™ XP 1472g General Duty Scanner

    The Voyager™ Extreme Performance (XP) 1470g scanner delivers accurate and reliable scanning capability on traditional barcodes and digital screens and wireless flexibility.

    Overview
    Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager™ Extreme Performance (XP) 1472g cordless scanner delivers reliable scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.
    The Voyager XP 1472g delivers precise decoding performance, even with poor and damaged barcodes, making it an ideal choice for workflows that involve 1D and 2D barcode reading and require a robust and reliable solution. The scanner’s extended scan distance will reach right to the bottom of the cart without bending and wasted time at the checkout.
    Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), the Voyager XP 1472g scanner is built to work with low cost of repair or downtime even in a harsh environment.
    The Voyager XP 1472g offers 100m Bluetooth range under Bluetooth 4.2 mode for secure data transmission and premium workflow flexibility. Voyager XP 1472g provides full shift battery performance with up to 100,000 scans per charge. This enables workers to operate on-the-move and frees them from the need to frequently return the scanner to its base.

    Specifications

    Features

    • Connectivity
      • Bluetooth
    • Form Factor
      • Gun Shape
    • Application
      • Point of Sale
      • Retail
    • Features
      • Honeywell Scanner Management Utility (SMU)

    Dimensions

    • Overall Dimensions
      • 2.4 x 6.8 x 3.2 in
      • 6.2 x 17.3 x 8.2 cm

    Scanning Specifications

    • Skew
      • 70
    • Decode Capability
      • 1D/2D
    • Motion Tolerance
      • 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
    • Number of Scans
      • 50000
    • Scanning Range
      • Standard range (SR)
    • Depth of Field
      • 0.2 - 15.8 in
    • Scan Distance
      • Standard Range (0-1m)
    • Scan Pattern
      • Area Image
    • Brightness
      • 0 - 100000 lux
    • Pitch
      • 65

    Network

    • Bluetooth Specifications
      • v4.2
    • Bluetooth
      • Yes

    Hardware

    • Host System Interface
      • KBW
      • RS-232
      • USB
    • Power Connector Type
      • Cordless
    • Aimer Type
      • LED
    • Wireless
      • Yes
    • Charging
      • Contact Charging

    Electrical

    • Battery Type
      • Li-ion Battery

    Environmental

    • Minimum Operating Temperature
      • 41 °F
      • 5 °C
    • Storage Temperature Range
      • - 20 - 35 °C
      • - 4 - 95 °F
    • Operating Temperature
      • 41 - 104 °F
      • 5 - 40 °C
    • Operating Humidity
      • 0 - 95 %

    Standards & Approvals

    • Tumble Specifications
      • 1,000 0.5 m (1.6 ft) tumbles
    • Drop Specifications
      • 30 1.8 m (6 ft) drops to concrete
    • Protection Ratings
      • IP52
    • IP Rating
      • IP52

    Service Terms

    • Warranty Duration
      • 3 yr

    ERP

    • Brand
      • Honeywell

    Others

    • Industry
      • Government & Public Sector
      • Manufacturing
      • Retail

    Features

    • Connectivity
      • Bluetooth
    • Form Factor
      • Gun Shape
    • Application
      • Point of Sale
      • Retail
    • Features
      • Honeywell Scanner Management Utility (SMU)

    Dimensions

    • Overall Dimensions
      • 2.4 x 6.8 x 3.2 in
      • 6.2 x 17.3 x 8.2 cm

    Scanning Specifications

    • Skew
      • 70
    • Decode Capability
      • 1D/2D
    • Motion Tolerance
      • 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
    • Number of Scans
      • 50000
    • Scanning Range
      • Standard range (SR)
    • Depth of Field
      • 0.2 - 15.8 in
    • Scan Distance
      • Standard Range (0-1m)
    • Scan Pattern
      • Area Image
    • Brightness
      • 0 - 100000 lux
    • Pitch
      • 65

    Network

    • Bluetooth Specifications
      • v4.2
    • Bluetooth
      • Yes

    Hardware

    • Host System Interface
      • KBW
      • RS-232
      • USB
    • Power Connector Type
      • Cordless
    • Aimer Type
      • LED
    • Wireless
      • Yes
    • Charging
      • Contact Charging

    Electrical

    • Battery Type
      • Li-ion Battery

    Environmental

    • Minimum Operating Temperature
      • 41 °F
      • 5 °C
    • Storage Temperature Range
      • - 20 - 35 °C
      • - 4 - 95 °F
    • Operating Temperature
      • 41 - 104 °F
      • 5 - 40 °C
    • Operating Humidity
      • 0 - 95 %

    Standards & Approvals

    • Tumble Specifications
      • 1,000 0.5 m (1.6 ft) tumbles
    • Drop Specifications
      • 30 1.8 m (6 ft) drops to concrete
    • Protection Ratings
      • IP52
    • IP Rating
      • IP52

    Service Terms

    • Warranty Duration
      • 3 yr

    ERP

    • Brand
      • Honeywell

    Others

    • Industry
      • Government & Public Sector
      • Manufacturing
      • Retail
    • Connectivity : Bluetooth
    • Form Factor : Gun Shape
    • Application : Point of Sale|Retail
    • Features : Honeywell Scanner Management Utility (SMU)
    • Overall Dimensions : 2.4 x 6.8 x 3.2 in|6.2 x 17.3 x 8.2 cm
    • Skew : 70
    • Decode Capability : 1D/2D
    • Motion Tolerance : 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
    • Number of Scans : 50000
    • Scanning Range : Standard range (SR)
    • Depth of Field : 0.2 - 15.8 in
    • Scan Distance : Standard Range (0-1m)
    • Scan Pattern : Area Image
    • Brightness : 0 - 100000 lux
    • Pitch : 65
    • Bluetooth Specifications : v4.2
    • Bluetooth : Yes
    • Host System Interface : KBW|RS-232|USB
    • Power Connector Type : Cordless
    • Aimer Type : LED
    • Wireless : Yes
    • Charging : Contact Charging
    • Battery Type : Li-ion Battery
    • Minimum Operating Temperature : 41 °F|5 °C
    • Storage Temperature Range : - 20 - 35 °C|- 4 - 95 °F
    • Operating Temperature : 41 - 104 °F|5 - 40 °C
    • Operating Humidity : 0 - 95 %
    • Tumble Specifications : 1,000 0.5 m (1.6 ft) tumbles
    • Drop Specifications : 30 1.8 m (6 ft) drops to concrete
    • Protection Ratings : IP52
    • IP Rating : IP52
    • Warranty Duration : 3 yr
    • Brand : Honeywell
    • Industry : Government & Public Sector|Manufacturing|Retail
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Voyager XP 1472g Datasheet
    application/pdf 116.84 KB
    8/5/2025
    116.84 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Voyager 147Xg 2D Scanner Accessories Guide
    application/pdf 386.86 KB
    5/28/2024
    386.86 KB
    Open Source Licensing Information: Xenon XP, Granit XP, Voyager XP, 8690i, 8680i (SCAN-EN-OSL-01 Rev A)
    application/pdf 385.71 KB
    7/14/2021
    385.71 KB
    Quick Start Guide: Access Point (ACC-PT-QS Rev E)
    application/pdf 654.1 KB
    3/15/2024
    654.1 KB
    User Guide: Voyager 147X Series - English (VG147X-UG-01 Rev L)
    application/pdf 4.45 MB
    6/19/2025
    4.45 MB
    Quick Start Guide: Voyager XP 1472g (VG1472-EN-QS-01 Rev B)
    application/pdf 595.46 KB
    10/2/2024
    595.46 KB
    User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev B)
    application/pdf 1.17 MB
    10/14/2025
    1.17 MB
    Honeywell OCR Programming User Guide (OCR-UG Rev B)
    application/pdf 171.01 KB
    4/18/2025
    171.01 KB
    Multi-Bay Battery Charger MB4-BAT-SCN01 Installation Guide (MBC-INST Rev D)
    application/pdf 84.99 KB
    7/14/2021
    84.99 KB
    Regulatory Information
    Name
    Description
    File Size
    Date
    Size
    Battery Insert: BAT-SCN01 (BAT-SCN01-INSERT-2 Rev A)
    application/pdf 484.51 KB
    12/15/2025
    484.51 KB
    Regulatory Sheet: Voyager XP 1472g (1472-ML-RS-02 Rev B)
    application/pdf 1.62 MB
    10/4/2022
    1.62 MB
    Regulatory Sheet: Multi-Bay Battery Charger MB4-BAT-SCN01 (RegSht-MBC-04 Rev A)
    application/pdf 648.33 KB
    2/11/2026
    648.33 KB
    Regulatory Sheet: CCB01-010BT/CCB01-010BT-BF (CCB01-MULT-RS-07 Rev B)
    application/pdf 1.38 MB
    1/15/2025
    1.38 MB
    White Paper
    Name
    Description
    File Size
    Date
    Size
    White Paper - Battery Maintenance for Portable Devices - English
    application/pdf 332.35 KB
    10/22/2025
    332.35 KB
    Name
    Description
    File Size
    Date
    Size
    Voyager 147Xg 2D Scanner Accessories Guide
    application/pdf 386.86 KB
    5/28/2024
    386.86 KB
    Open Source Licensing Information: Xenon XP, Granit XP, Voyager XP, 8690i, 8680i (SCAN-EN-OSL-01 Rev A)
    application/pdf 385.71 KB
    7/14/2021
    385.71 KB
    White Paper - Battery Maintenance for Portable Devices - English
    application/pdf 332.35 KB
    10/22/2025
    332.35 KB
    Quick Start Guide: Access Point (ACC-PT-QS Rev E)
    application/pdf 654.1 KB
    3/15/2024
    654.1 KB
    Voyager XP 1472g Datasheet
    application/pdf 116.84 KB
    8/5/2025
    116.84 KB
    User Guide: Voyager 147X Series - English (VG147X-UG-01 Rev L)
    application/pdf 4.45 MB
    6/19/2025
    4.45 MB
    Quick Start Guide: Voyager XP 1472g (VG1472-EN-QS-01 Rev B)
    application/pdf 595.46 KB
    10/2/2024
    595.46 KB
    Battery Insert: BAT-SCN01 (BAT-SCN01-INSERT-2 Rev A)
    application/pdf 484.51 KB
    12/15/2025
    484.51 KB
    User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev B)
    application/pdf 1.17 MB
    10/14/2025
    1.17 MB
    Honeywell OCR Programming User Guide (OCR-UG Rev B)
    application/pdf 171.01 KB
    4/18/2025
    171.01 KB
    Regulatory Sheet: Voyager XP 1472g (1472-ML-RS-02 Rev B)
    application/pdf 1.62 MB
    10/4/2022
    1.62 MB
    Regulatory Sheet: Multi-Bay Battery Charger MB4-BAT-SCN01 (RegSht-MBC-04 Rev A)
    application/pdf 648.33 KB
    2/11/2026
    648.33 KB
    Regulatory Sheet: CCB01-010BT/CCB01-010BT-BF (CCB01-MULT-RS-07 Rev B)
    application/pdf 1.38 MB
    1/15/2025
    1.38 MB
    Multi-Bay Battery Charger MB4-BAT-SCN01 Installation Guide (MBC-INST Rev D)
    application/pdf 84.99 KB
    7/14/2021
    84.99 KB
    Name
    Description
    File Size
    Date
    Size
    Voyager XP 1472g Datasheet
    116.84 KB
    8/5/2025
    Voyager 147Xg 2D Scanner Accessories Guide
    386.86 KB
    5/28/2024
    Open Source Licensing Information: Xenon XP, Granit XP, Voyager XP, 8690i, 8680i (SCAN-EN-OSL-01 Rev A)
    385.71 KB
    7/14/2021
    Quick Start Guide: Access Point (ACC-PT-QS Rev E)
    654.1 KB
    3/15/2024
    User Guide: Voyager 147X Series - English (VG147X-UG-01 Rev L)
    4.45 MB
    6/19/2025
    Quick Start Guide: Voyager XP 1472g (VG1472-EN-QS-01 Rev B)
    595.46 KB
    10/2/2024
    User Guide: Network and Security for Honeywell Scanners (NS-SC-EN-SG-01 Rev B)
    1.17 MB
    10/14/2025
    Honeywell OCR Programming User Guide (OCR-UG Rev B)
    171.01 KB
    4/18/2025
    Multi-Bay Battery Charger MB4-BAT-SCN01 Installation Guide (MBC-INST Rev D)
    84.99 KB
    7/14/2021
    Battery Insert: BAT-SCN01 (BAT-SCN01-INSERT-2 Rev A)
    484.51 KB
    12/15/2025
    Regulatory Sheet: Voyager XP 1472g (1472-ML-RS-02 Rev B)
    1.62 MB
    10/4/2022
    Regulatory Sheet: Multi-Bay Battery Charger MB4-BAT-SCN01 (RegSht-MBC-04 Rev A)
    648.33 KB
    2/11/2026
    Regulatory Sheet: CCB01-010BT/CCB01-010BT-BF (CCB01-MULT-RS-07 Rev B)
    1.38 MB
    1/15/2025
    White Paper - Battery Maintenance for Portable Devices - English
    332.35 KB
    10/22/2025
