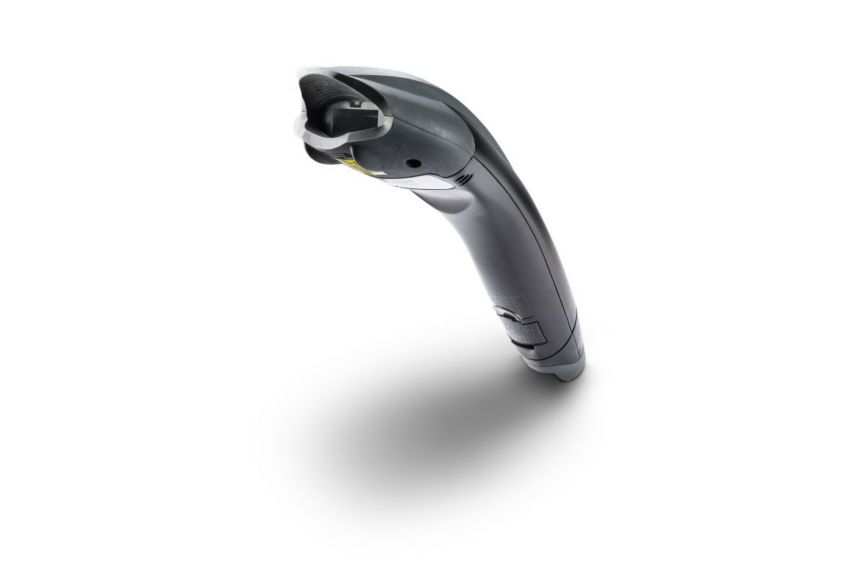

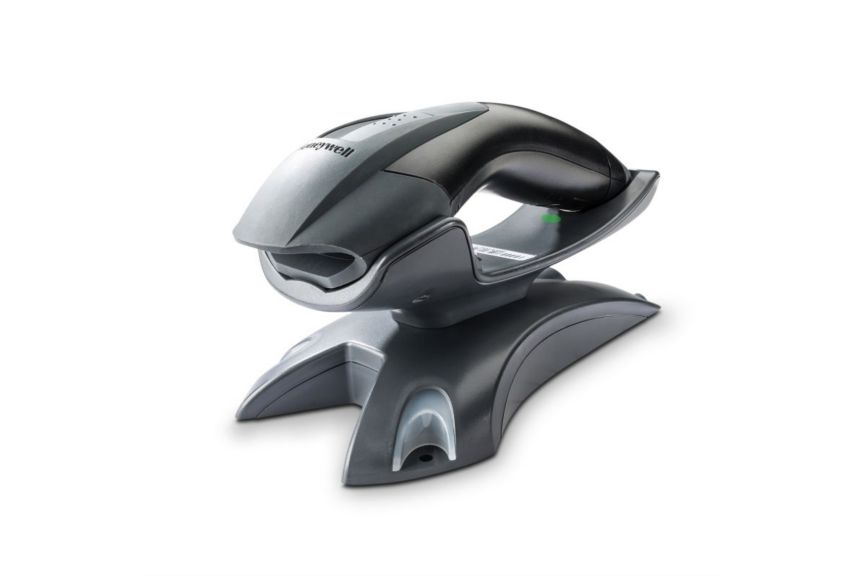

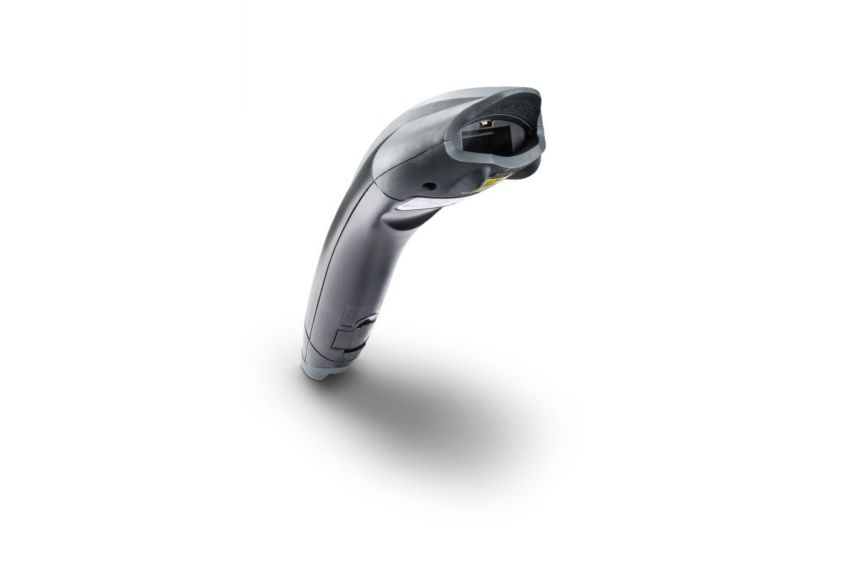

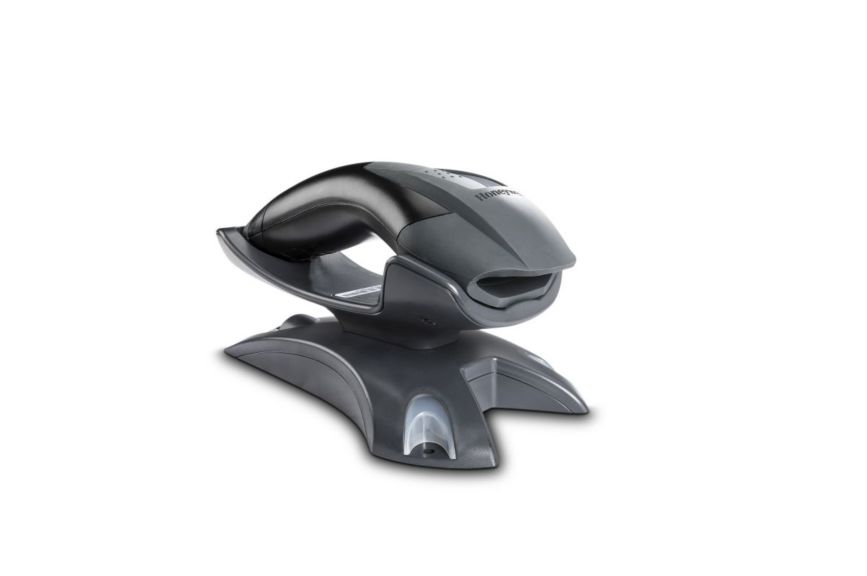

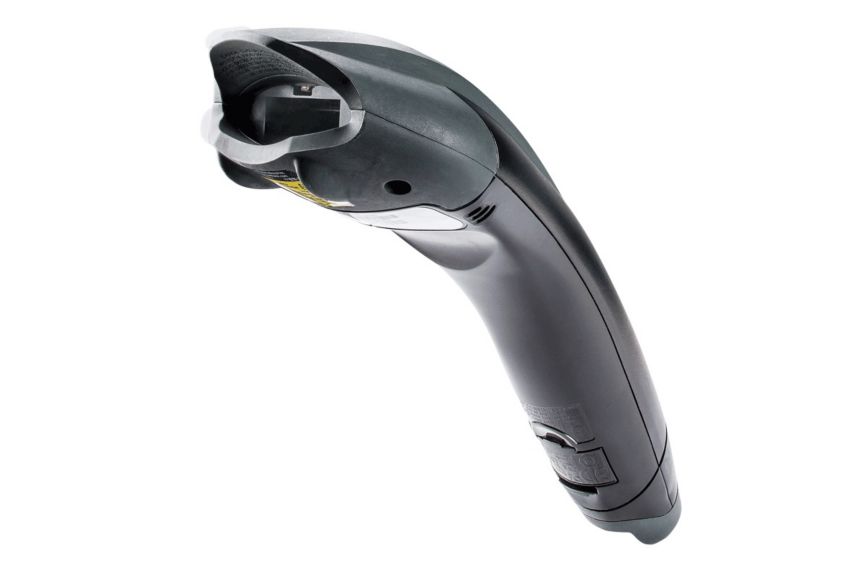

    Voyager 1202g General Duty Scanner

    Voyager 1202g General Duty Scanner

    Overview

    Voyager™: 1202g (wireless) laser barcode scanners are built on the world’:s best-selling single-line laser scanner platform. They aggressively scan virtually all linear barcodes. And they do an exceptional job of reading poor quality and even damaged barcodes.

    • Long Battery Life and Tool-Free Battery Removal: The user-preferred Lithium ion battery provides 12 hours or more of use, depending on scanning volume, and the field-replaceable battery can be exchanged quickly and easily, without the use of tools.
    • Remote MasterMind™: Ready: Reduces total cost of ownership by providing a turnkey remote device man-agement solution that easily manages and tracks usage of installed devices.
    • Paging Functionality: Simply press the button on the base to locate your lost scanner: Voyager 1202g responds with a series of beeps and blinking lights on its indicator panel.
    • Excellent Poor Quality Code Reading:Increases throughput and reduces the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or smudged.
    • Automatic Interface Configuration: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with auto-matic interface detection and configuration.
    • Bluetooth®:WirelessTechnology: Facilitates scanning of all standard 1D bar codes 10 meters (33 feet) or more away from the base, depending on the user’:s environment.

    The Voyager 1202g (wireless) barcode scanners give you able-bodied performance and flexibility for a wide variety of hands-free and handheld scanning applications. Regardless of the model you choose, these Voyager scanners deliver aggressive scan performance on virtually all linear barcodes.Decode poorly printed, smudged, faded and other difficult-to-read barcodes with ease. Scan high-density barcodes, too, with resolution down to 3.5 mil. In most cases, that eliminates the need to purchase specialty scanners. And take advantage of the Voyager scanner’:s class-leading, hands-free presentation scanning. It maximizes throughput with updated object detection and automatic in-stand detection and configuration.We designed these Voyager scanners to decrease your downtime and service costs too. Single shock-mounted PCB delivers greater impact resistance. Recessed button is protected by an integrated rubber co-mold that minimizes the impact of accidental drops. Designed with a protected, scratch-resistant glass window and an IP42-rating. The Voyager 1202g wireless model incorporates a Bluetooth®: Class 2 radio. You’:ll have unrestricted movement up to 10 m (33 ft) from the base, and up to 30 m (100 ft) with a clear line-of-sight between scanner and base.And if you ever misplace a scanner, the Voyager’:s paging system uses visual and auditory signals to help you find the missing device quickly.

    Specifications

    Features

    • Features
      • CodeGate™ Technology
      • Object Detection

    Dimensions

    • Overall Dimensions
      • 18 x 6.6 x 9.2 cm
      • 7.1 x 2.6 x 3.6 in

    Scanning Specifications

    • Decode Capability
      • 1D
    • Print Contrast
      • 10
    • Number of Scans
      • 45000
    • Scan Pattern
      • Single Scan Line
    • Depth of Field
      • 0 - 14.4 in
    • Brightness
      • 0 - 70000 lux
    • Scanning Range
      • Standard range (SR)
    • Skew
      • 70
    • Pitch
      • 60

    Network

    • Bluetooth
      • Yes
    • Bluetooth Specifications
      • v2.1

    Hardware

    • Wireless
      • Yes
    • Aimer Type
      • LED
    • Host System Interface
      • KBW
      • RS-232
      • RS-485
      • USB
    • Engine Type
      • 1D Laser

    Electrical

    • Battery Types
      • Super Capacitor

    Environmental

    • Storage Temperature Range
      • - 5 - 35 °C
      • 23 - 95 °F
    • Operating Humidity
      • 0 - 95 %

    Standards & Approvals

    • Drop Specifications
      • 30 1.5 m (5ft) drops to concrete
    • Protection Ratings
      • IP41

    Others

    • Form Factor
      • Curved
    • Operating temperature
      • 41 - 104 °F
      • 5 - 40 °C
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Cordless

    Features

    • Features
      • CodeGate™ Technology
      • Object Detection

    Dimensions

    • Overall Dimensions
      • 18 x 6.6 x 9.2 cm
      • 7.1 x 2.6 x 3.6 in

    Scanning Specifications

    • Decode Capability
      • 1D
    • Print Contrast
      • 10
    • Number of Scans
      • 45000
    • Scan Pattern
      • Single Scan Line
    • Depth of Field
      • 0 - 14.4 in
    • Brightness
      • 0 - 70000 lux
    • Scanning Range
      • Standard range (SR)
    • Skew
      • 70
    • Pitch
      • 60

    Network

    • Bluetooth
      • Yes
    • Bluetooth Specifications
      • v2.1

    Hardware

    • Wireless
      • Yes
    • Aimer Type
      • LED
    • Host System Interface
      • KBW
      • RS-232
      • RS-485
      • USB
    • Engine Type
      • 1D Laser

    Electrical

    • Battery Types
      • Super Capacitor

    Environmental

    • Storage Temperature Range
      • - 5 - 35 °C
      • 23 - 95 °F
    • Operating Humidity
      • 0 - 95 %

    Standards & Approvals

    • Drop Specifications
      • 30 1.5 m (5ft) drops to concrete
    • Protection Ratings
      • IP41

    Others

    • Form Factor
      • Curved
    • Operating temperature
      • 41 - 104 °F
      • 5 - 40 °C
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Cordless
    • Features : CodeGate™ Technology|Object Detection
    • Form Factor : Curved
    • Overall Dimensions : 18 x 6.6 x 9.2 cm|7.1 x 2.6 x 3.6 in
    • Decode Capability : 1D
    • Print Contrast : 10
    • Number of Scans : 45000
    • Scan Pattern : Single Scan Line
    • Depth of Field : 0 - 14.4 in
    • Brightness : 0 - 70000 lux
    • Scanning Range : Standard range (SR)
    • Skew : 70
    • Pitch : 60
    • Bluetooth : Yes
    • Bluetooth Specifications : v2.1
    • Wireless : Yes
    • Aimer Type : LED
    • Host System Interface : KBW|RS-232|RS-485|USB
    • Engine Type : 1D Laser
    • Battery Types : Super Capacitor
    • Storage Temperature Range : - 5 - 35 °C|23 - 95 °F
    • Operating temperature : 41 - 104 °F|5 - 40 °C
    • Operating Humidity : 0 - 95 %
    • Drop Specifications : 30 1.5 m (5ft) drops to concrete
    • Protection Ratings : IP41
    • Warranty Duration : 3 yr
    • Brand : Honeywell
    • Power Connector Type : Cordless
