    gas sensors

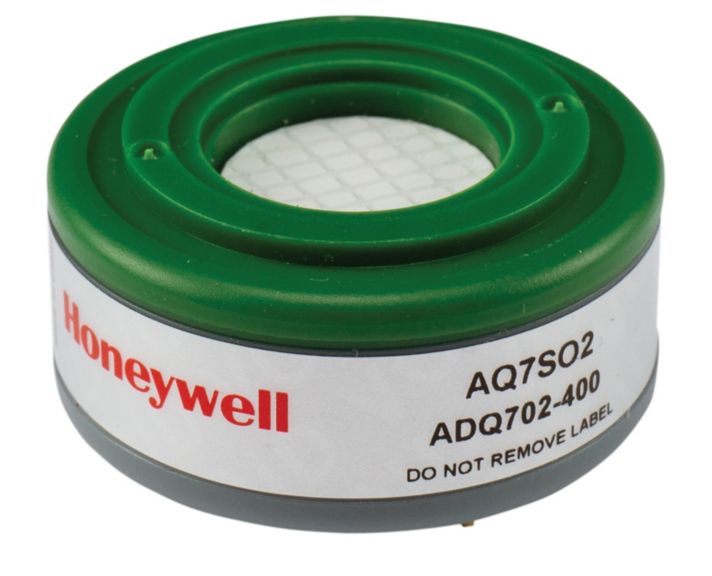

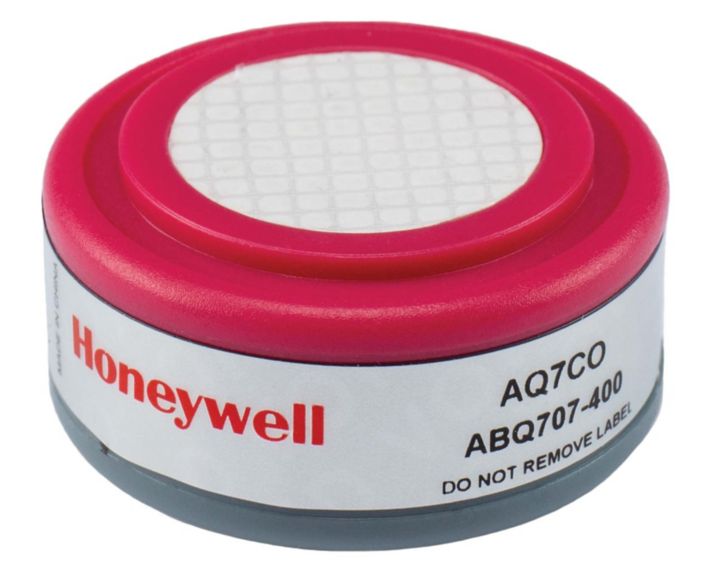

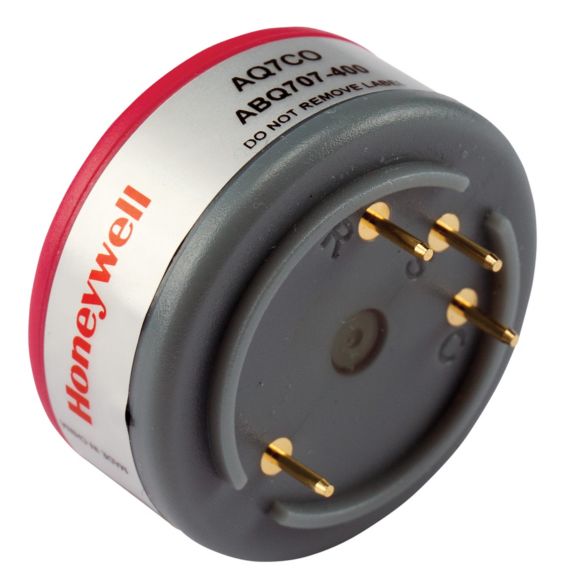

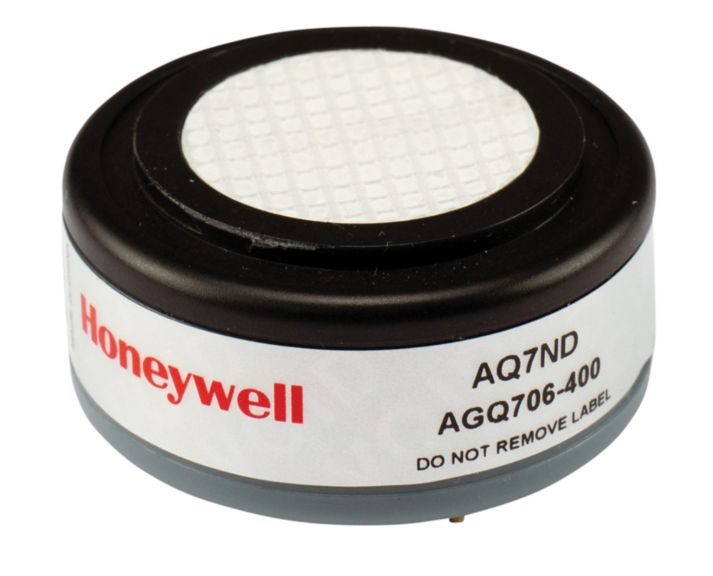

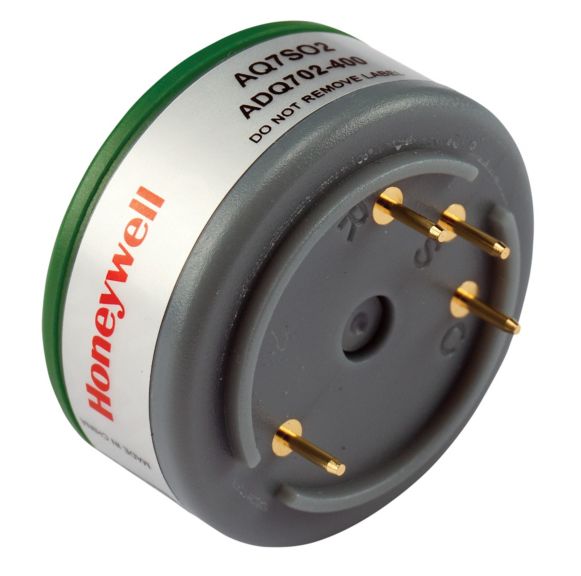

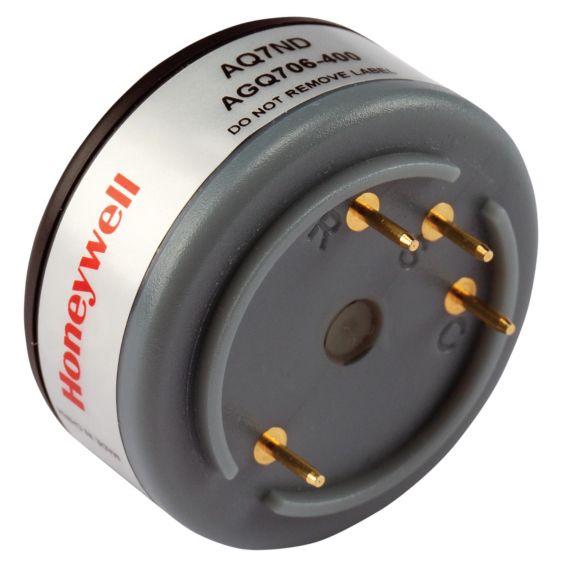

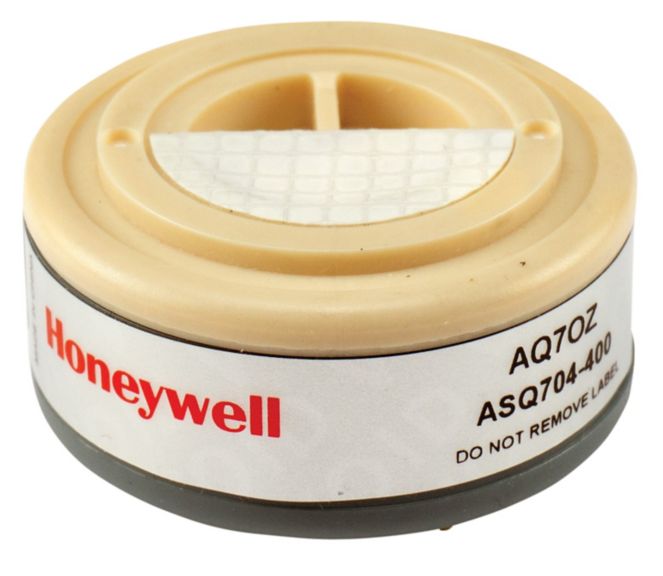

    AQ7 Series

    High resolution with a low detection limit. High correlation with control station. Individual compensation for temperature and cross sensitivity

    Overview
    Support Where To Buy Contact Us

    Honeywell has designed the AQ Series with algorithmic compensation that gives users very high resolution and long-term stability.

    These sensors are designed to be used in environmental applications with a variety of gases detected: Carbon Monoxide (CO), Nitrogen Dioxide (NO2), Ozone (O3), Sulfur Dioxide (SO2).

    AQ7 Series gas sensors are designed to be highly specific to the gas they are intended to measure, they will still respond to some degree to various other gases, achieving individual compensation for temperature and cross sensitivity.

    Specifications

    Features

    • Additional Filter
      • None
    • Series Name
      • AQ7
    • Operating Principle
      • 4-Electrode Electrochemical
    • Nominal Range
      • 0 to 1 ppm
    • Inboard Filter
      • None
    • Features & Benefits
      • High Correlation with Control Station
      • High Resolution
      • Independent NO2 Cross Compensation by Using 4th Electrode
      • Individual Compensation for Temperature and Cros Sensitivity
      • Low Detection Limit

    Overview

    • Warranty
      • 1 Year
    • Brand
      • Honeywell

    Operating Characteristics

    • Storage Temperature
      • 0 to 20°C
    • Operating Pressure Range
      • Atmospheric ± 10%
    • Operating Humidity Range
      • 15 to 90% RH (Non-Condensing)
    • Expected Operating Life
      • 2 Years in Air

    Technical Specifications

    • Sensor Type Used
      • 4-Electrode Electrochemical
    • Position Sensitivity
      • None
    • Long Term Sensitivity Drift
      • < 10% Signal Los per Annum
    • Gases Detected
      • Sulfur Dioxide (SO2)

    Applications & Compatibility

    • Recommended Load Resistor
      • 68 Ohm
    • Application
      • Ambient Environmental Monitoring

    Electrical Specifications

    • Power Supply
      • 5 VDC

    Material Specifications

    • Pin Material
      • Copper with Gold Coating
    • Casing material
      • ABS

    Dimensions & Weight

    • Dimensions
      • 31.5 mm x 31.5 mm x 19.8 mm

    Others

    • Industry
      • Energy

    Features

    • Additional Filter
      • None
    • Series Name
      • AQ7
    • Operating Principle
      • 4-Electrode Electrochemical
    • Nominal Range
      • 0 to 1 ppm
    • Inboard Filter
      • None
    • Features & Benefits
      • High Correlation with Control Station
      • High Resolution
      • Independent NO2 Cross Compensation by Using 4th Electrode
      • Individual Compensation for Temperature and Cros Sensitivity
      • Low Detection Limit

    Overview

    • Warranty
      • 1 Year
    • Brand
      • Honeywell

    Operating Characteristics

    • Storage Temperature
      • 0 to 20°C
    • Operating Pressure Range
      • Atmospheric ± 10%
    • Operating Humidity Range
      • 15 to 90% RH (Non-Condensing)
    • Expected Operating Life
      • 2 Years in Air

    Technical Specifications

    • Sensor Type Used
      • 4-Electrode Electrochemical
    • Position Sensitivity
      • None
    • Long Term Sensitivity Drift
      • < 10% Signal Los per Annum
    • Gases Detected
      • Sulfur Dioxide (SO2)

    Applications & Compatibility

    • Recommended Load Resistor
      • 68 Ohm
    • Application
      • Ambient Environmental Monitoring

    Electrical Specifications

    • Power Supply
      • 5 VDC

    Material Specifications

    • Pin Material
      • Copper with Gold Coating
    • Casing material
      • ABS

    Dimensions & Weight

    • Dimensions
      • 31.5 mm x 31.5 mm x 19.8 mm

    Others

    • Industry
      • Energy
    • Additional Filter : None
    • Warranty : 1 Year
    • Storage Temperature : 0 to 20°C
    • Series Name : AQ7
    • Sensor Type Used : 4-Electrode Electrochemical
    • Recommended Load Resistor : 68 Ohm
    • Power Supply : 5 VDC
    • Position Sensitivity : None
    • Pin Material : Copper with Gold Coating
    • Operating Principle : 4-Electrode Electrochemical
    • Operating Pressure Range : Atmospheric ± 10%
    • Operating Humidity Range : 15 to 90% RH (Non-Condensing)
    • Nominal Range : 0 to 1 ppm
    • Long Term Sensitivity Drift : < 10% Signal Los per Annum
    • Industry : Energy
    • Inboard Filter : None
    • Gases Detected : Sulfur Dioxide (SO2)
    • Features & Benefits : High Correlation with Control Station|High Resolution|Independent NO2 Cross Compensation by Using 4th Electrode|Individual Compensation for Temperature and Cros Sensitivity|Low Detection Limit
    • Expected Operating Life : 2 Years in Air
    • Dimensions : 31.5 mm x 31.5 mm x 19.8 mm
    • Casing material : ABS
    • Brand : Honeywell
    • Application : Ambient Environmental Monitoring
