Fixed Gas Detectors

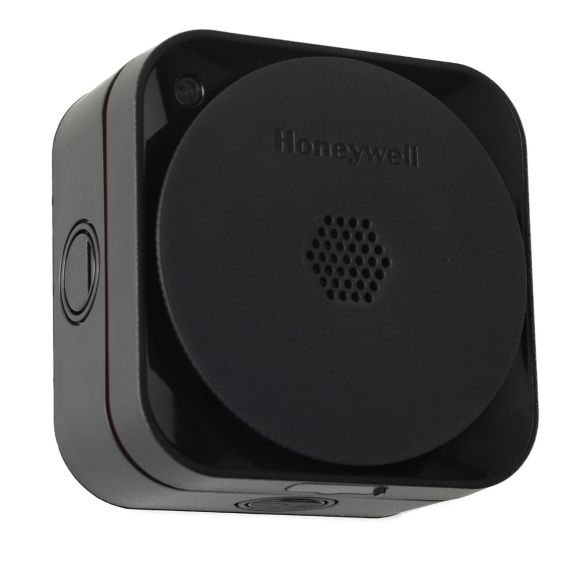

Sensepoint XCL (non BLE)
Compliance Aesthetic Gas Detector
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Sensepoint XCL without Bluetooth is a fixed point gas leak detector that is designed to meet the needs of commercial and light industrial applications.With over 50 years experience in gas leak detection, Honeywell offers a flexible range of highly-reliable sensing devices to meet those needs.• Quicker installation• Simple to operate• Straightforward to maintainEach Sensepoint XCL is supplied complete with a mounting back box, an M20 gland and quick start guide.Sensepoint XCL without Bluetooth comes with factory set alarm set-points and an industry-standard 4-20mA current source output making it suitable for integration into a wide range of control systems.Unlike the Sensepoint XCL Bluetooth version, it is not configurable with a mobile device but instead has internal controls to perform basic calibration and maintenance functions.
Specifications
Overview
- Brand
- Honeywell
Features
- Sub-Category
- Gas Detection Sensors & Transmitters
- Alarm Included
- Yes
- Display Readout
- LED Indicator
- Features & Benefits
- Choose from a Range of mA or Modbus Output Versions for Flexible System Design to Meet the Customers Requirements
- Gassing Port for Easier Bump Test of Units Installed in Inaccessible Locations. No Need to Purchase a Separate Accessory and Thus Saves Money
- Manage the Detector without Making a Physical Connection. Remove the Need for Physical Access to Hard-to-Reach Devices
- Multi-Color Visual Indicator to Stow Status Makes it Easier to Know the Detector Status Immediately and Identify Detectors that Require Attention or are Warning of Danger
- Optional Relay Output for External Control Systems or Alarming Devices Enables Easy Integration and Local Indication
- Selectable Source or Sink Current for Analog Output Enables One Detector to be Suitable for Both System Configurations
- Simplified Maintenance with Familiar Smartphone Technology Saves Money and Time
- The Ingress Protection of IP65 Allows Units to be Mounted in Wash Down Areas
- Visual Indicators
- Flashing Green and Yellow: Warning
- Flashing Red: Alarm
- Flashing Yellow: Fault
- Green: Normal
- Solid Yellow: Inhibited
Dimensions & Weight
- Weight range
- 500 g
- Dimension
- 113 mm x 113 mm x 59 mm
Technical Specifications
- Humidity Range
- 15 to 90% RH (Non-Condensing)
- Analog Outputs
- 0 to 22 mA
- Relay Output Configuration
- 2 x @24 V DC/240 V AC, 5A
- Maximum Pressure
- 110 kPa
- Measuring Range
- CO2 (% vol Range): 5.0% vol (Adjustable Between 1.0 and 5.0% vol)
- CO2 (ppm Range): 5,000 ppm (Adjustable between 1,000 and 5,000 ppm)
- CO: 300 ppm (Adjustable Between 50 and 1000 Ppm)
- Combustible: 0 to 100 % LEL (Factory Calibrated to Methane)
- H2: 1,000 ppm
- H2S High Range: 100 ppm (Adjustable Between 50 and 200 ppm)
- H2S Low Range: 50 ppm (Adjustable Between 10 and 50 ppm)
- NH3: 200 ppm (Adjustable Between 50 and 200 ppm)
- NO2: 20 ppm (Adjustable Between 5 and 50 ppm)
- O2: 0 to 25% vol
- Digital Output
- Modbus RTU
Operating Characteristics
- Minimum Temperature
- -20°C
Electrical Specifications
- Maximum Operating Current
- 850 mA
- Electrical Connection
- Pluggable Rising Clamp Style, 0.5 to 1.5 sq.mm (20 to 16 AWG)
- Operating Voltage
- 24 VDC
Standards & Certifications
- Ingress Protection
- IP65
- IP65 (Type 4)
Material Specifications
- Enclosure Material
- Polycarbonate
Applications & Compatibility
- Application
- Apartments, Accommodation Blocks and Condominiums
- Hospitals
- Hotel and Leisure
- Kitchens and Food Processing
- Laboratories
- Manufacturing Facilities and Factories
- Retail Sites
- Transportation and Parking
Overview
- Brand
- Honeywell
Features
- Sub-Category
- Gas Detection Sensors & Transmitters
- Alarm Included
- Yes
- Display Readout
- LED Indicator
- Features & Benefits
- Choose from a Range of mA or Modbus Output Versions for Flexible System Design to Meet the Customers Requirements
- Gassing Port for Easier Bump Test of Units Installed in Inaccessible Locations. No Need to Purchase a Separate Accessory and Thus Saves Money
- Manage the Detector without Making a Physical Connection. Remove the Need for Physical Access to Hard-to-Reach Devices
- Multi-Color Visual Indicator to Stow Status Makes it Easier to Know the Detector Status Immediately and Identify Detectors that Require Attention or are Warning of Danger
- Optional Relay Output for External Control Systems or Alarming Devices Enables Easy Integration and Local Indication
- Selectable Source or Sink Current for Analog Output Enables One Detector to be Suitable for Both System Configurations
- Simplified Maintenance with Familiar Smartphone Technology Saves Money and Time
- The Ingress Protection of IP65 Allows Units to be Mounted in Wash Down Areas
- Visual Indicators
- Flashing Green and Yellow: Warning
- Flashing Red: Alarm
- Flashing Yellow: Fault
- Green: Normal
- Solid Yellow: Inhibited
Dimensions & Weight
- Weight range
- 500 g
- Dimension
- 113 mm x 113 mm x 59 mm
Technical Specifications
- Humidity Range
- 15 to 90% RH (Non-Condensing)
- Analog Outputs
- 0 to 22 mA
- Relay Output Configuration
- 2 x @24 V DC/240 V AC, 5A
- Maximum Pressure
- 110 kPa
- Measuring Range
- CO2 (% vol Range): 5.0% vol (Adjustable Between 1.0 and 5.0% vol)
- CO2 (ppm Range): 5,000 ppm (Adjustable between 1,000 and 5,000 ppm)
- CO: 300 ppm (Adjustable Between 50 and 1000 Ppm)
- Combustible: 0 to 100 % LEL (Factory Calibrated to Methane)
- H2: 1,000 ppm
- H2S High Range: 100 ppm (Adjustable Between 50 and 200 ppm)
- H2S Low Range: 50 ppm (Adjustable Between 10 and 50 ppm)
- NH3: 200 ppm (Adjustable Between 50 and 200 ppm)
- NO2: 20 ppm (Adjustable Between 5 and 50 ppm)
- O2: 0 to 25% vol
- Digital Output
- Modbus RTU
Operating Characteristics
- Minimum Temperature
- -20°C
Electrical Specifications
- Maximum Operating Current
- 850 mA
- Electrical Connection
- Pluggable Rising Clamp Style, 0.5 to 1.5 sq.mm (20 to 16 AWG)
- Operating Voltage
- 24 VDC
Standards & Certifications
- Ingress Protection
- IP65
- IP65 (Type 4)
Material Specifications
- Enclosure Material
- Polycarbonate
Applications & Compatibility
- Application
- Apartments, Accommodation Blocks and Condominiums
- Hospitals
- Hotel and Leisure
- Kitchens and Food Processing
- Laboratories
- Manufacturing Facilities and Factories
- Retail Sites
- Transportation and Parking
- Brand : Honeywell
- Sub-Category : Gas Detection Sensors & Transmitters
- Weight range : 500 g
- Humidity Range : 15 to 90% RH (Non-Condensing)
- Minimum Temperature : -20°C
- Alarm Included : Yes
- Analog Outputs : 0 to 22 mA
- Display Readout : LED Indicator
- Features & Benefits : Choose from a Range of mA or Modbus Output Versions for Flexible System Design to Meet the Customers Requirements|Gassing Port for Easier Bump Test of Units Installed in Inaccessible Locations. No Need to Purchase a Separate Accessory and Thus Saves Money|Manage the Detector without Making a Physical Connection. Remove the Need for Physical Access to Hard-to-Reach Devices|Multi-Color Visual Indicator to Stow Status Makes it Easier to Know the Detector Status Immediately and Identify Detectors that Require Attention or are Warning of Danger|Optional Relay Output for External Control Systems or Alarming Devices Enables Easy Integration and Local Indication|Selectable Source or Sink Current for Analog Output Enables One Detector to be Suitable for Both System Configurations|Simplified Maintenance with Familiar Smartphone Technology Saves Money and Time|The Ingress Protection of IP65 Allows Units to be Mounted in Wash Down Areas
- Relay Output Configuration : 2 x @24 V DC/240 V AC, 5A
- Maximum Operating Current : 850 mA
- Visual Indicators : Flashing Green and Yellow: Warning|Flashing Red: Alarm|Flashing Yellow: Fault|Green: Normal|Solid Yellow: Inhibited
- Maximum Pressure : 110 kPa
- Ingress Protection : IP65|IP65 (Type 4)
- Electrical Connection : Pluggable Rising Clamp Style, 0.5 to 1.5 sq.mm (20 to 16 AWG)
- Operating Voltage : 24 VDC
- Measuring Range : CO2 (% vol Range): 5.0% vol (Adjustable Between 1.0 and 5.0% vol)|CO2 (ppm Range): 5,000 ppm (Adjustable between 1,000 and 5,000 ppm)|CO: 300 ppm (Adjustable Between 50 and 1000 Ppm)|Combustible: 0 to 100 % LEL (Factory Calibrated to Methane)|H2: 1,000 ppm|H2S High Range: 100 ppm (Adjustable Between 50 and 200 ppm)|H2S Low Range: 50 ppm (Adjustable Between 10 and 50 ppm)|NH3: 200 ppm (Adjustable Between 50 and 200 ppm)|NO2: 20 ppm (Adjustable Between 5 and 50 ppm)|O2: 0 to 25% vol
- Enclosure Material : Polycarbonate
- Dimension : 113 mm x 113 mm x 59 mm
- Digital Output : Modbus RTU
- Application : Apartments, Accommodation Blocks and Condominiums|Hospitals|Hotel and Leisure|Kitchens and Food Processing|Laboratories|Manufacturing Facilities and Factories|Retail Sites|Transportation and Parking
Please sign in to view part numbers available for purchase based on your account Sign In
Showing 1 to 10 of 18 parts
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
SPLLA1XAXCXNZZ
Sensepoint XCL, 4 to 20 mA, NH3(L) 100ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLA1XAXCXNZZ
Sensepoint XCL, 4 to 20 mA, NH3(L) 100ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLA1XAXWXNZZ
Sensepoint XCL, 4 to 20 mA, NH3(L) 100ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLA1XAXWXNZZ
Sensepoint XCL, 4 to 20 mA, NH3(L) 100ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC1XAXCXNZZ
Sensepoint XCL, 4 to 20 mA,CO(L) 100ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC1XAXCXNZZ
Sensepoint XCL, 4 to 20 mA,CO(L) 100ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC1XAXWXNZZ
Sensepoint XCL, 4 to 20 mA,CO(L) 100ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC1XAXWXNZZ
Sensepoint XCL, 4 to 20 mA,CO(L) 100ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC2XAXCXNZZ
Sensepoint XCL, 4 to 20 mA,CO 300ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC2XAXCXNZZ
Sensepoint XCL, 4 to 20 mA,CO 300ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC2XAXWXNZZ
Sensepoint XCL, 4 to 20 mA,CO 300ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLC2XAXWXNZZ
Sensepoint XCL, 4 to 20 mA,CO 300ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLF6XAXCXNZZ
Sensepoint XCL, 4 to 20 mA, Catalytic Sensor 0 to 100% LEL (CH4 calibrated), Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLF6XAXCXNZZ
Sensepoint XCL, 4 to 20 mA, Catalytic Sensor 0 to 100% LEL (CH4 calibrated), Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLF6XAXWXNZZ
Sensepoint XCL, 4 to 20 mA, Catalytic Sensor 0 to 100% LEL (CH4 calibrated), Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLF6XAXWXNZZ
Sensepoint XCL, 4 to 20 mA, Catalytic Sensor 0 to 100% LEL (CH4 calibrated), Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLG1XAXCXNZZ
Sensepoint XCL, 4 to 20 mA,, H2 1000ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLG1XAXCXNZZ
Sensepoint XCL, 4 to 20 mA,, H2 1000ppm, Compliance, Charcoal
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLG1XAXWXNZZ
Sensepoint XCL, 4 to 20 mA,, H2 1000ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
SPLLG1XAXWXNZZ
Sensepoint XCL, 4 to 20 mA,, H2 1000ppm, Compliance, White
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ia-pmc-sensepoint-xcl-non-ble-hero
