    Presentation Scanners

    Genesis XP 7680g

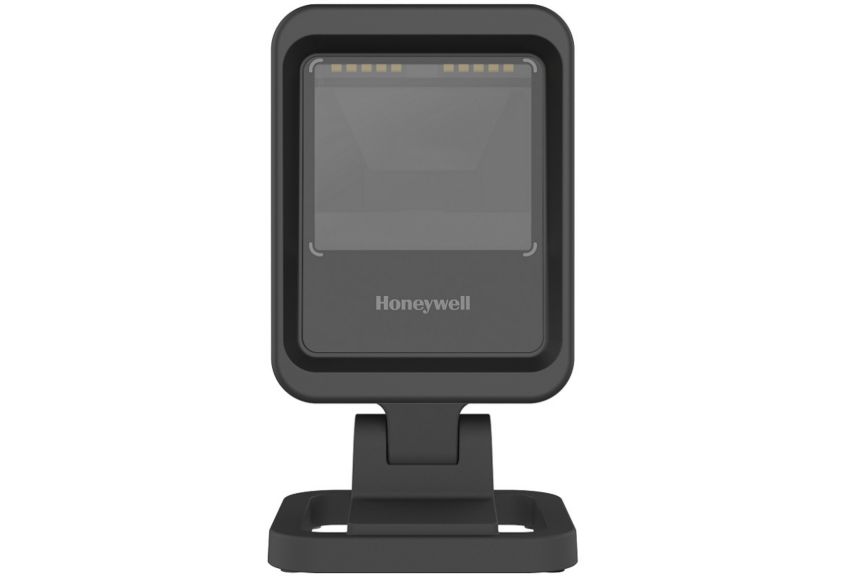

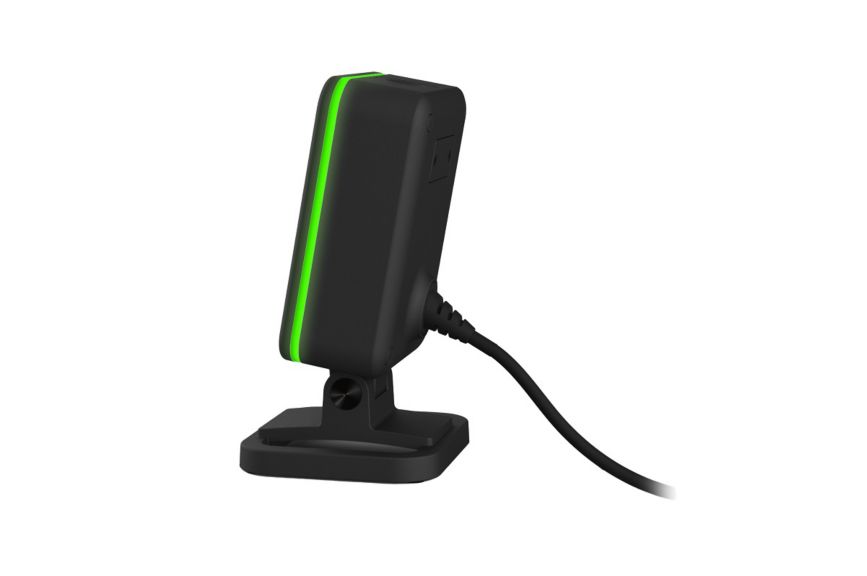

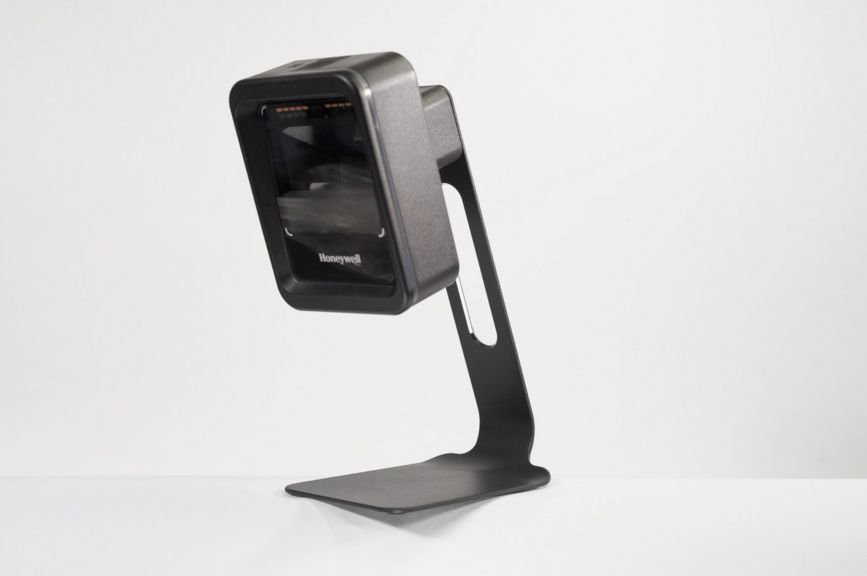

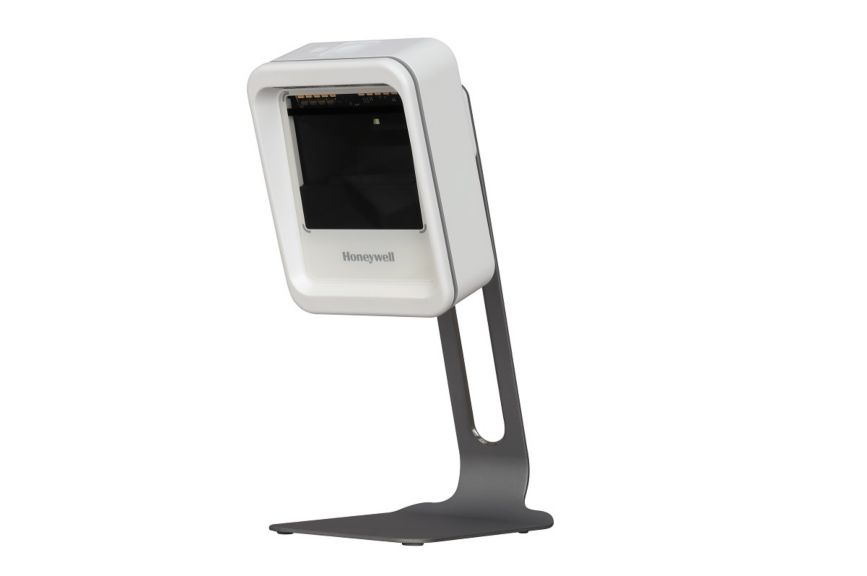

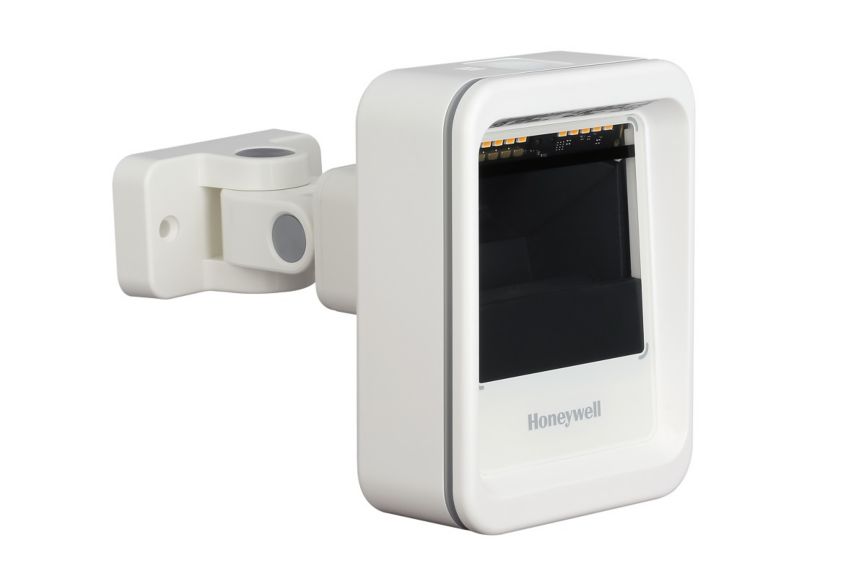

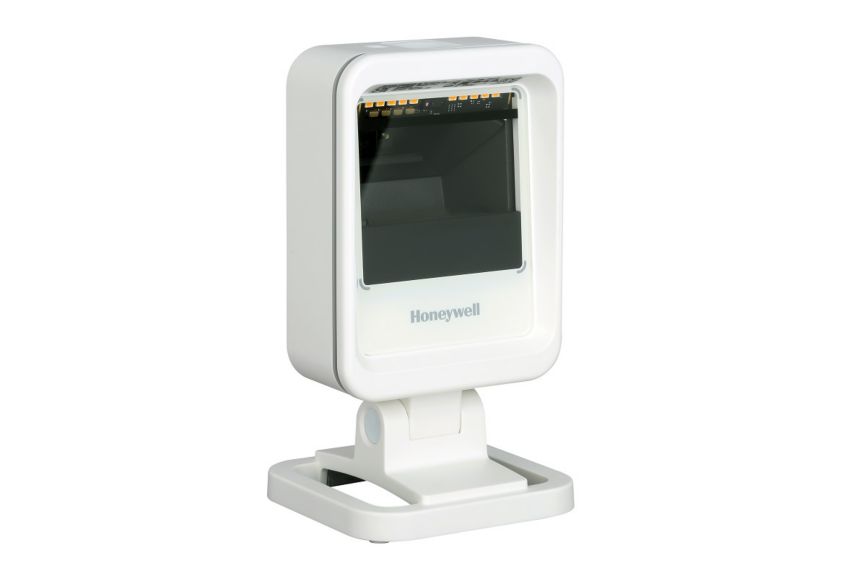

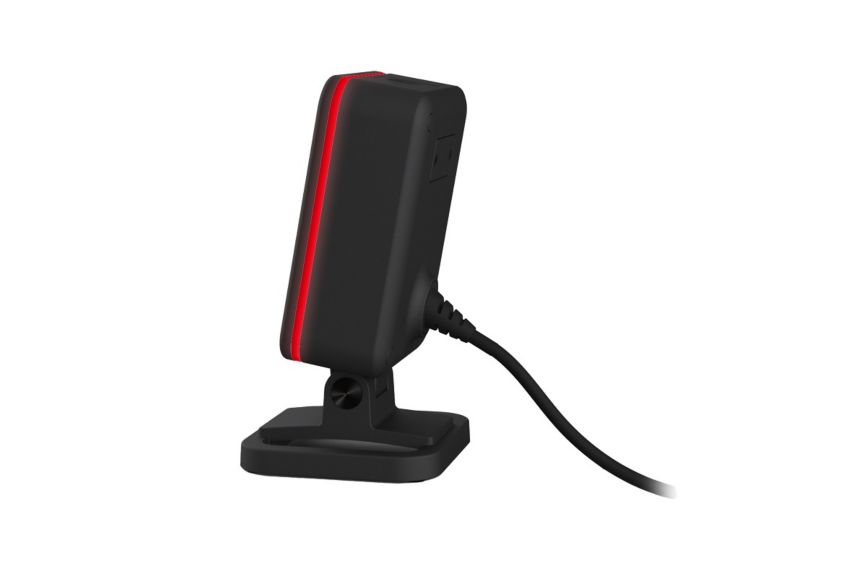

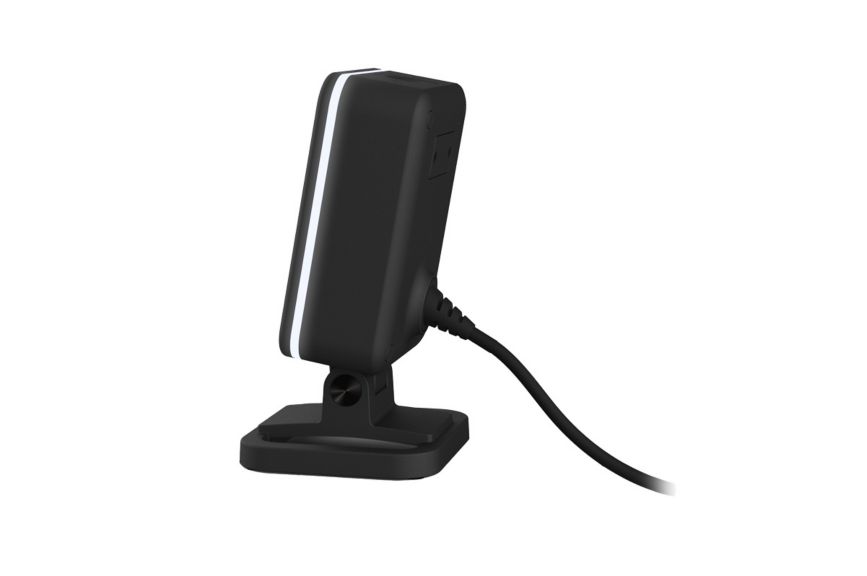

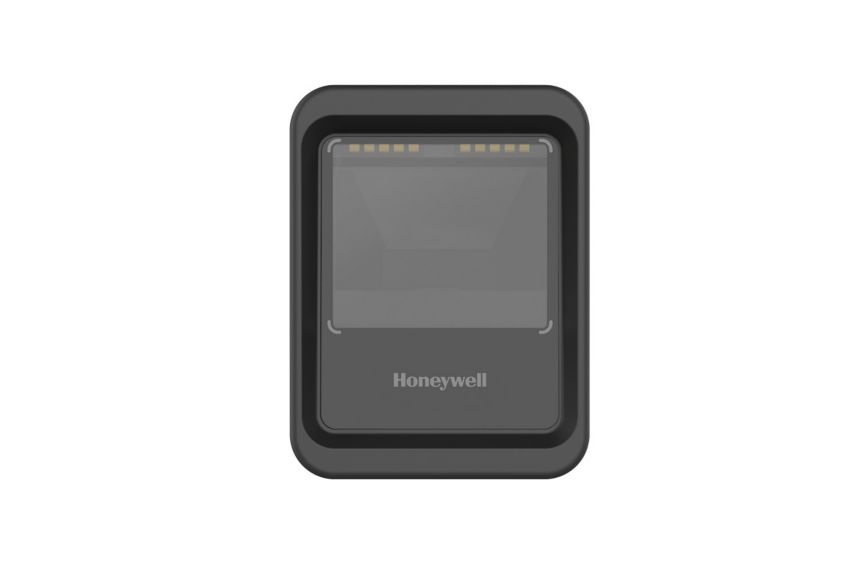

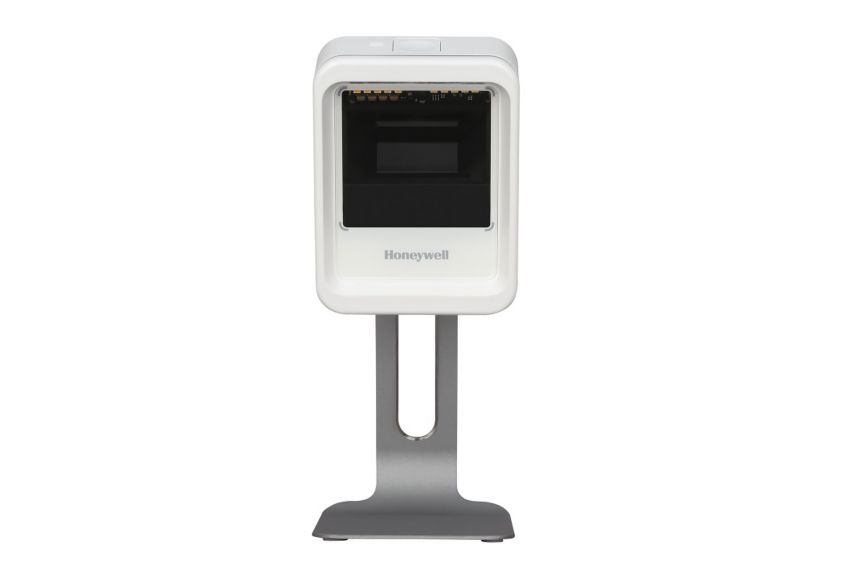

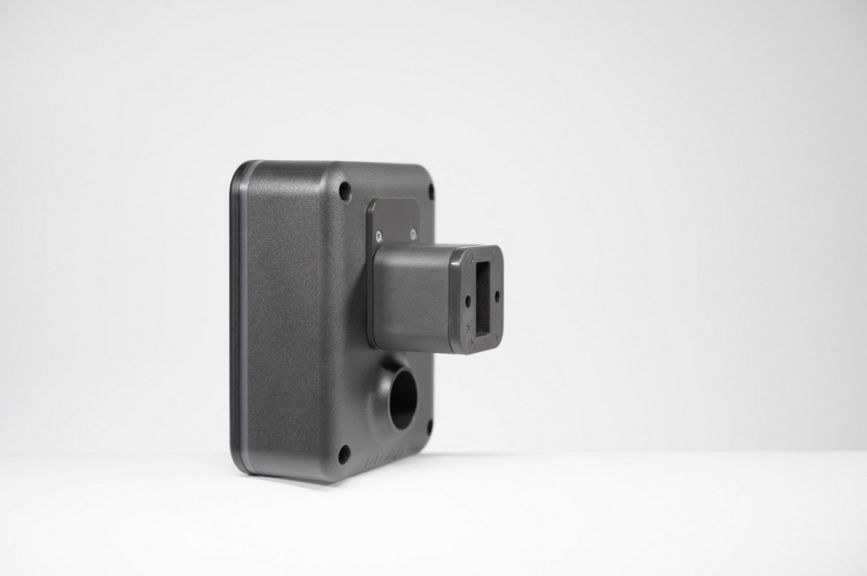

    Genesis XP 7680g Flexible Presentation Scanner

    Overview
    The Honeywell Genesis™ XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. Featuring extreme performance “XP” scanning technology in a flexible design that fits multiple workflows. The compact, modern design features clean lines and warm, white illumination, disinfectant ready housing, and a small footprint that is ideal for contemporary retail and healthcare environments.

    BIG VALUE IN A SMALL PACKAGE
    • INCREASED PRODUCTIVITY. The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell’s field proven XP technology handles poorly printed and damaged barcodes with ease. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.
    • FANTASTIC USER EXPERIENCE. The compact and modern design offers a contemporary experience with minimal counter space required. The 360 color LED ring highlights the scanning target area and provides clear feedback, offering an intuitive experience for both employees and customers. The scanning user experience is a key element for a delightful customer engagement. The warm, white light illumination is more pleasing to the eye, and automatic object detections turns the illumination completely off between scans, so the scanner is not a distraction.
    • FLEXIBILITY AND ADAPTABILITY. The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. In addition to the standard adjustable compact stand, smart placement accessories are now available for the Genesis XP. These new mounting accessories support wall mount, point-of-sale mount, and downward facing installations, allowing the product to be placed almost anywhere. A top mounted button is ideally placed for triggered, handheld scanning applications. A disinfectant ready housing, available in black or white colors, enables deployment in environments where regular cleaning is required.
    Specifications

    Features

    • Features
      • Fantastic User Experience
      • Flexibility and Adaptability
      • Increased Productivity

    Dimensions

    • Overall Dimensions
      • 3.2" x 1.6" x 4.1" (no stand); 3.2" x 1.6" x 5.7" (with stand)
      • 80 mm x 40 mm x 105 mm (no stand); 80 mm x 40 mm x 145 mm (with stand)

    Scanning Specifications

    • Scanning Range
      • Standard range (SR)
    • Scan Pattern
      • Area Image, 1,280 x 800 pixel
    • Print Contrast
      • 20% minimum reflectance difference
    • Motion Tolerance
      • 400 cm/s for 13 mil UPC at optimal focus
    • Decode Capability
      • 1D/2D
    • Maximum Brightness
      • 100,000 Lux
    • Pitch
      • 65°
    • Skew
      • 65°

    Hardware

    • Engine Type
      • 1D/2D
    • Host System Interface
      • USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)

    Environmental

    • Operating Humidity
      • 0% to 95% relative humidity, non-condensing
    • Storage Temperature Range
      • -40° F - 158° F
      • -40°C to 70°C

    Others

    • Application
      • Hands-Free, Presentation Scanning
    • Form Factor
      • Hands Free
    • Overall Width
      • 3.2 in
      • 80 mm
    • Overall Depth
      • 1.6 in inch
    • Overall Height
      • 145 mm (with stand) inch
      • 5.7 in (with stand) inch
    • Weight range
      • 12 oz keg
      • 340 g keg
    • Operating Current
      • 2.0 W (400 mA @ 5V)
    • Input voltage
      • 5.0V DC Typical
    • Operating temperature
      • 0°C to 50°C
      • 32° F - 122° F
    • Warranty Duration
      • 3 Years
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded

    Features

    • Features
      • Fantastic User Experience
      • Flexibility and Adaptability
      • Increased Productivity

    Dimensions

    • Overall Dimensions
      • 3.2" x 1.6" x 4.1" (no stand); 3.2" x 1.6" x 5.7" (with stand)
      • 80 mm x 40 mm x 105 mm (no stand); 80 mm x 40 mm x 145 mm (with stand)

    Scanning Specifications

    • Scanning Range
      • Standard range (SR)
    • Scan Pattern
      • Area Image, 1,280 x 800 pixel
    • Print Contrast
      • 20% minimum reflectance difference
    • Motion Tolerance
      • 400 cm/s for 13 mil UPC at optimal focus
    • Decode Capability
      • 1D/2D
    • Maximum Brightness
      • 100,000 Lux
    • Pitch
      • 65°
    • Skew
      • 65°

    Hardware

    • Engine Type
      • 1D/2D
    • Host System Interface
      • USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)

    Environmental

    • Operating Humidity
      • 0% to 95% relative humidity, non-condensing
    • Storage Temperature Range
      • -40° F - 158° F
      • -40°C to 70°C

    Others

    • Application
      • Hands-Free, Presentation Scanning
    • Form Factor
      • Hands Free
    • Overall Width
      • 3.2 in
      • 80 mm
    • Overall Depth
      • 1.6 in inch
    • Overall Height
      • 145 mm (with stand) inch
      • 5.7 in (with stand) inch
    • Weight range
      • 12 oz keg
      • 340 g keg
    • Operating Current
      • 2.0 W (400 mA @ 5V)
    • Input voltage
      • 5.0V DC Typical
    • Operating temperature
      • 0°C to 50°C
      • 32° F - 122° F
    • Warranty Duration
      • 3 Years
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded
    • Features : Fantastic User Experience|Flexibility and Adaptability|Increased Productivity
    • Application : Hands-Free, Presentation Scanning
    • Form Factor : Hands Free
    • Overall Width : 3.2 in|80 mm
    • Overall Depth : 1.6 in inch
    • Overall Height : 145 mm (with stand) inch|5.7 in (with stand) inch
    • Overall Dimensions : 3.2" x 1.6" x 4.1" (no stand); 3.2" x 1.6" x 5.7" (with stand)|80 mm x 40 mm x 105 mm (no stand); 80 mm x 40 mm x 145 mm (with stand)
    • Weight range : 12 oz keg|340 g keg
    • Scanning Range : Standard range (SR)
    • Scan Pattern : Area Image, 1,280 x 800 pixel
    • Print Contrast : 20% minimum reflectance difference
    • Motion Tolerance : 400 cm/s for 13 mil UPC at optimal focus
    • Decode Capability : 1D/2D
    • Maximum Brightness : 100,000 Lux
    • Pitch : 65°
    • Skew : 65°
    • Engine Type : 1D/2D
    • Host System Interface : USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)
    • Operating Current : 2.0 W (400 mA @ 5V)
    • Input voltage : 5.0V DC Typical
    • Operating Humidity : 0% to 95% relative humidity, non-condensing
    • Storage Temperature Range : -40° F - 158° F|-40°C to 70°C
    • Operating temperature : 0°C to 50°C|32° F - 122° F
    • Warranty Duration : 3 Years
    • Brand : Honeywell
    • Power Connector Type : Corded
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Genesis XP 7680g Scanner datasheet
    application/pdf 146.28 KB
    5/12/2022
    146.28 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    application/pdf 1.74 MB
    10/1/2024
    1.74 MB
    Honeywell OCR Programming User Guide (OCR-UG Rev B)
    application/pdf 171.01 KB
    11/27/2024
    171.01 KB
    Linux Keyboard Layouts for Honeywell scanners (KBDCTY-L-EN-AD-01 Rev C)
    application/pdf 197.41 KB
    11/27/2024
    197.41 KB
    Genesis XP 7680g Quick Start Guide (7680-EN-QS-01 Rev C)
    application/pdf 635.41 KB
    7/14/2021
    635.41 KB
    Genesis XP 7680g Accessories User Guide (7680-ACC-EN-UG-01 Rev A)
    application/pdf 977.58 KB
    8/10/2021
    977.58 KB
    User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
    application/pdf 1.16 MB
    11/27/2024
    1.16 MB
    Open Source Licensing Information: Genesis XP 7680g (7680-EN-OSL-01 Rev A)
    application/pdf 408.03 KB
    7/14/2021
    408.03 KB
    User Guide: Genesis XP 7680g (7680-EN-UG-01 Rev C)
    application/pdf 7.69 MB
    11/29/2022
    7.69 MB
    Regulatory Information
    Name
    Description
    File Size
    Date
    Size
    Regulatory Sheet: Genesis XP 7680g (7680-ML-RS-02 Rev A)
    application/pdf 1.08 MB
    1/9/2023
    1.08 MB
    Catalog
    Name
    Description
    File Size
    Date
    Size
    GENESIS XP 7680G Barcode Scanner Accessories Guide (Rev A)
    application/pdf 379.69 KB
    7/3/2023
    379.69 KB
    Name
    Description
    File Size
    Date
    Size
    GENESIS XP 7680G Barcode Scanner Accessories Guide (Rev A)
    application/pdf 379.69 KB
    7/3/2023
    379.69 KB
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    application/pdf 1.74 MB
    10/1/2024
    1.74 MB
    Genesis XP 7680g Scanner datasheet
    application/pdf 146.28 KB
    5/12/2022
    146.28 KB
    Honeywell OCR Programming User Guide (OCR-UG Rev B)
    application/pdf 171.01 KB
    11/27/2024
    171.01 KB
    Linux Keyboard Layouts for Honeywell scanners (KBDCTY-L-EN-AD-01 Rev C)
    application/pdf 197.41 KB
    11/27/2024
    197.41 KB
    Regulatory Sheet: Genesis XP 7680g (7680-ML-RS-02 Rev A)
    application/pdf 1.08 MB
    1/9/2023
    1.08 MB
    Genesis XP 7680g Quick Start Guide (7680-EN-QS-01 Rev C)
    application/pdf 635.41 KB
    7/14/2021
    635.41 KB
    Genesis XP 7680g Accessories User Guide (7680-ACC-EN-UG-01 Rev A)
    application/pdf 977.58 KB
    8/10/2021
    977.58 KB
    User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
    application/pdf 1.16 MB
    11/27/2024
    1.16 MB
    Open Source Licensing Information: Genesis XP 7680g (7680-EN-OSL-01 Rev A)
    application/pdf 408.03 KB
    7/14/2021
    408.03 KB
    User Guide: Genesis XP 7680g (7680-EN-UG-01 Rev C)
    application/pdf 7.69 MB
    11/29/2022
    7.69 MB
    Name
    Description
    File Size
    Date
    Size
    Genesis XP 7680g Scanner datasheet
    146.28 KB
    5/12/2022
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    1.74 MB
    10/1/2024
    Honeywell OCR Programming User Guide (OCR-UG Rev B)
    171.01 KB
    11/27/2024
    Linux Keyboard Layouts for Honeywell scanners (KBDCTY-L-EN-AD-01 Rev C)
    197.41 KB
    11/27/2024
    Genesis XP 7680g Quick Start Guide (7680-EN-QS-01 Rev C)
    635.41 KB
    7/14/2021
    Genesis XP 7680g Accessories User Guide (7680-ACC-EN-UG-01 Rev A)
    977.58 KB
    8/10/2021
    User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
    1.16 MB
    11/27/2024
    Open Source Licensing Information: Genesis XP 7680g (7680-EN-OSL-01 Rev A)
    408.03 KB
    7/14/2021
    User Guide: Genesis XP 7680g (7680-EN-UG-01 Rev C)
    7.69 MB
    11/29/2022
    Regulatory Sheet: Genesis XP 7680g (7680-ML-RS-02 Rev A)
    1.08 MB
    1/9/2023
    GENESIS XP 7680G Barcode Scanner Accessories Guide (Rev A)
    379.69 KB
    7/3/2023
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    7680GSR-2-1-A
    GENESIS XP 7680G, CUSTOM USB KIT FOR MCDONALDS
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-A
    GENESIS XP 7680G, CUSTOM USB KIT FOR MCDONALDS
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-I
    Genesis XP Presentation Scanner with Stand: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner, Stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-I
    Genesis XP Presentation Scanner with Stand: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner, Stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-J
    Genesis XP Presentation Scanner with Stand: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner, Stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-J
    Genesis XP Presentation Scanner with Stand: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner, Stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-N
    Genesis XP Presentation Scanner with Stand: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner, Stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-N
    Genesis XP Presentation Scanner with Stand: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner, Stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-R
    SCANNER 7680G, BLACK, STAND, ROW
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-1-R
    SCANNER 7680G, BLACK, STAND, ROW
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-30C-1-R
    KIT,7680G,BLACK,RS232,STAND,PS,ROW
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-30C-1-R
    KIT,7680G,BLACK,RS232,STAND,PS,ROW
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-N
    Genesis XP Presentation Scanner: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner without stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-N
    Genesis XP Presentation Scanner: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner without stand. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-R
    SCANNER 7680G, BLACK, ROW
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2-R
    SCANNER 7680G, BLACK, ROW
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2USB-1-A
    Genesis XP Presentation Scanner: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2USB-1-A
    Genesis XP Presentation Scanner: Tethered. 1D, PDF417, 2D, SR focus, DRH. Black Scanner. Compatible with RS232USBKBW cables (not included)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2USB-1-J
    KIT, 7680G, BLACK, USB, STAND, JAPAN
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
    7680GSR-2USB-1-J
    KIT, 7680G, BLACK, USB, STAND, JAPAN
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-7680g-primary-image
