Fixed Mount

HF810

Fixed Mount Scanner

Overview

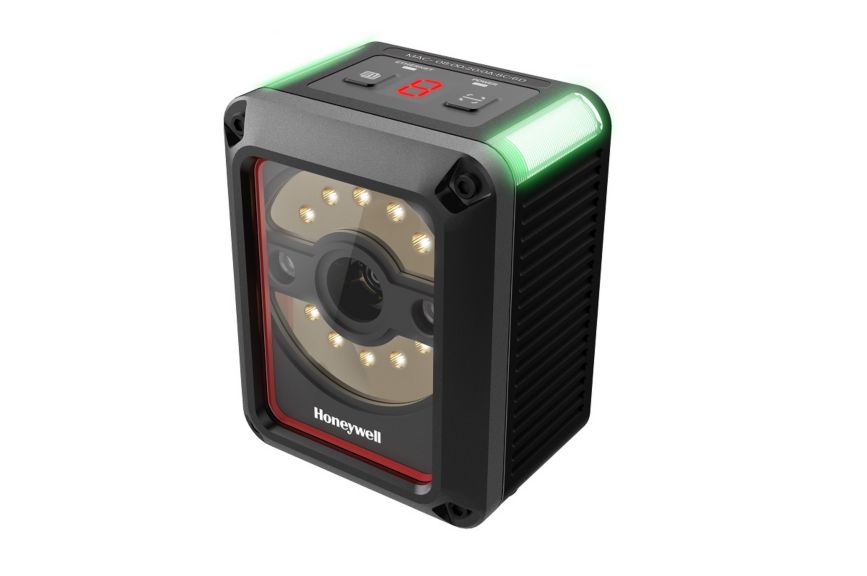

sps-ppr-hf810-primary
Support Where To Buy Contact Us
With Honeywell’s state-of-the-art technology in encoding and decoding, HF810 Fixed-mount 2D Industrial Scanner offers powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.
Specifications

Features

  • Features
    • Network ready

Dimensions

  • Overall Dimensions
    • (H x W x D): 70 mm x 55 mm x 45 mm

Scanning Specifications

  • Scan Pattern
    • 2D imager
  • Depth of Field
    • 0-1000 mm
  • Decode Capability
    • 1D
    • 2D (QR, Datamatrix, Maxicode, Aztec)
    • DPM
    • PDF417
  • Brightness
    • 0-100k lux

Hardware

  • Wireless
    • No
  • Host System Interface
    • Ethernet
    • RS232
    • RS485

Environmental

  • Storage Temperature Range
    • -20˚C to 70˚C
  • Operating Humidity
    • 0 to 95% relative humidity non-condensing

Standards & Approvals

  • Protection Ratings
    • IP65

Network

  • Communication Protocols
    • Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)
    • RS232
    • RS485
    • TCP\IP

Others

  • Application
    • Industrial Fixed Mount
  • Form Factor
    • Slot Scanner
  • For Use With
    • Auxiliary handheld scanners
  • Input Voltage
    • 10-26.5 volts
  • Operating Temperature
    • 0°C to 50°C
  • Warranty Duration
    • 3 years
  • Scan Distance
    • Standard Range (0-1m)
  • Power Connector Type
    • M12
  • IP Rating
    • IP65
  • Connectivity
    • Corded

Features

  • Features
    • Network ready

Dimensions

  • Overall Dimensions
    • (H x W x D): 70 mm x 55 mm x 45 mm

Scanning Specifications

  • Scan Pattern
    • 2D imager
  • Depth of Field
    • 0-1000 mm
  • Decode Capability
    • 1D
    • 2D (QR, Datamatrix, Maxicode, Aztec)
    • DPM
    • PDF417
  • Brightness
    • 0-100k lux

Hardware

  • Wireless
    • No
  • Host System Interface
    • Ethernet
    • RS232
    • RS485

Environmental

  • Storage Temperature Range
    • -20˚C to 70˚C
  • Operating Humidity
    • 0 to 95% relative humidity non-condensing

Standards & Approvals

  • Protection Ratings
    • IP65

Network

  • Communication Protocols
    • Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)
    • RS232
    • RS485
    • TCP\IP

Others

  • Application
    • Industrial Fixed Mount
  • Form Factor
    • Slot Scanner
  • For Use With
    • Auxiliary handheld scanners
  • Input Voltage
    • 10-26.5 volts
  • Operating Temperature
    • 0°C to 50°C
  • Warranty Duration
    • 3 years
  • Scan Distance
    • Standard Range (0-1m)
  • Power Connector Type
    • M12
  • IP Rating
    • IP65
  • Connectivity
    • Corded
  • Application : Industrial Fixed Mount
  • Form Factor : Slot Scanner
  • For Use With : Auxiliary handheld scanners
  • Features : Network ready
  • Overall Dimensions : (H x W x D): 70 mm x 55 mm x 45 mm
  • Scan Pattern : 2D imager
  • Depth of Field : 0-1000 mm
  • Decode Capability : 1D|2D (QR, Datamatrix, Maxicode, Aztec)|DPM|PDF417
  • Brightness : 0-100k lux
  • Wireless : No
  • Host System Interface : Ethernet|RS232|RS485
  • Input Voltage : 10-26.5 volts
  • Storage Temperature Range : -20˚C to 70˚C
  • Operating Temperature : 0°C to 50°C
  • Operating Humidity : 0 to 95% relative humidity non-condensing
  • Protection Ratings : IP65
  • Warranty Duration : 3 years
  • Scan Distance : Standard Range (0-1m)
  • Power Connector Type : M12
  • IP Rating : IP65
  • Connectivity : Corded
  • Communication Protocols : Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)|RS232|RS485|TCP\IP
Data Sheet
Name
Description
File Size
Date
Size
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 540.4 KB
7/3/2023
540.4 KB
HF81X系列工业固定式读码器
HF81X系列工业固定式读码器
application/pdf 356.71 KB
10/14/2022
356.71 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.5 KB
10/14/2022
89.5 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
Manuals and Guides
Name
Description
File Size
Date
Size
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
7/27/2023
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Name
Description
File Size
Date
Size
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 540.4 KB
7/3/2023
540.4 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
application/pdf 246.59 KB
2/22/2023
246.59 KB
HF81X系列工业固定式读码器
HF81X系列工业固定式读码器
application/pdf 356.71 KB
10/14/2022
356.71 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.5 KB
10/14/2022
89.5 KB
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
application/pdf 89.4 KB
10/14/2022
89.4 KB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
7/27/2023
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
application/pdf 941.78 KB
1/9/2023
941.78 KB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/27/2024
1.16 MB
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
application/pdf 2.46 MB
5/22/2023
2.46 MB
Name
Description
File Size
Date
Size
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
540.4 KB
7/3/2023
HF81X系列工业固定式读码器
HF81X系列工业固定式读码器
356.71 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.5 KB
10/14/2022
HF810 & HF811 Fixed Mount Scanners Datasheet
HF810 & HF811 Fixed Mount Scanners Datasheet
89.4 KB
10/14/2022
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
Quick Start Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-QS-01 Rev A)
246.59 KB
2/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
7/27/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/27/2024
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
User Guide: HF810 and HF811 Fixed Mount Scanners (HF81x-EN-UG-01 Rev A)
2.46 MB
5/22/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
Regulatory Sheet: HF810 and HF811 Fixed Mount Scanners (HF81x-ML-RS-02 Rev A)
941.78 KB
1/9/2023
Showing 1 to 2 of 2 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail

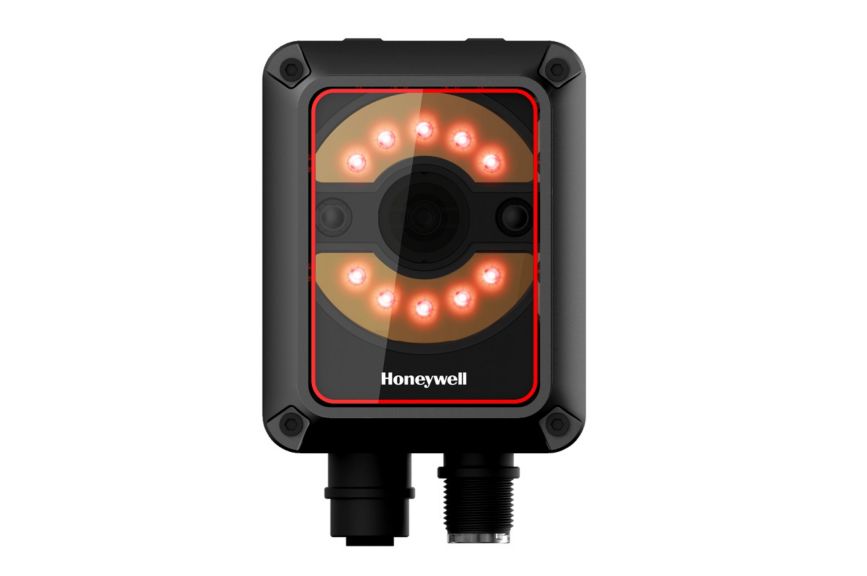

SVCHF810-SG3N
HF810 EDGE, GOLD, 3YR, NEW
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf810-primary
SVCHF810-SG3N
HF810 EDGE, GOLD, 3YR, NEW
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf810-primary
SVCHF810-SG5N
HF810 EDGE, GOLD,5YR, NEW
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf810-primary
SVCHF810-SG5N
HF810 EDGE, GOLD,5YR, NEW
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-hf810-primary

Let's Connect!

Sign up to receive exclusive communications from Honeywell including product updates, technical information, new offerings, events and news, surveys, special offers, and related topics via telephone, email, and other forms of electronic communication.

Subscribe
Products
toggle view
Software
toggle view
Services
toggle view
Industries
toggle view
Support
toggle view
Where to Buy
toggle view
myAutomation Support
toggle view
Company
toggle view
Careers
toggle view
Contact
toggle view
Follow Us

Copyright © 2025 Honeywell International Inc

Terms & Conditions
Privacy Statement
Your Privacy Choicesicon
Cookie Notice
Global Unsubscribe
