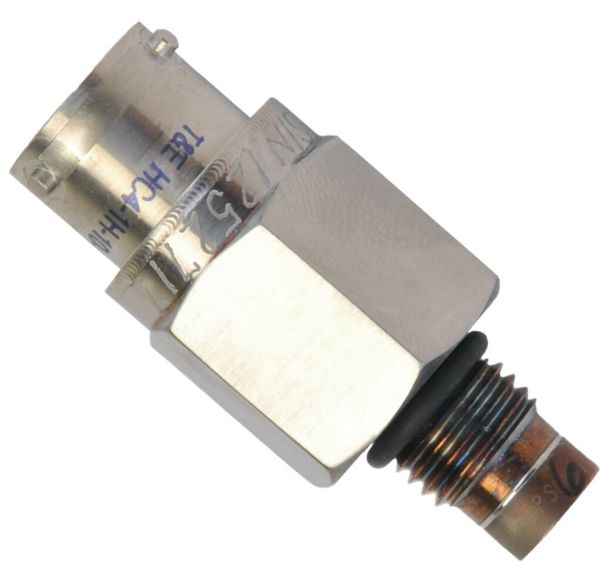

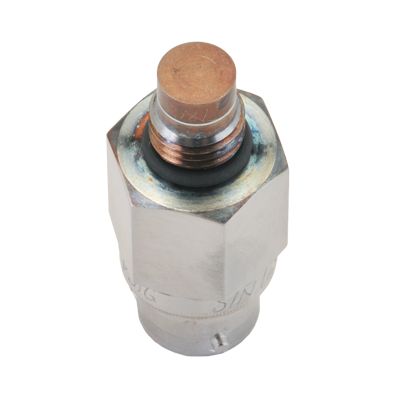

Transductores de presión
Modelo A-105
Transductores de presión de diafragma tipo “Flush”. 100 psi a 15,000 psi. Precisión de escala completa de 0.50%
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Los transductores de presión con galga extensiométrica modelo A-105 se fabrican con un diafragma impregnado de acero inoxidable 17-4 PH unificado. La ventaja de este tipo de diseño es que se fabrican un diafragma delgado y laterales pesados a partir de una única pieza de acero inoxidable. Este diafragma unificado es resistente pero, al mismo tiempo, su espesor puede reducirse hasta lograr un calibre lo suficientemente fino para medir bajas presiones.
Rango de presión disponible desde 100 psig a 15.000 psig. Estos modelos se pueden utilizar en ambientes líquidos y corrosivos. El modelo A-105 tiene conectores eléctricos soldados que forman parte de la estructura del transductor. Se los recomienda para aplicaciones de manipulación hostil o en las cuales se requiera el uso de un transductor de acero inoxidable totalmente soldado. Todas las unidades tienen cuatro (4) galgas extensiométricas activas ubicadas según la configuración de puentes Wheatstone.
Funcionalidades
- Rango de 100 psig a 15000 psig
- Diseño de montaje empotrado
- Sin volumen muerto
- Tamaño miniatura
- Acero inoxidable
- Aprobado por CE
Ficha técnica
