    Load Cells

    Model 41 Series

    Tension/compression precision low profile load cells. 5 lb to 500,000 lb. Full-scale accuracies as low as ±0.13%. Intrinsically safe option avail

    Overview

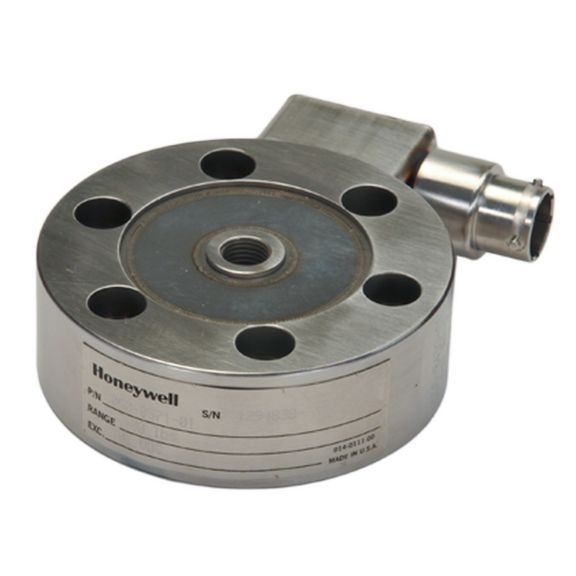

    Honeywell all-welded, stainless steel, low profile, pancake load cells feature either bonded foil or foil strain gauge technology measuring loads from 5 lb up to 500,000 lb with accuracies from 0.10 % up to 0.04 %. Choose from compression only or tension/compression models to fit your particular application.

    Fatigue-rated models are available that are designed for applications, such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. Select models are also available as intrinsically safe options for use in hazardous locations. Need special modifications or a custom design? Call us to discuss your requirements.

    Features
    • 0.1 % accuracy
    • 5 lb to 500000 lb
    • mV/V output (standard): 4 mA to 20 mA and 0 Vdc to 5 Vdc (optional) outputs
    • Double diaphragm design
    • Intrinsically safe available (2N option only)
    • CE approved
    Data Sheet
