Load Cells

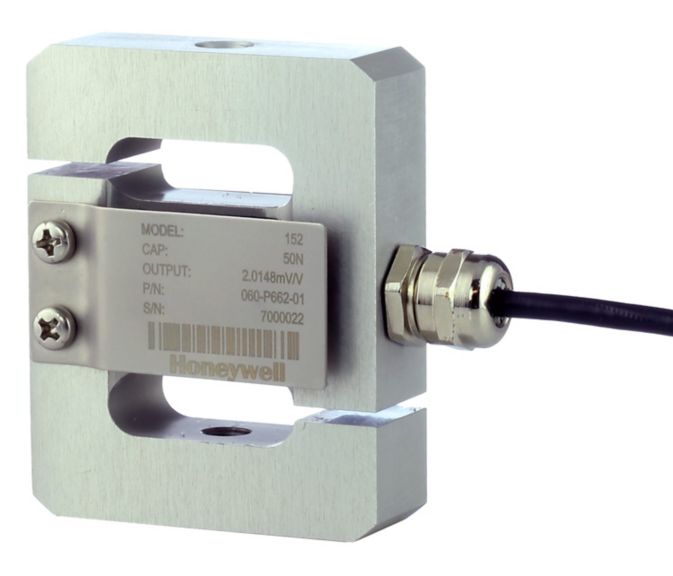

Model 152
S-type/z-beam load cells. Capacities of 5 N to 50K N. ±0.03% full-scale accuracy. Aluminum case.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell Models 151/152 S-Beam Load Cells combine compact structure with enhanced precision and rigorous testing to form a reliable and durable tension and compression force transducer. The one-piece design achieves an accuracy of ±0.03 % full scale. The lower capacity (50 N and 100 N) Models 152 (Order Code CA152) are constructed from aluminum: whereas higher capacity load cells Models 151 (250 N to 50K N) are made with alloy steel (Order Code CA151). Models 151/152 load cells help keep equipment and specimens safe, as well as minimize test time and maintenance through reliable force measurement.
Value to Customers
- Wide capacity range: 50 N to 50K N
- Standard accuracy of ±0.03 %FS
- 5-points calibration in tension and compression
Differentiators
- Tension and compression calibration
- 5-points calibration data
- Mechanical shock tested 50 g peak to IEC 60068-2-27
- Vibration tested to IEC 60068-2-6
