Thermostats

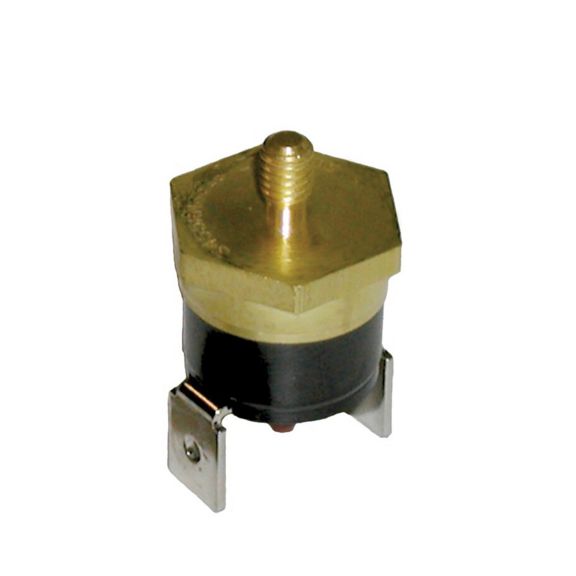

3455RM Series
High current. Manual. Phenolic. Open on rise. 15 A/10 A. Silver/nickel-alloy contacts. Rivet sleeve. UL, CSA, VDE.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 3455RM Series consists of a temperature-sensitive bimetal disc, electrically isolated from the switch, which actuates the normally closed contacts. The contacts open when the surface or ambient temperatures increase to the operating snap point of the calibrated disc. The circuit will stay open above room ambient temperature until the manual reset button is pressed. Response to temperature changes is extremely rapid due to the inherently low mass of the disc and the small size of the product.
Specifications
Technical Specifications
- Amperage
- 10 to 15 A ampere
- Thermostat Type
- SPST
- Thermostat Control Type
- Snap-Action
- Reset Type
- Manual
- Mounting Type
- Bracket
Electrical Specifications
- Voltage
- 120 to 250 voltage alternating current
Features
- Tolerance
- ±4 to 6
- Color
- Phenolic
Material Specifications
- Terminals Material
- Plated Brass
- Steel
- Unplated Brass
- Enclosure Material
- Aluminum
- Brass
- Stainless Steel
- Contact Material
- Silver Alloy
- Brackets Material
- Aluminum
- Stainless Steel
- Base Material
- Phenolic
Standards & Certifications
- Standards & Certifications
- CSA
- UL
Overview
- Brand
- Honeywell
Applications & Compatibility
- Application
- HVAC Equipment
- Heat Detectors
- Major Appliances
- Medical Equipment
- Office Copy Machines
Technical Specifications
- Amperage
- 10 to 15 A ampere
- Thermostat Type
- SPST
- Thermostat Control Type
- Snap-Action
- Reset Type
- Manual
- Mounting Type
- Bracket
Electrical Specifications
- Voltage
- 120 to 250 voltage alternating current
Features
- Tolerance
- ±4 to 6
- Color
- Phenolic
Material Specifications
- Terminals Material
- Plated Brass
- Steel
- Unplated Brass
- Enclosure Material
- Aluminum
- Brass
- Stainless Steel
- Contact Material
- Silver Alloy
- Brackets Material
- Aluminum
- Stainless Steel
- Base Material
- Phenolic
Standards & Certifications
- Standards & Certifications
- CSA
- UL
Overview
- Brand
- Honeywell
Applications & Compatibility
- Application
- HVAC Equipment
- Heat Detectors
- Major Appliances
- Medical Equipment
- Office Copy Machines
- Amperage : 10 to 15 A ampere
- Voltage : 120 to 250 voltage alternating current
- Tolerance : ±4 to 6
- Thermostat Type : SPST
- Thermostat Control Type : Snap-Action
- Terminals Material : Plated Brass|Steel|Unplated Brass
- Standards & Certifications : CSA|UL
- Reset Type : Manual
- Mounting Type : Bracket
- Enclosure Material : Aluminum|Brass|Stainless Steel
- Contact Material : Silver Alloy
- Color : Phenolic
- Brand : Honeywell
- Brackets Material : Aluminum|Stainless Steel
- Base Material : Phenolic
- Application : HVAC Equipment|Heat Detectors|Major Appliances|Medical Equipment|Office Copy Machines
