    Speed Sensors

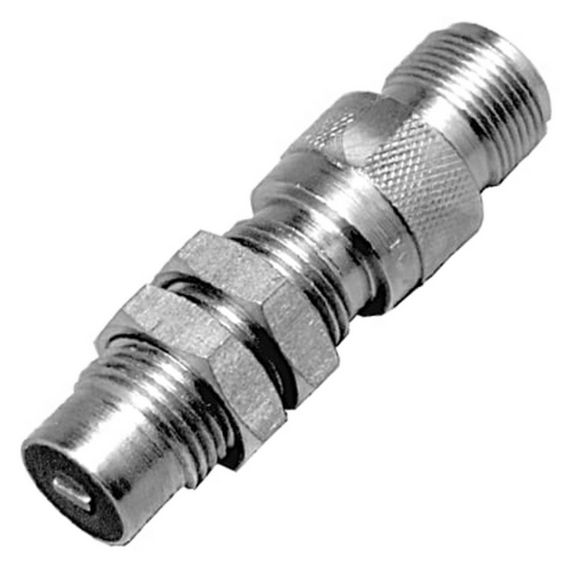

    VRS High Resolution Series

    Precise timing pulse required, and/or fine pitch gears used

    Overview

    High Resolution VRS sensors are designed for use in applications where precise timing pulse is required, and/or fine pitch gears are used. Proper alignment of the sensor is required.

    • Self-powered operation
    • Direct conversion of actuator speed to output frequency
    • Simple installation
    • No moving parts
    • Designed for use over a wide range of speeds
    • Adaptable to a wide variety of configurations
    • Customized VRS products for unique speed sensing applications
    • Housing diameters: 5/8 in (M16) 3/8 in (M12)
    • Housing material/style: stainless steel threaded
    • Terminations: MS3106 connector, preleaded
    • Output voltages: 17 Vp-p to 170 Vp-p
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    High Resolution Industrial VRS Magnetic Speed Sensors
    application/pdf 276.36 KB
    7/16/2021
    276.36 KB
