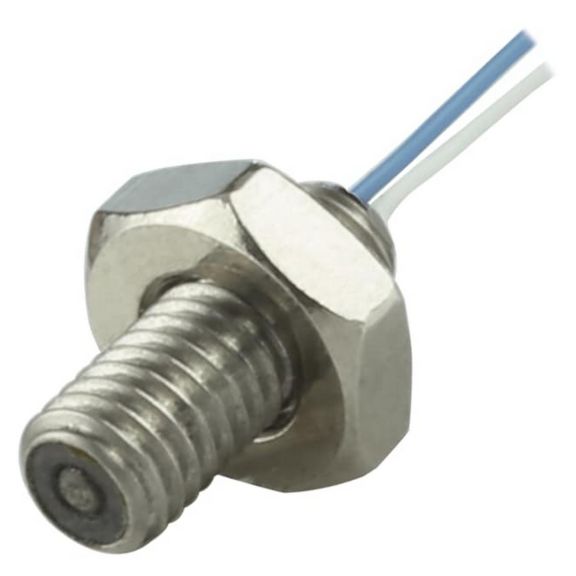

Speed Sensors
VRS General Purpose Series
Medium to high speeds or in electrically noisy environments with relatively small air gaps
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
General Purpose VRS sensors are designed for use in applications with medium to high speeds or in electrically noisy environments with relatively small air gaps.
- Self-powered operation
- Direct conversion of actuator speed to output frequency
- Simple installation
- No moving parts
- Designed for use over a wide range of speeds
- Adaptable to a wide variety of configurations
- Customized VRS products for unique speed sensing applications
- Housing diameters: 5/8 in (M16), 3/8 in (M12) mm, 1/4 in (M8), 10/32 in
- Housing materials/styles: stainless steel threaded or smooth
- Terminations: MS3106 connector, preleaded
- Output voltages: 8 Vp-p to 40 Vp-p
Data Sheet
Name
Description
File Size
Date
Size
General Purpose Series Industrial VRS Magnetic Speed Sensors
application/pdf 156.08 KB
7/16/2021
156.08 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Technical Note
Name
Description
File Size
Date
Size
VRS Output Voltage Calculations
application/pdf 46.78 KB
7/16/2021
46.78 KB
Application Note
Name
Description
File Size
Date
Size
VRS Industrial Magnetic Speed Sensors Application Note
application/pdf 537.58 KB
7/16/2021
537.58 KB
VRS Sensor Application Notes
application/pdf 102.75 KB
7/16/2021
102.75 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
12/20/2022
2.54 MB
Name
Description
File Size
Date
Size
VRS Industrial Magnetic Speed Sensors Application Note
application/pdf 537.58 KB
7/16/2021
537.58 KB
VRS Sensor Application Notes
application/pdf 102.75 KB
7/16/2021
102.75 KB
VRS Output Voltage Calculations
application/pdf 46.78 KB
7/16/2021
46.78 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
12/20/2022
2.54 MB
General Purpose Series Industrial VRS Magnetic Speed Sensors
application/pdf 156.08 KB
7/16/2021
156.08 KB
Name
Description
File Size
Date
Size
General Purpose Series Industrial VRS Magnetic Speed Sensors
156.08 KB
7/16/2021
VRS Industrial Magnetic Speed Sensors Application Note
537.58 KB
7/16/2021
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
3010AN
General Purpose VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 40 Vp-p, -55 ºC to 120 ºC [-67 ºF to 250 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 56 mm [2.20 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010AN
General Purpose VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 40 Vp-p, -55 ºC to 120 ºC [-67 ºF to 250 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 56 mm [2.20 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010AN40
General Purpose VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 40 Vp-p, -55 ºC to 120 ºC [-67 ºF to 250 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 130 mm [5.10 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010AN40
General Purpose VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 40 Vp-p, -55 ºC to 120 ºC [-67 ºF to 250 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 130 mm [5.10 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010AN50
General Purpose VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 40 Vp-p, -55 ºC to 120 ºC [-67 ºF to 250 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 156 mm [6.10 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010AN50
General Purpose VRS Sensor, 15,9 mm [0.625 in] M16 diameter, 40 Vp-p, -55 ºC to 120 ºC [-67 ºF to 250 ºF], 24 DP (module 1.06) or coarser, 50 kHz, 156 mm [6.10 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010S20
VRS SPEED SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3010S20
VRS SPEED SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3014
High Resolution VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 17 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 36 DP (module 0.70) or coarser, 60 kHz, 32 mm [1.25 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-resolution-series-ciid-160965
3014
High Resolution VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 17 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 36 DP (module 0.70) or coarser, 60 kHz, 32 mm [1.25 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-high-resolution-series-ciid-160965
3015A
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 32 mm [1.25 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015A
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 32 mm [1.25 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015A17
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 55 mm [2.15 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015A17
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 55 mm [2.15 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015A35
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 100 mm [3.95 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015A35
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 100 mm [3.95 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015S13
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 31 mm [1.20 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3015S13
General Purpose VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 20 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 50 kHz, 31 mm [1.20 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ind-vrs-general-purpose-series-ciid-161015
3025
High Output VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 55 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 40 kHz, 32 mm [1.25 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-vrs-high-output-series-ciid-160947
3025
High Output VRS Sensor, 9,5 mm [0.375 in] M12 diameter, 55 Vp-p, -40 ºC to 107 ºC [-40 ºF to 225 ºF], 26 DP (module 0.98) or coarser, 40 kHz, 32 mm [1.25 in] approx. length
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-vrs-high-output-series-ciid-160947
