Fixed Flame Detectors
FS24X Plus
Triple IR Flame Detector
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

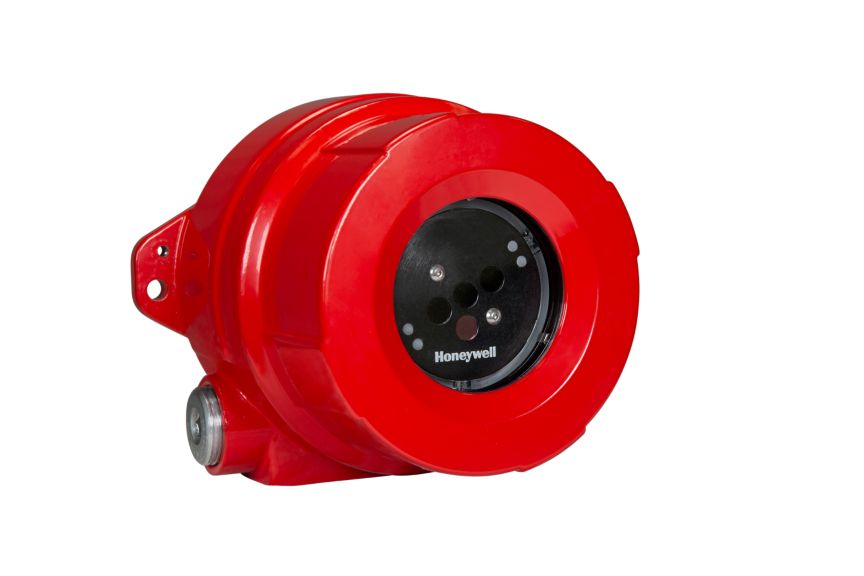

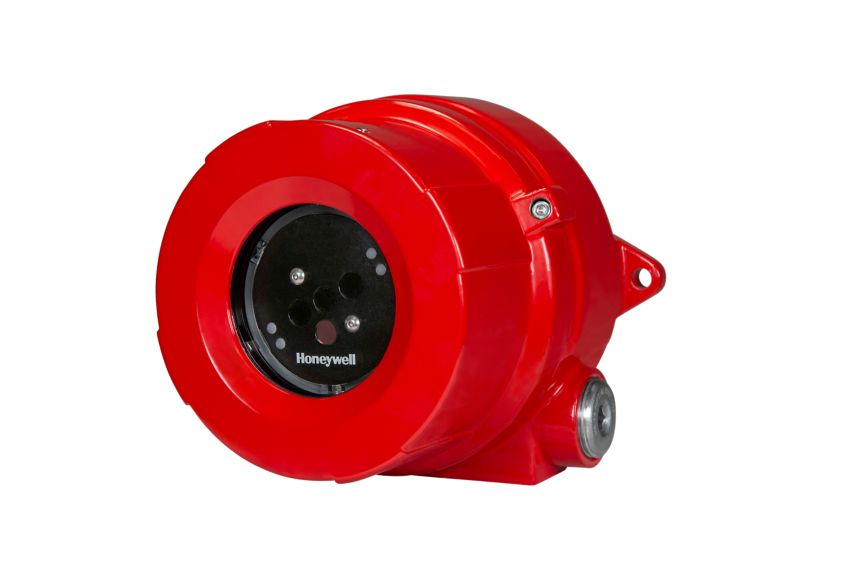

The FS24X Plus is a triple IR flame detector using Honeywell’s WideBand IR™ infrared technology to detect hydrocarbon and hydrogen fires quickly and reliably — before they grow — even in the presence of environmental inhibitors like rain, fog, and smoke.Designed for hazardous locations, the FS24X Plus has several marine certifications and is SIL2 rated for safety instrumented system applications.Features & Benefits:
- Reliable Detection
- Fast response to a wide range of hydrocarbon and hydrogen fires even in low visibility conditions
- Advanced diagnostics including window clarity to maintain site protection Easy to Use
- Sunshade and standard or marine mounting bracket included for quickly and easily positioning the detector in an optimal location.
- Powerful FlameManager software replaces legacy dip switches for detector configuration and provides simplified diagnostics and post event FirePics™.

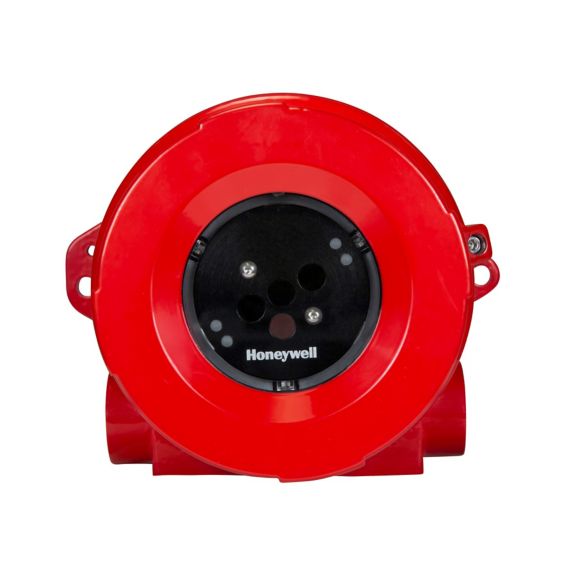

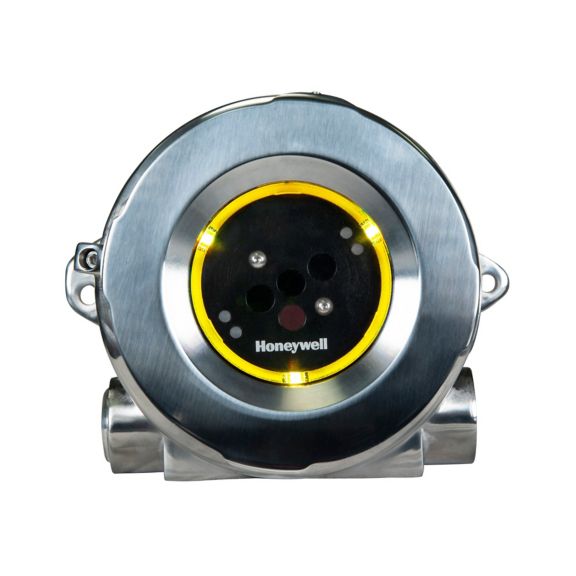

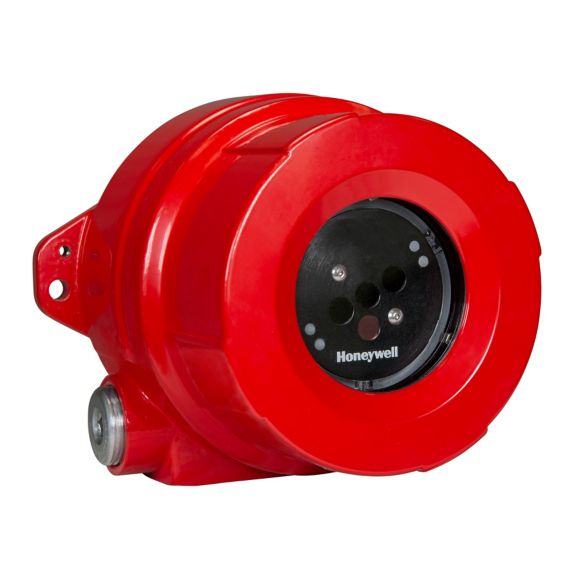

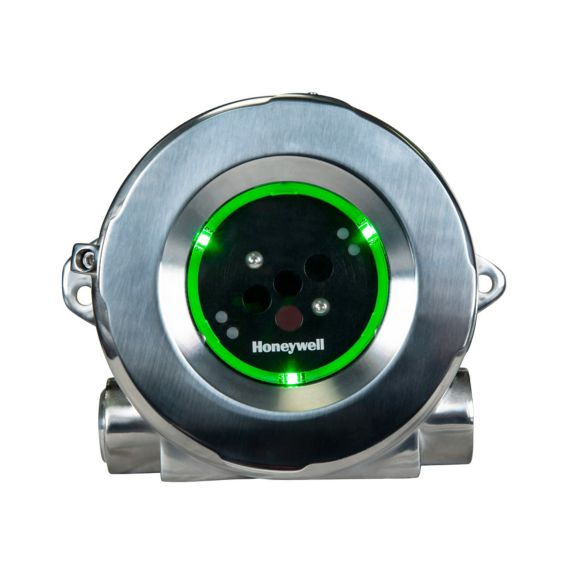

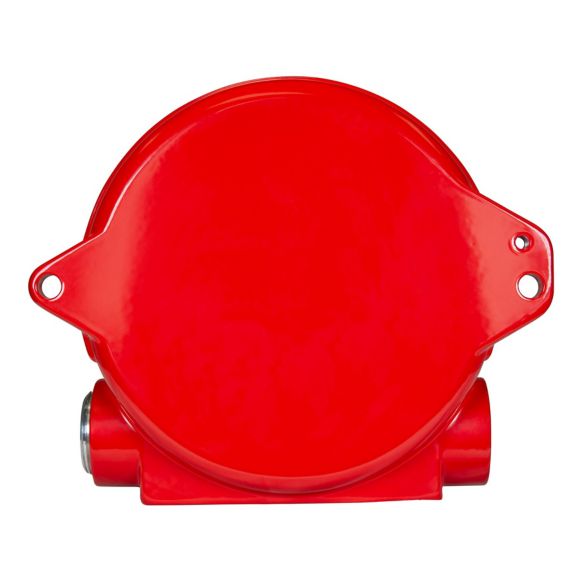

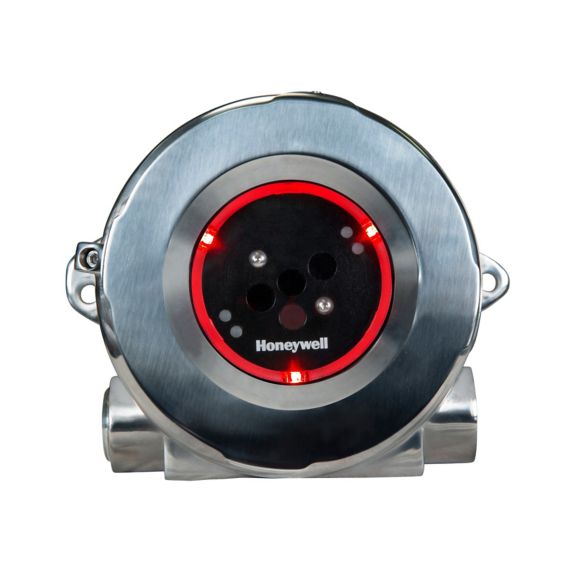

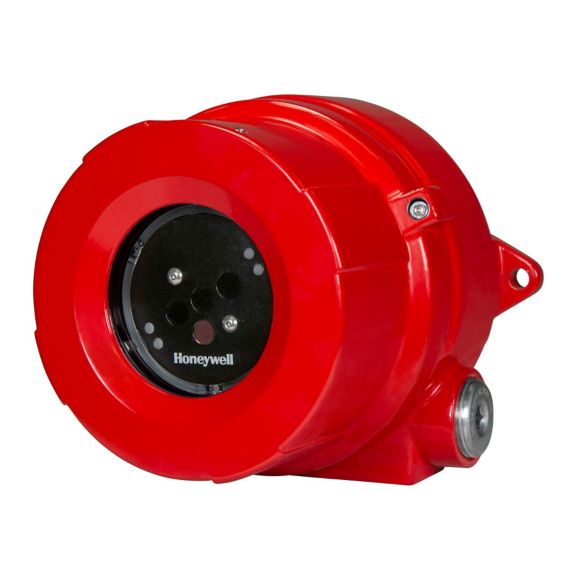

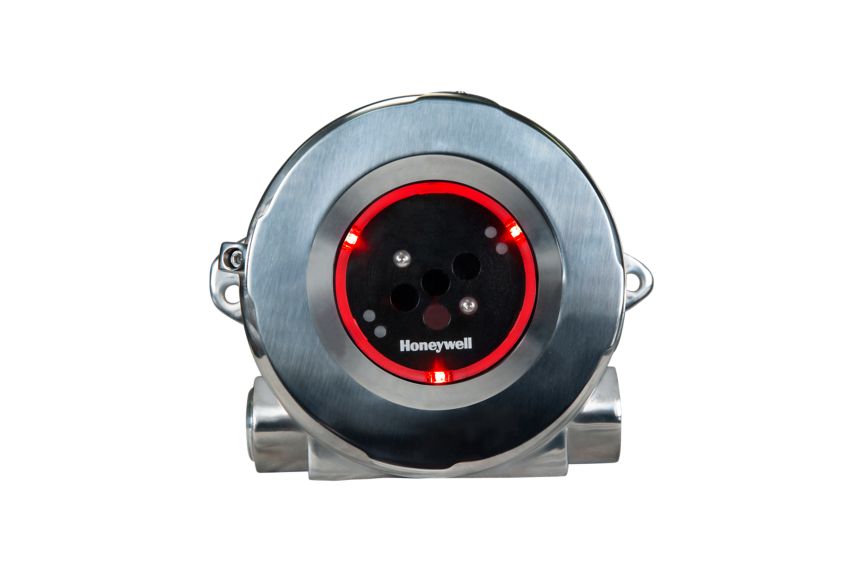

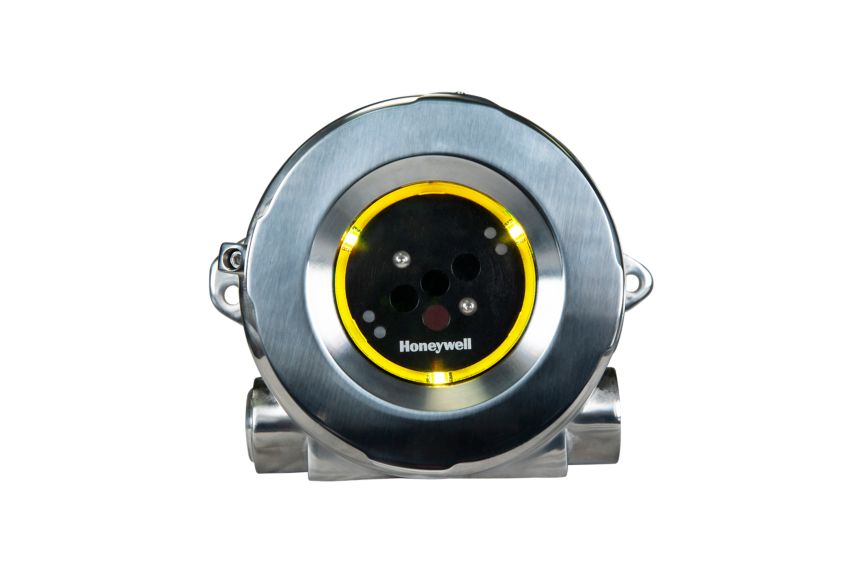

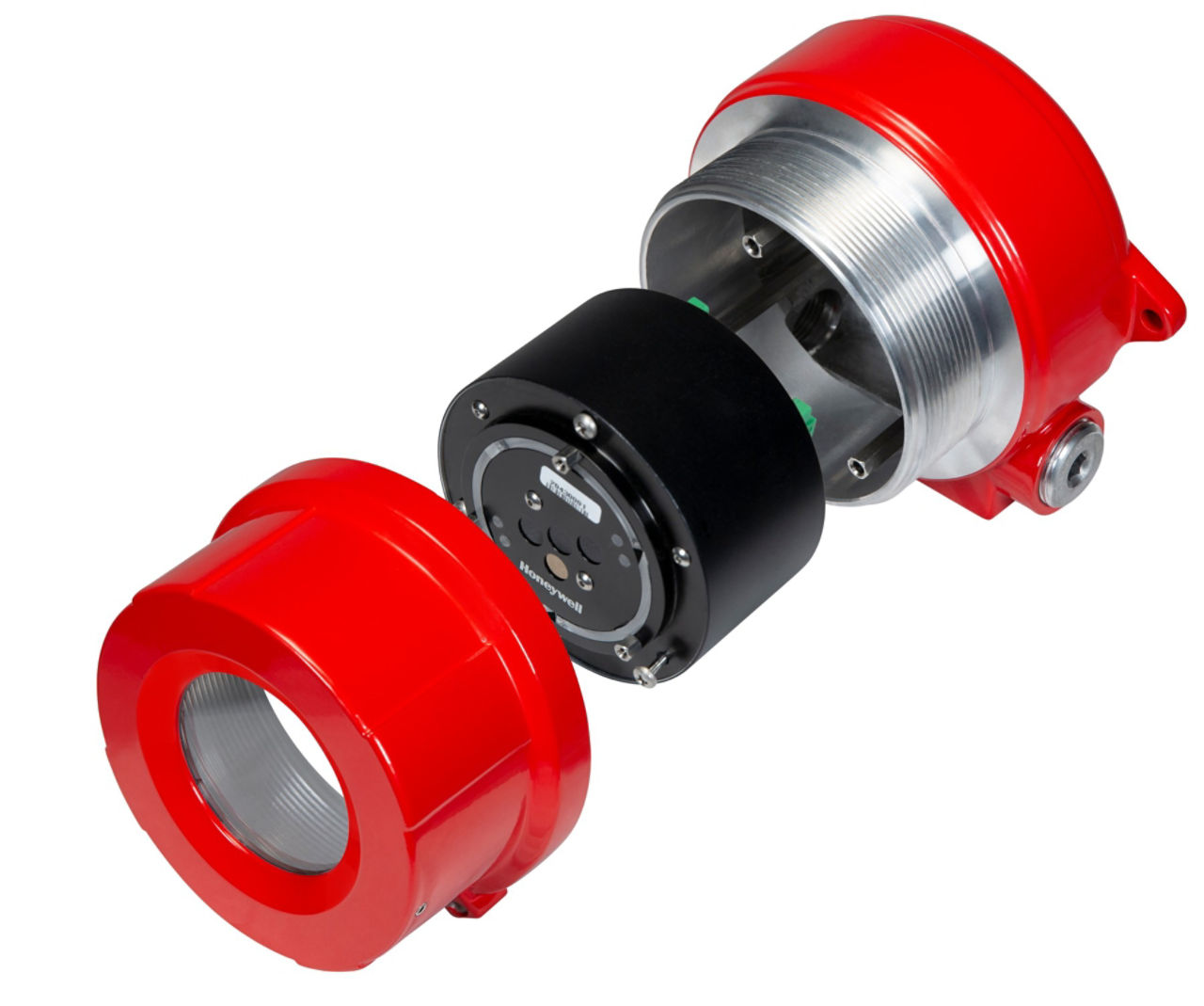

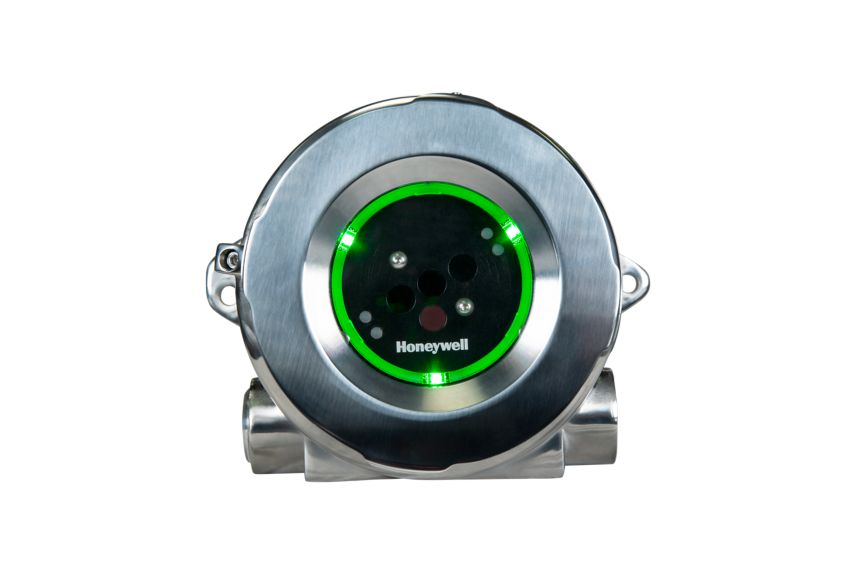

- High Visibility, Multi Color LED HALO ring provides clear indication of device status from up to 50ft (15m) away, even in bright outdoor environments
- Long-range, wide-angle sensors detect fires at 200ft (60m) for 1ft2 (0.1m2) n-Heptane
- Multiple outputs including 4-20mA, Relays, HART®, and Modbus communication all standard
- Responds to a wide range of hydrocarbon fires such as n-Heptane, Methane, Butane, Propane, Ethanol, Methanol, Diesel, Kerosene, JP-4, and IPA as well as Hydrogen
- Speed of response typically 5 seconds
