    Handheld Computers

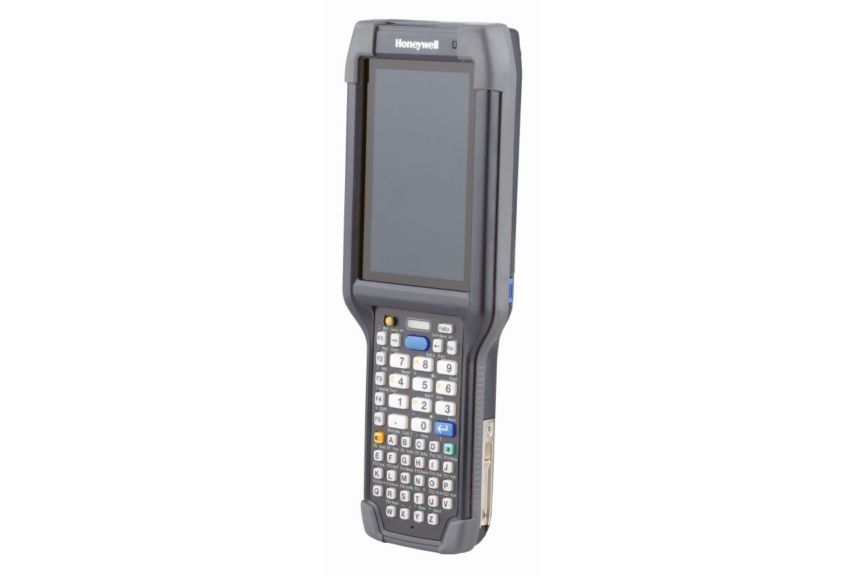

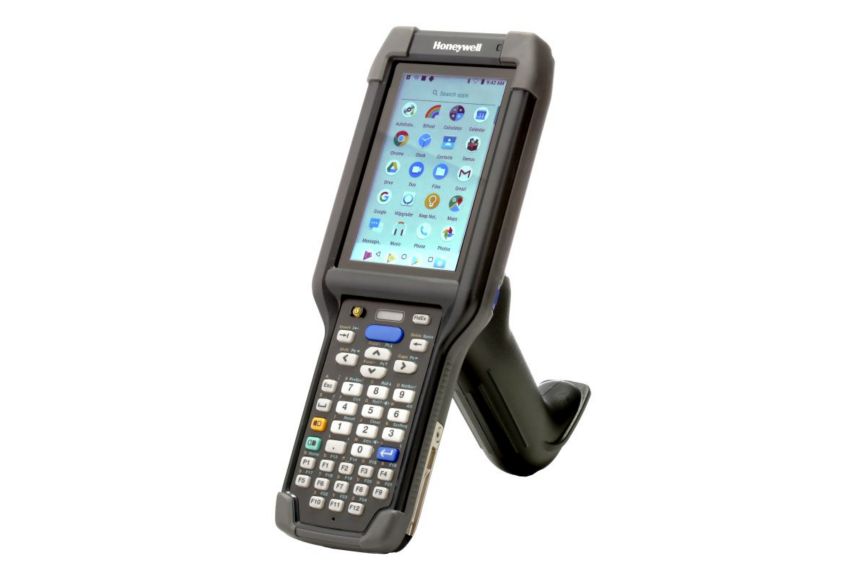

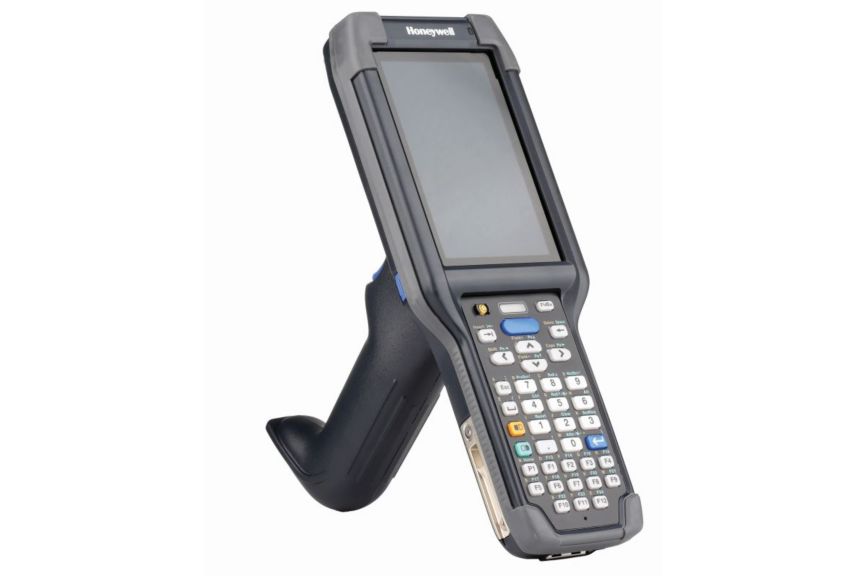

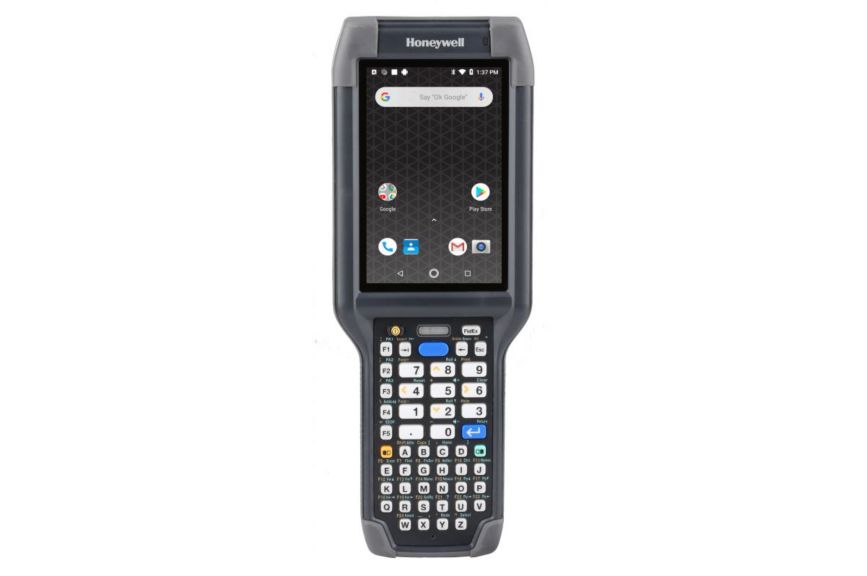

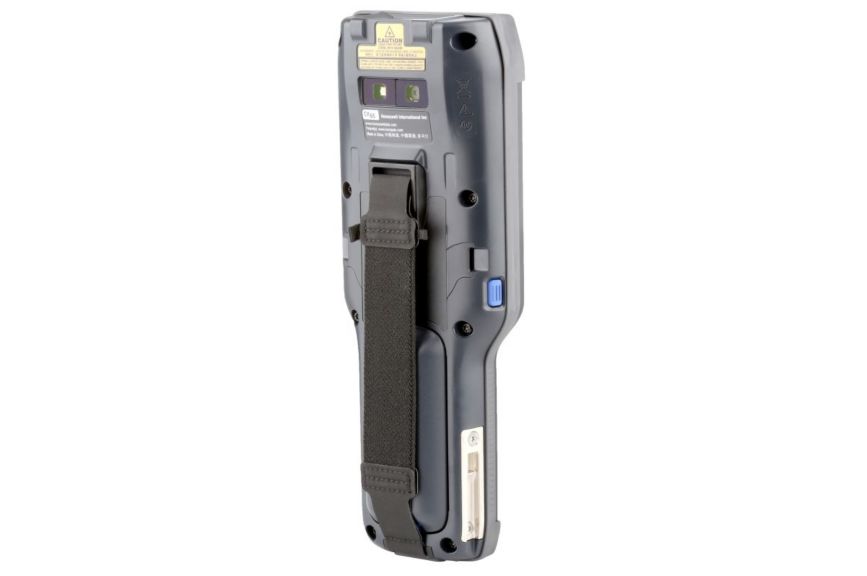

    CK65 Handheld Computer

    The CK65 mobile computer boosts supply chain productivity by accelerating and error-proofing work in distribution centers and manufacturing.

    Overview
    Support Where To Buy Contact us
    Powerfully Reliable
    • The CK65 is built on the Mobility Edge™ platform, a durable, stable and secure foundation for effective, long-lasting solutions.
    • The CK65 is a recipient of the prestigious STIG (Security Technical Implementation Guide) designation from the Defense Information Systems Agency (DISA) for its security capabilities. This recognition from DISA and the U.S. Department of Defense acknowledges the advanced security applications and tools the CK65 encompasses, ensuring your data is kept safe and secure throughout the life of the device.
    • The CK65 device provides future-proof investment protection with support for four Android generations, starting with Android 8 (O). Security updates are also available for up to two years after the last Google patch through Honeywell Sentinel.
    Optimized Ergonomics
    • The perfect blend of keypad and touchscreen, ergonomics and durability, the CK65 is light enough to be used all day yet durable enough to withstand the wear and tear of daily use in rigorous workflows.
    • The CK65 features Honeywell’s latest imaging technology with the FlexRange XLR scan engine. The FlexRange XLR scan engine allows the CK65 to be used in quick, up-close scan operations, while still maintaining accuracy and speedy scanning at distances of up to 80 feet.
    • The large touchscreen is accompanied by a 51 or 53-key alphanumeric, 38 or 42-key numeric function, or 30-key large numeric keypads to support legacy key-centric and newer touch applications. Keypads allow workers to optimize the efficiency of data entry in many environments.
    Ultra Durable
    • The CK65’s ruggedized construction withstands multiple 3 m (10 ft) drops to concrete across the temperature range and 3,000 1.0 m (3.3 ft) tumbles. IP65 and IP68 ratings against dust and water spray.
    • The CK65 even offers cold storage models for freezer environments and non-incendive (NI)/ATEX models for areas with hazardous gasses.
    • Equipped with a 7,000-mAh extended smart battery, the CK65 is capable of up to 28 hours* of continuous operation so workers can maintain optimal productivity.
    * 28-hour battery life test conditions: 1 scan every 10 seconds, backlight set to 50%, transaction sent to host & response received for each scan, BT off, good read beep enabled, volume set to 50%
    Specifications

    Features

    • Features
      • Long-Life Smart Battery
      • Ultra-Rugged
    • Housing Grade
      • Standard
    • Camera
      • Yes
    • Application
      • Distribution
      • Manufacturing
      • Order Picking

    Software & Firmware

    • Operating System
      • Android 10 upgradable to Android 14*

    Memory & Data

    • Memory
      • 32 GB Flash/2 GB RAM
      • 32 GB Flash/4 GB RAM

    Hardware

    • Display Resolution
      • 480 x 800
    • Processor
      • 2.2 GHz Qualcomm 64-bit Snapdragon octa-core
    • Display Size
      • 10.16 cm
      • 4 in

    Environmental

    • Operating Humidity
      • 0 - 95 %
    • Storage Temperature Range
      • - 22 - 158 °F
      • - 30 - 70 °C
    • Operating temperature
      • - 20 - 50 °C
      • - 4 - 122 °F

    Standards & Approvals

    • Tumble Specifications
      • 3000 1.0 m (3.3 ft) tumbles
    • Drop Specifications
      • 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range

    Service Terms

    • Warranty Duration
      • 1 yr

    ERP

    • Brand
      • Honeywell

    Others

    • Camera Position
      • Rear
    • Scan Range
      • FlexRange FR
      • Long Range
      • Standard Range
    • Network
      • WLAN
    • Platform
      • Mobility Edge
    • Operating System Type
      • Android
    • Durability
      • Ultra-Rugged 2.4 m (8 ft)

    Features

    • Features
      • Long-Life Smart Battery
      • Ultra-Rugged
    • Housing Grade
      • Standard
    • Camera
      • Yes
    • Application
      • Distribution
      • Manufacturing
      • Order Picking

    Software & Firmware

    • Operating System
      • Android 10 upgradable to Android 14*

    Memory & Data

    • Memory
      • 32 GB Flash/2 GB RAM
      • 32 GB Flash/4 GB RAM

    Hardware

    • Display Resolution
      • 480 x 800
    • Processor
      • 2.2 GHz Qualcomm 64-bit Snapdragon octa-core
    • Display Size
      • 10.16 cm
      • 4 in

    Environmental

    • Operating Humidity
      • 0 - 95 %
    • Storage Temperature Range
      • - 22 - 158 °F
      • - 30 - 70 °C
    • Operating temperature
      • - 20 - 50 °C
      • - 4 - 122 °F

    Standards & Approvals

    • Tumble Specifications
      • 3000 1.0 m (3.3 ft) tumbles
    • Drop Specifications
      • 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range

    Service Terms

    • Warranty Duration
      • 1 yr

    ERP

    • Brand
      • Honeywell

    Others

    • Camera Position
      • Rear
    • Scan Range
      • FlexRange FR
      • Long Range
      • Standard Range
    • Network
      • WLAN
    • Platform
      • Mobility Edge
    • Operating System Type
      • Android
    • Durability
      • Ultra-Rugged 2.4 m (8 ft)
    • Features : Long-Life Smart Battery|Ultra-Rugged
    • Housing Grade : Standard
    • Camera : Yes
    • Application : Distribution|Manufacturing|Order Picking
    • Operating System : Android 10 upgradable to Android 14*
    • Memory : 32 GB Flash/2 GB RAM|32 GB Flash/4 GB RAM
    • Display Resolution : 480 x 800
    • Processor : 2.2 GHz Qualcomm 64-bit Snapdragon octa-core
    • Display Size : 10.16 cm|4 in
    • Operating Humidity : 0 - 95 %
    • Storage Temperature Range : - 22 - 158 °F|- 30 - 70 °C
    • Operating temperature : - 20 - 50 °C|- 4 - 122 °F
    • Tumble Specifications : 3000 1.0 m (3.3 ft) tumbles
    • Drop Specifications : 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range
    • Warranty Duration : 1 yr
    • Brand : Honeywell
    • Camera Position : Rear
    • Scan Range : FlexRange FR|Long Range|Standard Range
    • Network : WLAN
    • Platform : Mobility Edge
    • Operating System Type : Android
    • Durability : Ultra-Rugged 2.4 m (8 ft)
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    CK65 Gen II Mobile Computer Data Sheet
    CK65 Gen II Mobile Computer Data Sheet
    application/pdf 257.85 KB
    10/31/2022
    257.85 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
    Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
    application/pdf 397.98 KB
    10/1/2024
    397.98 KB
    Security Addendum: Honeywell Mobile Computers with FIPS Certification (FIPS-EN-AD-01 Rev A)
    Security Addendum: Honeywell Mobile Computers with FIPS Certification (FIPS-EN-AD-01 Rev A)
    application/pdf 42.17 KB
    4/12/2024
    42.17 KB
    Quick Start Guide: CK65 - Arabic (CK65-A-AR-QS-01 Rev B)
    Quick Start Guide: CK65 - Arabic (CK65-A-AR-QS-01 Rev B)
    application/pdf 1 MB
    12/5/2023
    1 MB
    CK65/CK3X/CK3R Mobile Computer Accessories Guide
    CK65/CK3X/CK3R Mobile Computer Accessories Guide
    application/pdf 1.08 MB
    9/20/2023
    1.08 MB
    User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
    User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
    application/pdf 438.97 KB
    10/1/2024
    438.97 KB
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    application/pdf 1.74 MB
    10/1/2024
    1.74 MB
    User Guide: Enterprise Browser for Android (935-098-007 Rev C)
    User Guide: Enterprise Browser for Android (935-098-007 Rev C)
    application/pdf 626.07 KB
    10/1/2024
    626.07 KB
    User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
    User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
    application/pdf 656.38 KB
    10/1/2024
    656.38 KB
    User Guide: CK65 (CK65-A-EN-UG-01 Rev R)
    User Guide: CK65 (CK65-A-EN-UG-01 Rev R)
    application/pdf 8.7 MB
    9/26/2024
    8.7 MB
    CK65/CK3 Multidock (AD21/AD22) Instructions (943-172-004 Rev A)
    CK65/CK3 Multidock (AD21/AD22) Instructions (943-172-004 Rev A)
    application/pdf 503.62 KB
    7/14/2021
    503.62 KB
    User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev H)
    User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev H)
    application/pdf 764.2 KB
    10/1/2024
    764.2 KB
    Quick Start Guide: CK65 (CK65-A-EN-QS-01 Rev M)
    Quick Start Guide: CK65 (CK65-A-EN-QS-01 Rev M)
    application/pdf 1.01 MB
    12/5/2023
    1.01 MB
    User Guide: Launcher for Android (934-087-006 Rev C)
    User Guide: Launcher for Android (934-087-006 Rev C)
    application/pdf 242.36 KB
    10/1/2024
    242.36 KB
    User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
    User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
    application/pdf 1.35 MB
    10/1/2024
    1.35 MB
    Quick Start Guide: CK65 NI/ATEX (CK65-HZ-A-EN-QS-01 Rev J)
    Quick Start Guide: CK65 NI/ATEX (CK65-HZ-A-EN-QS-01 Rev J)
    application/pdf 1.81 MB
    3/6/2024
    1.81 MB
    Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
    Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
    application/pdf 181.21 KB
    10/1/2024
    181.21 KB
    User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
    User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
    application/pdf 2.18 MB
    10/23/2024
    2.18 MB
    CK65 Protective Boot Instructions (CK65-BT-ML-IN-01 Rev A)
    CK65 Protective Boot Instructions (CK65-BT-ML-IN-01 Rev A)
    application/pdf 284.32 KB
    7/14/2021
    284.32 KB
    CK65/CK3 Scan Handle Instructions (CK65-SH-ML-IN-01 Rev B)
    CK65/CK3 Scan Handle Instructions (CK65-SH-ML-IN-01 Rev B)
    application/pdf 252.11 KB
    7/14/2021
    252.11 KB
    CK65/CK3 Single Dock (AD20) Instructions (943-171-005 Rev B)
    CK65/CK3 Single Dock (AD20) Instructions (943-171-005 Rev B)
    application/pdf 1.13 MB
    10/1/2024
    1.13 MB
    CK65/CK3 Vehicle Dock (AV10) Instructions (943-174-003 Rev A)
    CK65/CK3 Vehicle Dock (AV10) Instructions (943-174-003 Rev A)
    application/pdf 525.05 KB
    7/14/2021
    525.05 KB
    CK65/CK3 Quad Charger (AC20) Instructions (943-173-005 Rev B)
    CK65/CK3 Quad Charger (AC20) Instructions (943-173-005 Rev B)
    application/pdf 1.01 MB
    10/1/2024
    1.01 MB
    CK65 Universal Accessories (CK65-CB,CK65-NB) User Guide (CK65-UV-EN-UG-01 Rev A)
    CK65 Universal Accessories (CK65-CB,CK65-NB) User Guide (CK65-UV-EN-UG-01 Rev A)
    application/pdf 467.86 KB
    7/14/2021
    467.86 KB
    Regulatory Information
    Name
    Description
    File Size
    Date
    Size
    CK70/CK71 Computer and CK70/CK71/CK3/CK65 Battery Adapter Compliance Insert (933-240-004 Rev A)
    CK70/CK71 Computer and CK70/CK71/CK3/CK65 Battery Adapter Compliance Insert (933-240-004 Rev A)
    application/pdf 695.17 KB
    7/14/2021
    695.17 KB
    Regulatory Sheet: CK65/CK67 Charge Base/Net Base (CK65-ACC-ML-RS-03 Rev A)
    Regulatory Sheet: CK65/CK67 Charge Base/Net Base (CK65-ACC-ML-RS-03 Rev A)
    application/pdf 1011.56 KB
    10/1/2024
    1011.56 KB
    CK3 Series Vehicle Dock (AV10) Compliance Insert (933-158-006 Rev A)
    CK3 Series Vehicle Dock (AV10) Compliance Insert (933-158-006 Rev A)
    application/pdf 1.71 MB
    7/14/2021
    1.71 MB
    Compliance Insert: AD20, CK3/CK65 Single Dock (933-155-008 Rev A)
    Compliance Insert: AD20, CK3/CK65 - Single Dock (933-155-008 Rev A)
    application/pdf 1.71 MB
    11/22/2024
    1.71 MB
    Regulatory Sheet: CK65 (CK65-ML-RS-06 Rev A)
    Regulatory Sheet: CK65 (CK65-ML-RS-06 Rev A)
    application/pdf 2.46 MB
    12/5/2022
    2.46 MB
    Compliance Insert: AC20, CK3/CK65 Battery Quad Charger (933-157-008 Rev A)
    Compliance Insert: AC20, CK3/CK65 - Battery Quad Charger (933-157-008 Rev A)
    application/pdf 1.68 MB
    11/22/2024
    1.68 MB
    CK3 Series Multidock (AD21/AD22) Compliance Insert (933-156-008 Rev A)
    CK3 Series Multidock (AD21/AD22) Compliance Insert (933-156-008 Rev A)
    application/pdf 1.86 MB
    7/14/2021
    1.86 MB
    Battery Pack Information: Model CK65-BTSC/CK65-BTCS (CK65-BTSC-ML-IN-04 Rev A)
    Battery Pack Information: Model CK65-BTSC/CK65-BTCS (CK65-BTSC-ML-IN-04 Rev A)
    application/pdf 479.59 KB
    10/1/2024
    479.59 KB
    CK3/CK65 Series Computer Adapter Compliance Insert (933-216-003 Rev A)
    CK3/CK65 Series Computer Adapter Compliance Insert (933-216-003 Rev A)
    application/pdf 716.67 KB
    7/14/2021
    716.67 KB
    Desktop and Charge-Only Dual Base Compliance Insert (933-214-011 Rev A)
    Desktop and Charge-Only Dual Base Compliance Insert (933-214-011 Rev A)
    application/pdf 1.24 MB
    7/14/2021
    1.24 MB
    AB17/AB18 Battery Information (943-175-009 Rev A)
    AB17/AB18 Battery Information (943-175-009 Rev A)
    application/pdf 438.59 KB
    7/14/2021
    438.59 KB
    Quad Base Compliance Insert (933-238-011 Rev A)
    Quad Base Compliance Insert (933-238-011 Rev A)
    application/pdf 1.35 MB
    7/14/2021
    1.35 MB
    Dual Base Compliance Insert (933-215-008 Rev A)
    Dual Base Compliance Insert (933-215-008 Rev A)
    application/pdf 1.33 MB
    7/14/2021
    1.33 MB
    White Paper
    Name
    Description
    File Size
    Date
    Size
    White Paper: Battery Maintenance for Portable Devices - English
    White Paper: Battery Maintenance for Portable Devices - English
    application/pdf 332.35 KB
    10/1/2024
    332.35 KB
    Brief
    Name
    Description
    File Size
    Date
    Size
    Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
    Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
    application/pdf 70.58 KB
    10/1/2024
    70.58 KB
    Name
    Description
    File Size
    Date
    Size
    CK70/CK71 Computer and CK70/CK71/CK3/CK65 Battery Adapter Compliance Insert (933-240-004 Rev A)
    CK70/CK71 Computer and CK70/CK71/CK3/CK65 Battery Adapter Compliance Insert (933-240-004 Rev A)
    application/pdf 695.17 KB
    7/14/2021
    695.17 KB
    Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
    Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
    application/pdf 397.98 KB
    10/1/2024
    397.98 KB
    Security Addendum: Honeywell Mobile Computers with FIPS Certification (FIPS-EN-AD-01 Rev A)
    Security Addendum: Honeywell Mobile Computers with FIPS Certification (FIPS-EN-AD-01 Rev A)
    application/pdf 42.17 KB
    4/12/2024
    42.17 KB
    Quick Start Guide: CK65 - Arabic (CK65-A-AR-QS-01 Rev B)
    Quick Start Guide: CK65 - Arabic (CK65-A-AR-QS-01 Rev B)
    application/pdf 1 MB
    12/5/2023
    1 MB
    CK65/CK3X/CK3R Mobile Computer Accessories Guide
    CK65/CK3X/CK3R Mobile Computer Accessories Guide
    application/pdf 1.08 MB
    9/20/2023
    1.08 MB
    User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
    User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
    application/pdf 438.97 KB
    10/1/2024
    438.97 KB
    Regulatory Sheet: CK65/CK67 Charge Base/Net Base (CK65-ACC-ML-RS-03 Rev A)
    Regulatory Sheet: CK65/CK67 Charge Base/Net Base (CK65-ACC-ML-RS-03 Rev A)
    application/pdf 1011.56 KB
    10/1/2024
    1011.56 KB
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    application/pdf 1.74 MB
    10/1/2024
    1.74 MB
    Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
    Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
    application/pdf 70.58 KB
    10/1/2024
    70.58 KB
    White Paper: Battery Maintenance for Portable Devices - English
    White Paper: Battery Maintenance for Portable Devices - English
    application/pdf 332.35 KB
    10/1/2024
    332.35 KB
    CK3 Series Vehicle Dock (AV10) Compliance Insert (933-158-006 Rev A)
    CK3 Series Vehicle Dock (AV10) Compliance Insert (933-158-006 Rev A)
    application/pdf 1.71 MB
    7/14/2021
    1.71 MB
    Compliance Insert: AD20, CK3/CK65 Single Dock (933-155-008 Rev A)
    Compliance Insert: AD20, CK3/CK65 - Single Dock (933-155-008 Rev A)
    application/pdf 1.71 MB
    11/22/2024
    1.71 MB
    Regulatory Sheet: CK65 (CK65-ML-RS-06 Rev A)
    Regulatory Sheet: CK65 (CK65-ML-RS-06 Rev A)
    application/pdf 2.46 MB
    12/5/2022
    2.46 MB
    Compliance Insert: AC20, CK3/CK65 Battery Quad Charger (933-157-008 Rev A)
    Compliance Insert: AC20, CK3/CK65 - Battery Quad Charger (933-157-008 Rev A)
    application/pdf 1.68 MB
    11/22/2024
    1.68 MB
    CK3 Series Multidock (AD21/AD22) Compliance Insert (933-156-008 Rev A)
    CK3 Series Multidock (AD21/AD22) Compliance Insert (933-156-008 Rev A)
    application/pdf 1.86 MB
    7/14/2021
    1.86 MB
    User Guide: Enterprise Browser for Android (935-098-007 Rev C)
    User Guide: Enterprise Browser for Android (935-098-007 Rev C)
    application/pdf 626.07 KB
    10/1/2024
    626.07 KB
    Battery Pack Information: Model CK65-BTSC/CK65-BTCS (CK65-BTSC-ML-IN-04 Rev A)
    Battery Pack Information: Model CK65-BTSC/CK65-BTCS (CK65-BTSC-ML-IN-04 Rev A)
    application/pdf 479.59 KB
    10/1/2024
    479.59 KB
    User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
    User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
    application/pdf 656.38 KB
    10/1/2024
    656.38 KB
    User Guide: CK65 (CK65-A-EN-UG-01 Rev R)
    User Guide: CK65 (CK65-A-EN-UG-01 Rev R)
    application/pdf 8.7 MB
    9/26/2024
    8.7 MB
    CK65/CK3 Multidock (AD21/AD22) Instructions (943-172-004 Rev A)
    CK65/CK3 Multidock (AD21/AD22) Instructions (943-172-004 Rev A)
    application/pdf 503.62 KB
    7/14/2021
    503.62 KB
    CK65 Gen II Mobile Computer Data Sheet
    CK65 Gen II Mobile Computer Data Sheet
    application/pdf 257.85 KB
    10/31/2022
    257.85 KB
    CK3/CK65 Series Computer Adapter Compliance Insert (933-216-003 Rev A)
    CK3/CK65 Series Computer Adapter Compliance Insert (933-216-003 Rev A)
    application/pdf 716.67 KB
    7/14/2021
    716.67 KB
    User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev H)
    User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev H)
    application/pdf 764.2 KB
    10/1/2024
    764.2 KB
    Quick Start Guide: CK65 (CK65-A-EN-QS-01 Rev M)
    Quick Start Guide: CK65 (CK65-A-EN-QS-01 Rev M)
    application/pdf 1.01 MB
    12/5/2023
    1.01 MB
    User Guide: Launcher for Android (934-087-006 Rev C)
    User Guide: Launcher for Android (934-087-006 Rev C)
    application/pdf 242.36 KB
    10/1/2024
    242.36 KB
    User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
    User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
    application/pdf 1.35 MB
    10/1/2024
    1.35 MB
    Quick Start Guide: CK65 NI/ATEX (CK65-HZ-A-EN-QS-01 Rev J)
    Quick Start Guide: CK65 NI/ATEX (CK65-HZ-A-EN-QS-01 Rev J)
    application/pdf 1.81 MB
    3/6/2024
    1.81 MB
    Desktop and Charge-Only Dual Base Compliance Insert (933-214-011 Rev A)
    Desktop and Charge-Only Dual Base Compliance Insert (933-214-011 Rev A)
    application/pdf 1.24 MB
    7/14/2021
    1.24 MB
    Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
    Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
    application/pdf 181.21 KB
    10/1/2024
    181.21 KB
    User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
    User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
    application/pdf 2.18 MB
    10/23/2024
    2.18 MB
    CK65 Protective Boot Instructions (CK65-BT-ML-IN-01 Rev A)
    CK65 Protective Boot Instructions (CK65-BT-ML-IN-01 Rev A)
    application/pdf 284.32 KB
    7/14/2021
    284.32 KB
    AB17/AB18 Battery Information (943-175-009 Rev A)
    AB17/AB18 Battery Information (943-175-009 Rev A)
    application/pdf 438.59 KB
    7/14/2021
    438.59 KB
    CK65/CK3 Scan Handle Instructions (CK65-SH-ML-IN-01 Rev B)
    CK65/CK3 Scan Handle Instructions (CK65-SH-ML-IN-01 Rev B)
    application/pdf 252.11 KB
    7/14/2021
    252.11 KB
    Quad Base Compliance Insert (933-238-011 Rev A)
    Quad Base Compliance Insert (933-238-011 Rev A)
    application/pdf 1.35 MB
    7/14/2021
    1.35 MB
    Dual Base Compliance Insert (933-215-008 Rev A)
    Dual Base Compliance Insert (933-215-008 Rev A)
    application/pdf 1.33 MB
    7/14/2021
    1.33 MB
    CK65/CK3 Single Dock (AD20) Instructions (943-171-005 Rev B)
    CK65/CK3 Single Dock (AD20) Instructions (943-171-005 Rev B)
    application/pdf 1.13 MB
    10/1/2024
    1.13 MB
    CK65/CK3 Vehicle Dock (AV10) Instructions (943-174-003 Rev A)
    CK65/CK3 Vehicle Dock (AV10) Instructions (943-174-003 Rev A)
    application/pdf 525.05 KB
    7/14/2021
    525.05 KB
    CK65/CK3 Quad Charger (AC20) Instructions (943-173-005 Rev B)
    CK65/CK3 Quad Charger (AC20) Instructions (943-173-005 Rev B)
    application/pdf 1.01 MB
    10/1/2024
    1.01 MB
    CK65 Universal Accessories (CK65-CB,CK65-NB) User Guide (CK65-UV-EN-UG-01 Rev A)
    CK65 Universal Accessories (CK65-CB,CK65-NB) User Guide (CK65-UV-EN-UG-01 Rev A)
    application/pdf 467.86 KB
    7/14/2021
    467.86 KB
    Name
    Description
    File Size
    Date
    Size
    CK65 Gen II Mobile Computer Data Sheet
    CK65 Gen II Mobile Computer Data Sheet
    257.85 KB
    10/31/2022
    Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
    Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
    397.98 KB
    10/1/2024
    Security Addendum: Honeywell Mobile Computers with FIPS Certification (FIPS-EN-AD-01 Rev A)
    Security Addendum: Honeywell Mobile Computers with FIPS Certification (FIPS-EN-AD-01 Rev A)
    42.17 KB
    4/12/2024
    Quick Start Guide: CK65 - Arabic (CK65-A-AR-QS-01 Rev B)
    Quick Start Guide: CK65 - Arabic (CK65-A-AR-QS-01 Rev B)
    1 MB
    12/5/2023
    CK65/CK3X/CK3R Mobile Computer Accessories Guide
    CK65/CK3X/CK3R Mobile Computer Accessories Guide
    1.08 MB
    9/20/2023
    User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
    User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
    438.97 KB
    10/1/2024
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    General Purpose Disinfectant-Ready Housing Devices Cleaning Guide
    1.74 MB
    10/1/2024
    User Guide: Enterprise Browser for Android (935-098-007 Rev C)
    User Guide: Enterprise Browser for Android (935-098-007 Rev C)
    626.07 KB
    10/1/2024
    User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
    User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
    656.38 KB
    10/1/2024
    User Guide: CK65 (CK65-A-EN-UG-01 Rev R)
    User Guide: CK65 (CK65-A-EN-UG-01 Rev R)
    8.7 MB
    9/26/2024
    CK65/CK3 Multidock (AD21/AD22) Instructions (943-172-004 Rev A)
    CK65/CK3 Multidock (AD21/AD22) Instructions (943-172-004 Rev A)
    503.62 KB
    7/14/2021
    User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev H)
    User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev H)
    764.2 KB
    10/1/2024
    Quick Start Guide: CK65 (CK65-A-EN-QS-01 Rev M)
    Quick Start Guide: CK65 (CK65-A-EN-QS-01 Rev M)
    1.01 MB
    12/5/2023
    User Guide: Launcher for Android (934-087-006 Rev C)
    User Guide: Launcher for Android (934-087-006 Rev C)
    242.36 KB
    10/1/2024
    User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
    User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
    1.35 MB
    10/1/2024
    Quick Start Guide: CK65 NI/ATEX (CK65-HZ-A-EN-QS-01 Rev J)
    Quick Start Guide: CK65 NI/ATEX (CK65-HZ-A-EN-QS-01 Rev J)
    1.81 MB
    3/6/2024
    Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
    Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
    181.21 KB
    10/1/2024
    User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
    User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
    2.18 MB
    10/23/2024
    CK65 Protective Boot Instructions (CK65-BT-ML-IN-01 Rev A)
    CK65 Protective Boot Instructions (CK65-BT-ML-IN-01 Rev A)
    284.32 KB
    7/14/2021
    CK65/CK3 Scan Handle Instructions (CK65-SH-ML-IN-01 Rev B)
    CK65/CK3 Scan Handle Instructions (CK65-SH-ML-IN-01 Rev B)
    252.11 KB
    7/14/2021
    CK65/CK3 Single Dock (AD20) Instructions (943-171-005 Rev B)
    CK65/CK3 Single Dock (AD20) Instructions (943-171-005 Rev B)
    1.13 MB
    10/1/2024
    CK65/CK3 Vehicle Dock (AV10) Instructions (943-174-003 Rev A)
    CK65/CK3 Vehicle Dock (AV10) Instructions (943-174-003 Rev A)
    525.05 KB
    7/14/2021
    CK65/CK3 Quad Charger (AC20) Instructions (943-173-005 Rev B)
    CK65/CK3 Quad Charger (AC20) Instructions (943-173-005 Rev B)
    1.01 MB
    10/1/2024
    CK65 Universal Accessories (CK65-CB,CK65-NB) User Guide (CK65-UV-EN-UG-01 Rev A)
    CK65 Universal Accessories (CK65-CB,CK65-NB) User Guide (CK65-UV-EN-UG-01 Rev A)
    467.86 KB
    7/14/2021
    CK70/CK71 Computer and CK70/CK71/CK3/CK65 Battery Adapter Compliance Insert (933-240-004 Rev A)
    CK70/CK71 Computer and CK70/CK71/CK3/CK65 Battery Adapter Compliance Insert (933-240-004 Rev A)
    695.17 KB
    7/14/2021
    Regulatory Sheet: CK65/CK67 Charge Base/Net Base (CK65-ACC-ML-RS-03 Rev A)
    Regulatory Sheet: CK65/CK67 Charge Base/Net Base (CK65-ACC-ML-RS-03 Rev A)
    1011.56 KB
    10/1/2024
    CK3 Series Vehicle Dock (AV10) Compliance Insert (933-158-006 Rev A)
    CK3 Series Vehicle Dock (AV10) Compliance Insert (933-158-006 Rev A)
    1.71 MB
    7/14/2021
    Compliance Insert: AD20, CK3/CK65 Single Dock (933-155-008 Rev A)
    Compliance Insert: AD20, CK3/CK65 - Single Dock (933-155-008 Rev A)
    1.71 MB
    11/22/2024
    Regulatory Sheet: CK65 (CK65-ML-RS-06 Rev A)
    Regulatory Sheet: CK65 (CK65-ML-RS-06 Rev A)
    2.46 MB
    12/5/2022
    Compliance Insert: AC20, CK3/CK65 Battery Quad Charger (933-157-008 Rev A)
    Compliance Insert: AC20, CK3/CK65 - Battery Quad Charger (933-157-008 Rev A)
    1.68 MB
    11/22/2024
    CK3 Series Multidock (AD21/AD22) Compliance Insert (933-156-008 Rev A)
    CK3 Series Multidock (AD21/AD22) Compliance Insert (933-156-008 Rev A)
    1.86 MB
    7/14/2021
    Battery Pack Information: Model CK65-BTSC/CK65-BTCS (CK65-BTSC-ML-IN-04 Rev A)
    Battery Pack Information: Model CK65-BTSC/CK65-BTCS (CK65-BTSC-ML-IN-04 Rev A)
    479.59 KB
    10/1/2024
    CK3/CK65 Series Computer Adapter Compliance Insert (933-216-003 Rev A)
    CK3/CK65 Series Computer Adapter Compliance Insert (933-216-003 Rev A)
    716.67 KB
    7/14/2021
    Desktop and Charge-Only Dual Base Compliance Insert (933-214-011 Rev A)
    Desktop and Charge-Only Dual Base Compliance Insert (933-214-011 Rev A)
    1.24 MB
    7/14/2021
    AB17/AB18 Battery Information (943-175-009 Rev A)
    AB17/AB18 Battery Information (943-175-009 Rev A)
    438.59 KB
    7/14/2021
    Quad Base Compliance Insert (933-238-011 Rev A)
    Quad Base Compliance Insert (933-238-011 Rev A)
    1.35 MB
    7/14/2021
    Dual Base Compliance Insert (933-215-008 Rev A)
    Dual Base Compliance Insert (933-215-008 Rev A)
    1.33 MB
    7/14/2021
    White Paper: Battery Maintenance for Portable Devices - English
    White Paper: Battery Maintenance for Portable Devices - English
    332.35 KB
    10/1/2024
    Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
    Application Brief: Developer Options on Honeywell Mobile Computers with Android OS (HDO-A-EN-AB-01 Rev A)
    70.58 KB
    10/1/2024
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    213-064-001
    KIT, Protective Rubber Boot for CK65 Computers with 6703 or FlexRange engine (color is orange)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    213-064-001
    KIT, Protective Rubber Boot for CK65 Computers with 6703 or FlexRange engine (color is orange)
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    213-065-001
    KIT, 5 self-adhesive glass screen protectors for CK65. Not compatible with CK3XCK3R, not compatible with Cold Storage version of CK65
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    213-065-001
    KIT, 5 self-adhesive glass screen protectors for CK65. Not compatible with CK3XCK3R, not compatible with Cold Storage version of CK65
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    3011-8248-001
    AC ADAPTER 12V30W,1.35 X 3.5MM,LEVEL VI
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    3011-8248-001
    AC ADAPTER 12V30W,1.35 X 3.5MM,LEVEL VI
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    318-063-001
    BATTERY, Li-Ion, CK65 One (1) extended rechargeable 7000 mAh smart battery pack. Std temp range.
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    318-063-001
    BATTERY, Li-Ion, CK65 One (1) extended rechargeable 7000 mAh smart battery pack. Std temp range.
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    318-063-002
    BATTERY, LI-ION, CK65, COLD STORAGE
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    318-063-002
    BATTERY, LI-ION, CK65, COLD STORAGE
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    318-063-003
    Battery, Li-Ion, CK65 NIATEX
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    318-063-003
    Battery, Li-Ion, CK65 NIATEX
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    500109-0679
    DSPL, 12.1 COLOR, SVGA TFT LVDS
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    500109-0679
    DSPL, 12.1 COLOR, SVGA TFT LVDS
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    715-549-002FRE
    CK65 NI or ATEX IO Cover replacement cap.
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    715-549-002FRE
    CK65 NI or ATEX IO Cover replacement cap.
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    851-064-415
    Univ Pwr Supply,13V,7.7A,Lvl,VI,9006AE02
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    851-064-415
    Univ Pwr Supply,13V,7.7A,Lvl,VI,9006AE02
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    8754-870650-01
    Ck65 Handstrap Kit, 5 pk
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer
    8754-870650-01
    Ck65 Handstrap Kit, 5 pk
    https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-ck65-mobile-computer

    Related Categories

    Let's Connect!

    Sign up to receive exclusive communications from Honeywell including product updates, technical information, new offerings, events and news, surveys, special offers, and related topics via telephone, email, and other forms of electronic communication.

    Subscribe
    Products
    toggle view
    Software
    toggle view
    Services
    toggle view
    Industries
    toggle view
    Support
    toggle view
    Where to Buy
    toggle view
    myAutomation Support
    toggle view
    Company
    toggle view
    Careers
    toggle view
    Contact
    toggle view
    Follow Us
    Scroll to top

    Copyright © 2024 Honeywell International Inc

    Terms & Conditions
    Privacy Statement
    Your Privacy Choicesicon
    Cookie Notice
    Global Unsubscribe
