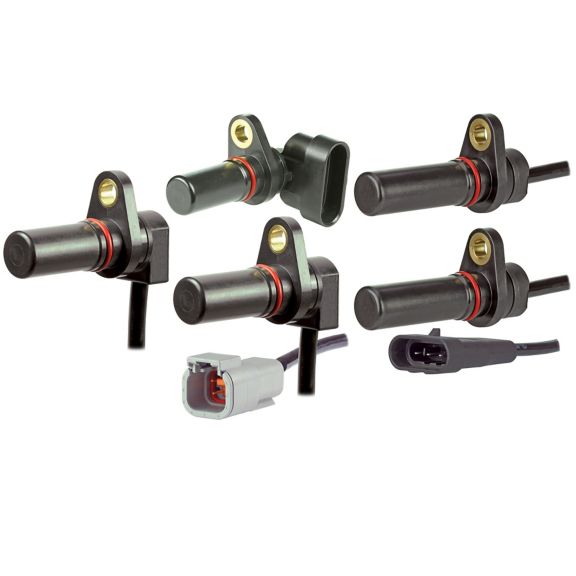

Sensores de velocidad
Serie SNG-Q
Sensor de dirección y velocidad de efecto Hall, con salida en cuadratura. Voltajes de alimentación de 4.5 V a 26 V Frecuencia de operación de 3 Hz a 20 kHz
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Los sensores de velocidad y dirección en cuadratura Serie SNG-Q de Honeywell están diseñados para otorgar información sobre velocidad y dirección. La información sobre velocidad se proporciona de las salidas de ondas cuadradas digitales: la información sobre dirección se proporciona mediante el uso de una salida en cuadratura con señales desplazadas a 90. grados una de la otra. Con la salida en cuadratura, la dirección del objetivo se determina mediante cambio entre la fase inicial/latente de salida.
Valor para los clientes
- Alta confiabilidad: Clasificación.IP69K, protección de inmunidad radiada contra EMC, sello de junta O-ring y amplio rango de temperatura de funcionamiento:
- Mejora el tiempo de actividad de los equipos.
- Minimiza los costos de servicio.
- Brinda resistencia al ruido eléctrico elevado.
- Ofrece resistencia al ingreso de humedad.
- Amplio rango de temperatura de funcionamiento
- Intenta reforzar significativamente el valor de la marca del cliente
- Competitivo en términos de costos: Diseñado y fabricado con una aproximación basada en plataforma que permite competitividad en materia de costos y configurabilidad mecánica y eléctrica para los clientes.
- Precisión mejorada: La tecnología de IC de sensor de efecto Hall diferencial doble permite una capacidad mejorada de detectar características de objetivos pequeños.
- Flexible: El amplio rango de temperatura de funcionamiento, la inmunidad al ruido eléctrico y la capacidad de sellado a prueba de factores ambientales mejorada brindan flexibilidad de uso en la aplicación.
- Acelera la instalación: El sello de junta o-ring para usar en aplicaciones de presión y una brida de montaje fija permiten un proceso de instalación más simple con un sujetador.
