Limitadores de caídas personales
TurboLite+ Scorpion

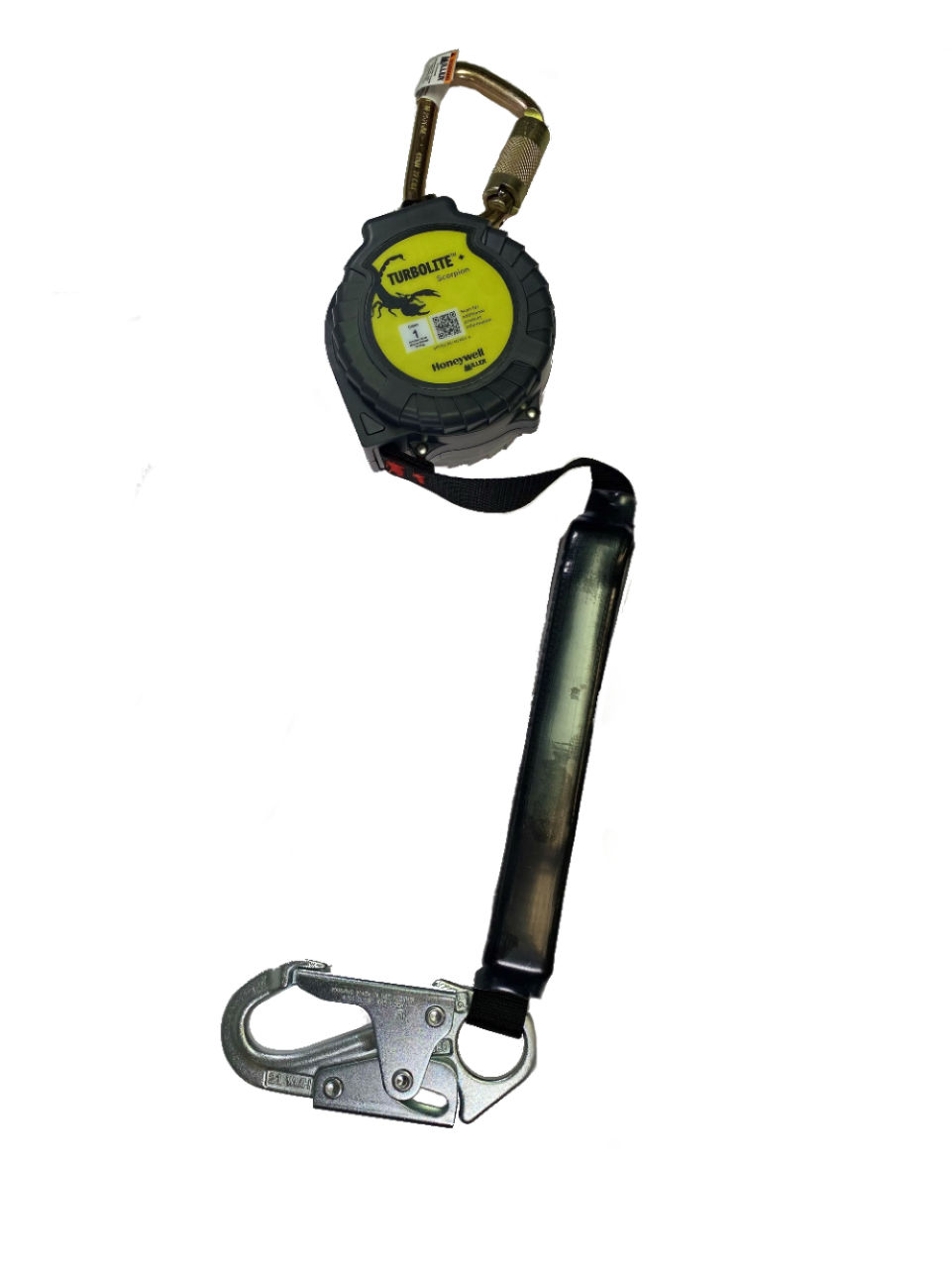

Honeywell Miller TurboLite™+ Scorpion, part of the PLUS family of redesigned self-retracting lifelines, provides protection as per OSHA for up to a 420 lb/190.5 kg worker, it showcasing user-friendly design aligned with Honeywell Miller harnesses.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 7-ft, 8-ft, and 9-ft, Miller TurboLite+ Scorpion Personal Fall Limiter offers greater mobility, safety and versatility when compared to traditional shock-absorbing lanyards.Turbolite+ Scorpion provides the versatility of a personal preference to attach it directly to the harness D-ring for use as a personal fall limiter, or use it as a traditional retractable lifeline on your anchor point.;Features & BenefitsAgriculture, Construction, Forestry & Lumber, General Industry, Government, Manufacturing, Mining, Steel and Metals, Telecom, Transportation and Wind Energy, WarehousingWorking at height, slips, trips and falls, order picking, 4’ and above, personal fall limiter, self-retracting lanyard, self-retracting lifeline, self-retracting devices, mobility, overhead anchorage.
- Meets requirements of OSHA, the new ANSI Z359.14-2021 Class 1 and CSA Z259.2.2-2017 Class SRL
- Quick-activating: high-strength stainless steel braking system – arrests free falls
- 7-ft, 8-ft and 9-ft of working capacity
- New user capacity rated for up to a 420 lbs (190.5 kg) - OSHA
- No annual factory recertification required
- Visual load indicator – indicates the unit must be removed from service
- Variety of integral anchorage connectors available
- Scorpion™ Unit Connector Options: Without connector, Steel twist-lock carabiner, Stainless steel swivel shackle, Carabiner and swivel shackle, D-ring swivel hook, Rebar hook and swivel shackle, Locking snap hook and swivel shackle, Captive eye carabiner
- Turbolite+ Scorpion Lanyard End Connector Options: Locking snap hook, Locking rebar hook, Locking rebar swivel hook, Locking swivel snap hook
Ficha técnica
Nombre
Descripción
Tamaño del archivo
Fecha
Tamaño
TurboLite+ Scorpion PFL Technical Data Sheet
application/pdf 569.44 KB
2/19/2025
569.44 KB
TurboLite+ Scorpion PFL Technical Data Sheet
application/pdf 569.59 KB
2/19/2025
569.59 KB
Manuales y Guía
Nombre
Descripción
Tamaño del archivo
Fecha
Tamaño
Manual de Usuário do TurboLite
application/pdf 6.99 MB
11/18/2024
6.99 MB
Hoja de ventas
Nombre
Descripción
Tamaño del archivo
Fecha
Tamaño
Folha de vendas do TurboLite+ Scorpion
application/pdf 307.44 KB
11/18/2024
307.44 KB
Folha de vendas do TurboLite+ Scorpion
application/pdf 269.88 KB
11/18/2024
269.88 KB
TurboLite+ Scorpion Sales Sheet
application/pdf 328.56 KB
6/13/2024
328.56 KB
TurboLite+ Scorpion Sales Sheet
application/pdf 328.56 KB
6/13/2024
328.56 KB
Nombre
Descripción
Tamaño del archivo
Fecha
Tamaño
Folha de vendas do TurboLite+ Scorpion
application/pdf 307.44 KB
11/18/2024
307.44 KB
TurboLite+ Scorpion PFL Technical Data Sheet
application/pdf 569.44 KB
2/19/2025
569.44 KB
TurboLite+ Scorpion PFL Technical Data Sheet
application/pdf 569.59 KB
2/19/2025
569.59 KB
Manual de Usuário do TurboLite
application/pdf 6.99 MB
11/18/2024
6.99 MB
Folha de vendas do TurboLite+ Scorpion
application/pdf 269.88 KB
11/18/2024
269.88 KB
TurboLite+ Scorpion Sales Sheet
application/pdf 328.56 KB
6/13/2024
328.56 KB
TurboLite+ Scorpion Sales Sheet
application/pdf 328.56 KB
6/13/2024
328.56 KB
Nombre
Descripción
Tamaño del archivo
Fecha
Tamaño
TurboLite+ Scorpion PFL Technical Data Sheet
569.44 KB
2/19/2025
TurboLite+ Scorpion PFL Technical Data Sheet
569.59 KB
2/19/2025
Inicie sesión para ver los números de piezas disponibles para su compra según su cuenta. Inicie sesión
Filters
Product Number
Inicie sesión para ver los números de piezas disponibles para su compra según su cuenta. Inicie sesión
Part Number
Description
Leaf Category
Thumbnail
Add to list
MTL-OHS1-01/8FT
MTL-OHS1-01/8FT
MTL-OHS1-01/9FT
MTL-OHS1-01/9FT
MTL-OHS1-02/9FT
MTL-OHS1-02/9FT
MTL-OHS1-03/9FT
MTL-OHS1-03/9FT
MTL-OHS1-05/8FT
MTL-OHS1-05/8FT
MTL-OHS1-05/9FT
MTL-OHS1-05/9FT
MTL-OHS1-07/9FT
MTL-OHS1-07/9FT
MTL-OHS1-09/9FT
MTL-OHS1-09/9FT
MTL-OHS1-11/9FT
MTL-OHS1-11/9FT
MTL-OHS1-14/9FT
MTL-OHS1-14/9FT
