Transductores de torsión

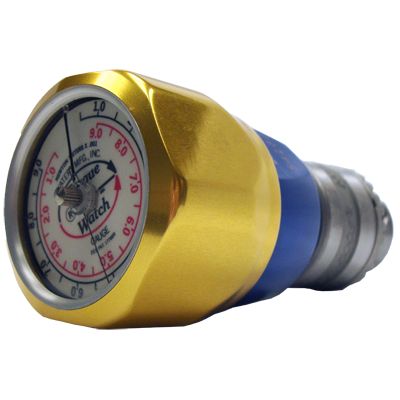

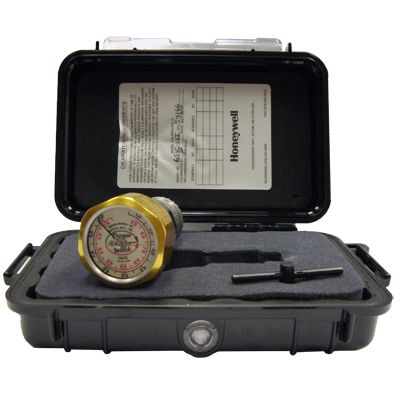

Modelo 651
Indicadores de torque de reacción de rango medio. Rango de 2.8 gm-cm a 600 gm-cm. Salida nominal de ±2%
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
El indicador de torque de rango medio Serie 651 proporciona una medición precisa del torque estático bajo. Una llave mandril de 1/4 in brinda medios simples de acoplamiento al dispositivo que se está midiendo. La Serie 651 utiliza un resorte calibrado, un eje y un puntero de ensamblaje dentro de una carcasa de aluminio y acero resistente. La unidad puede medir el torque en sentido horario y antihorario. Los topes internos de rotación de acero inoxidable pueden prevenir daños ocasionados por el torque hasta dos veces el rango normal.
Funcionalidades
- Capacidades de 2.5 gm-cm a 2.8 k gm-cm [0.05 in-oz a 40 in-oz] [0.5 N-mm a 265 N-mm]
- Precisión del 2%
- Llave mandril estándar de 1/4 in
- Indicador del dial
- Protección contra la sobrecarga
