Transductores de torsión
Modelo 366
Indicadores de torque de reacción de rango bajo. Rango de 0.2 g-cm a 42 g-cm. Salida nominal de ±5%, ±10%
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

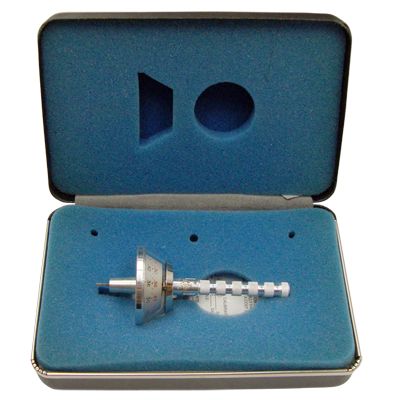

El indicador de torque de rango bajo Serie 366 mide torques muy bajos. Tres mandriles adaptadores miniatura simplifican el acoplamiento al dispositivo que se está midiendo. Para reducir la fricción, se monta un ensamblaje de resorte calibrado, eje y puntero en los rodamientos. La unidad puede medir el torque en sentido horario y antihorario. El tope interno de rotación de acero inoxidable ayuda a prevenir daños ocasionados por el torque hasta tres veces el rango normal.
Funcionalidades
- Capacidades de 0.2 gm-cm a 42 gm-cm [0.003 oz-in a 0.6 oz-in]
- Precisión del 5% (366-0) y 10% (366-2, 366-3)
- Tres mandriles adaptadores miniatura disponibles
- Indicador del dial (estándar)
- Protección contra la sobrecarga
