SS41, -L, -T2, -T3, -S, -SP, SS51T
Sensor de efecto Hall CI (Circuito integrado) digital, bipolar. Variedad de estilos de paquetes. Salida de sumidero digital
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Estos dispositivos de efecto Hall digital, versátiles y pequeños son operados por el campo magnético de un magneto permanente o un electroimán, están diseñados para responder a la alternancia de los polos norte y sur. El regulador integrado ofrece mayor estabilidad de funcionamiento en un rango de voltaje de alimentación de 4,5 V CC a 24 V CC y el circuito interno está diseñado para evitar que se dañe el sensor en caso de que se invierta accidentalmente la polaridad del voltaje de alimentación.
La salida de voltaje del sumidero de colector abierto se adapta fácilmente a una amplia variedad de circuitos electrónicos. SS41 se ha probado a 25 °C [77 °F] y 125 °C [257 °F].
Con el fin de ofrecer flexibilidad en el diseño, estos productos están disponibles en los siguientes estilos de paquete TO-92 plano:
- SS41: Conductores rectos estándar, envase a granel

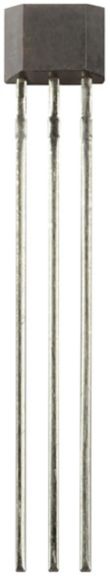

- SS41-L: Conductores rectos largos, envase a granel

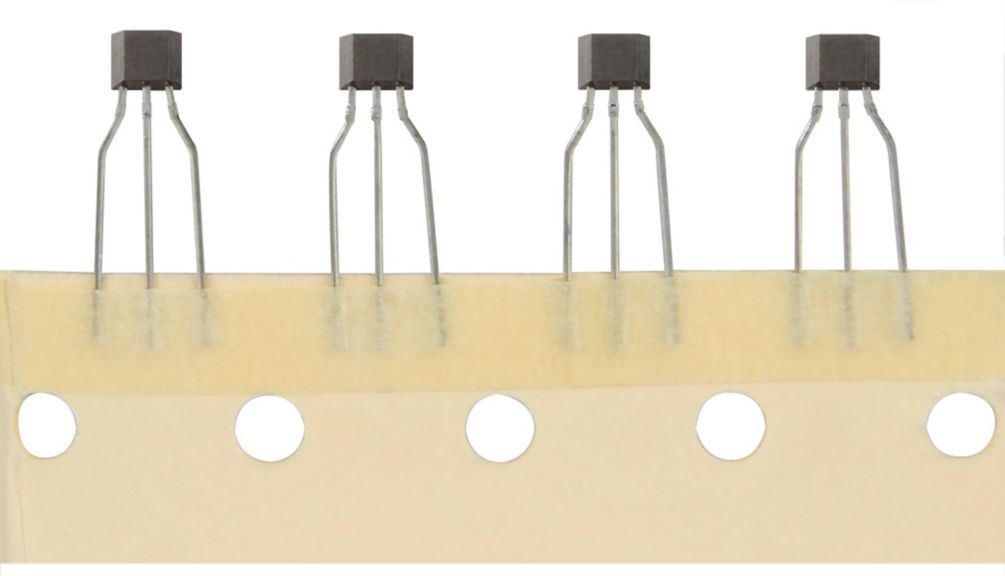

- SS41-T2: Conductores moldeados, paquete tipo municiones cerrado con cinta

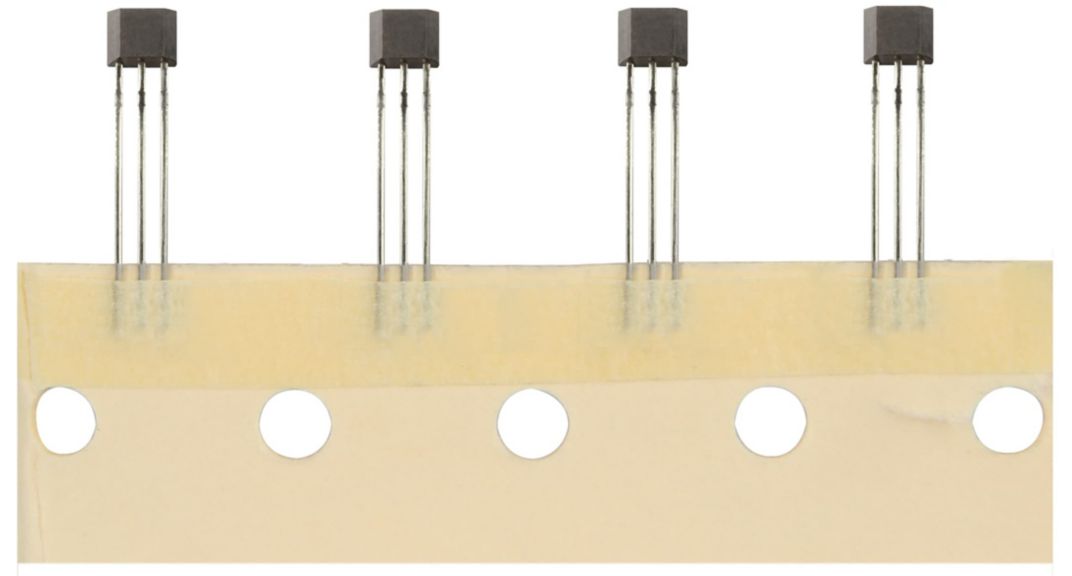

- SS41-T3: Conductores rectos estándar, paquete tipo municiones cerrado con cinta

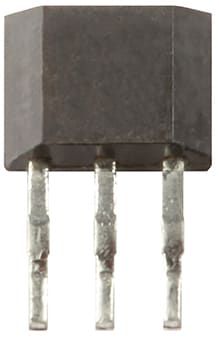

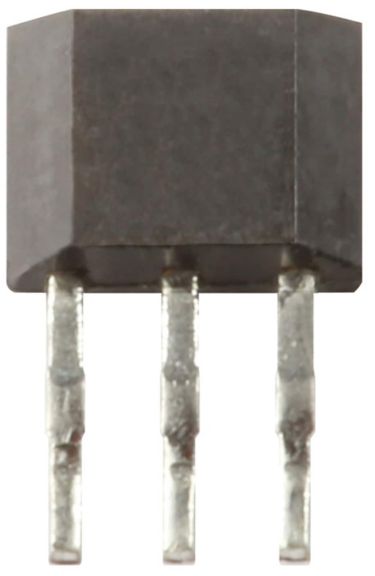

- SS41-S: Montaje en superficie, envase a granel

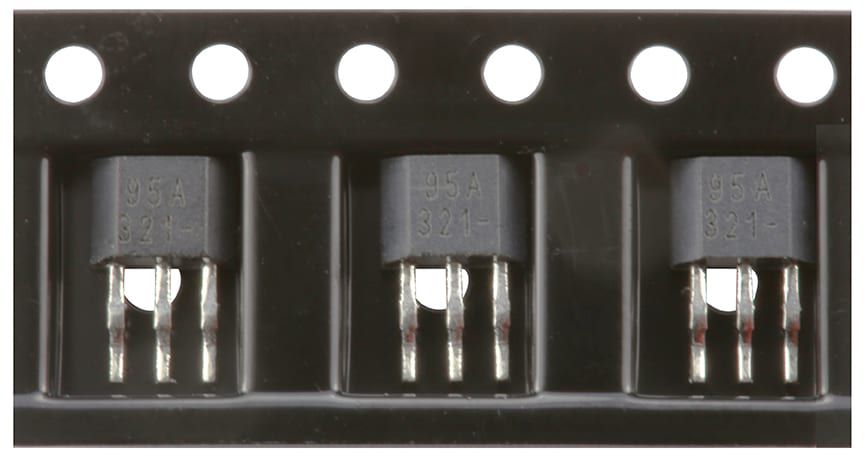

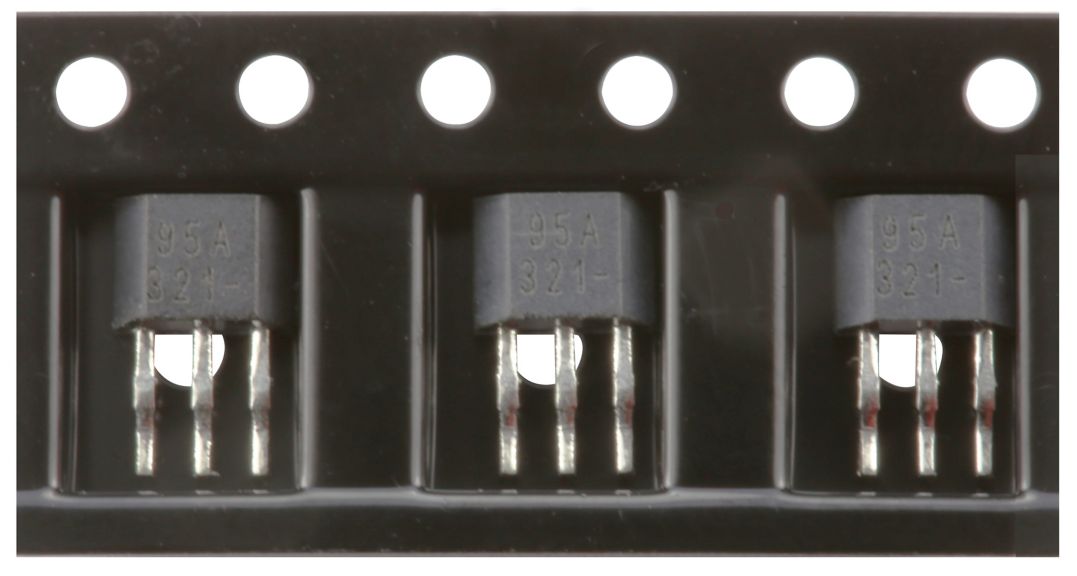

- SS41-SP: Montaje en superficie, cinta y carrete
