Cellules de charge

Model 3397 Series

Tension/compression low profile load cells. 25 lb, 50 lb, 100 lb, 200 lb, & 300 lb capacities. ±0.07% full-scale accuracy

Aperçu
Model 3397 Series

Honeywell's cost-effective, general purpose, carbon steel, pancake load cells offer a compact design that features exceptional structural capability to withstand extraneous loads, such as torque, bending movements and side loads combined with a high degree of accuracy for general purpose applications.

Designed to measure tension/compression, these load cells have enhanced accuracies up to 0.07 % and have measurement ranges from 5 lb up to 100,000 lb. Fatigue-resistant and fatigue-rated models for use with applications with extremely high cycle counts are available. Need special modifications or a custom design? Call us to discuss your requirements.

Features
  • Up to 0.05 % accuracy
  • 25 lb to 300 lb range
  • Low sensitivity to extraneous loads
  • Low deflection
  • Built-in temperature compensation
Data Sheet
Name
Description
File Size
Date
Size
Test & Measurement Load Accessories Datasheet
application/pdf 519.98 KB
7/17/2021
519.98 KB
Model 3397 Pancake Load Cell Datasheet
application/pdf 237.54 KB
7/17/2021
237.54 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Load Cell Range Guide
application/pdf 1.25 MB
7/17/2021
1.25 MB
Technical Note
Name
Description
File Size
Date
Size
Model 3397 External Wiring Diagram
application/pdf 163.05 KB
7/17/2021
163.05 KB
Model 3397 Outline Drawing
application/pdf 42.25 KB
7/17/2021
42.25 KB
eBook
Name
Description
File Size
Date
Size
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
Others
Name
Description
File Size
Date
Size

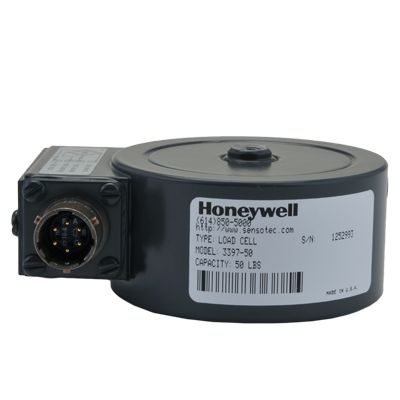

Model 3397 Front View
image/png 93.67 KB
7/17/2021
93.67 KB

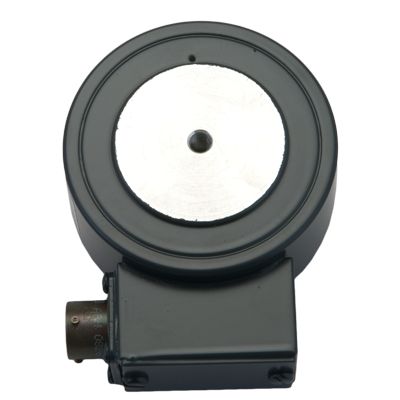

Model 3397 Bottom View
