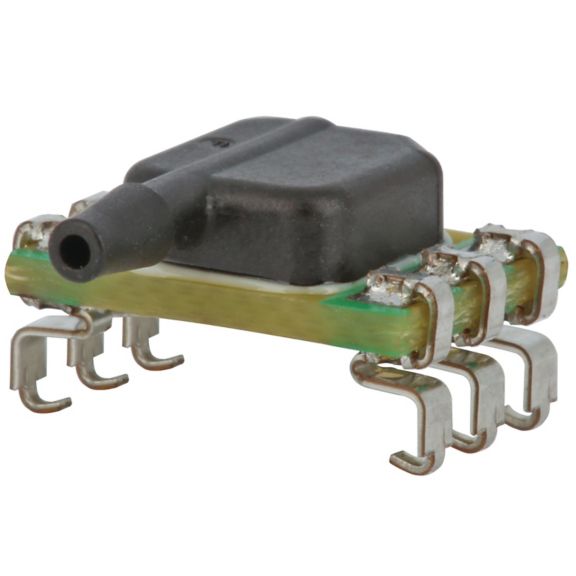

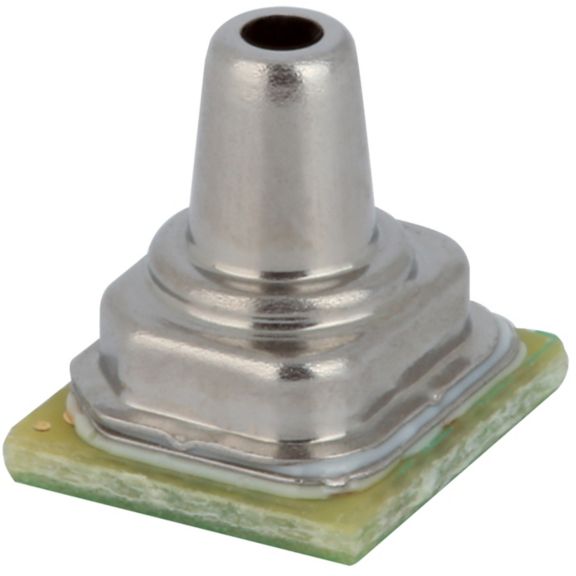

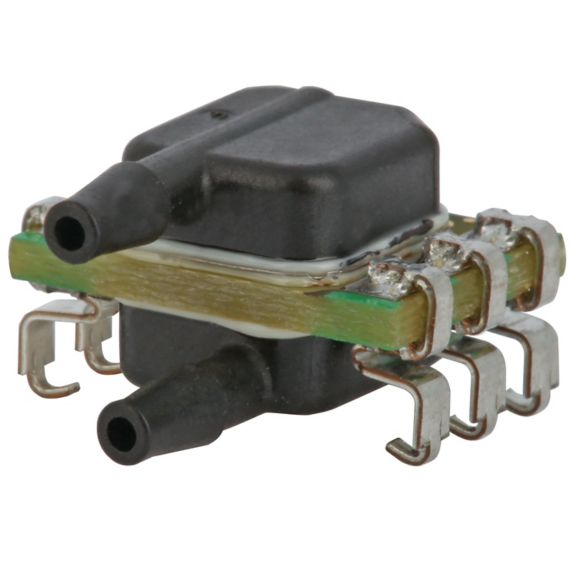

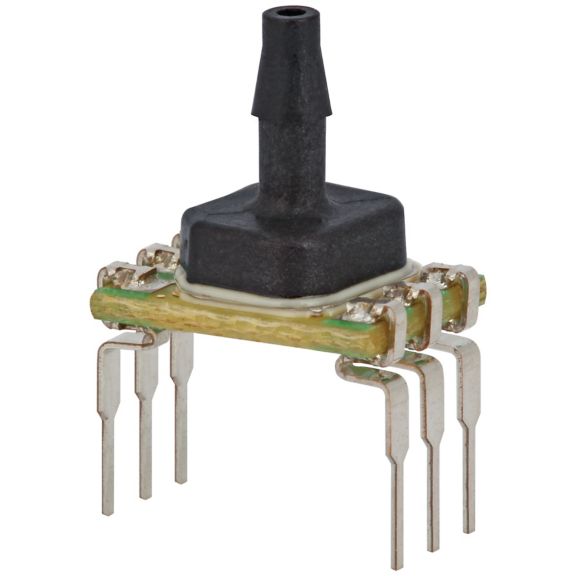

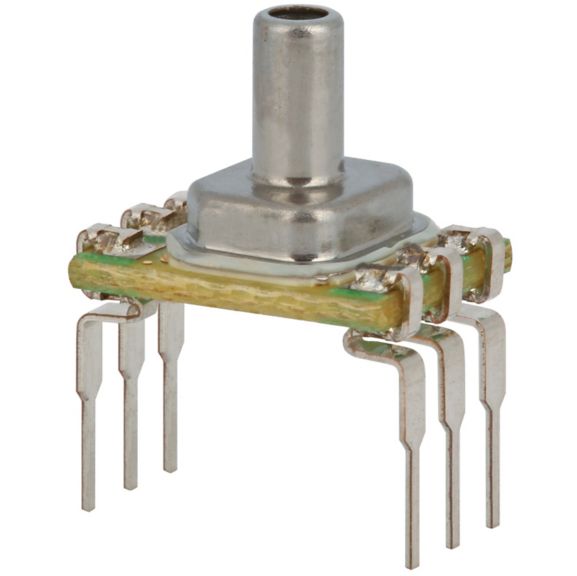

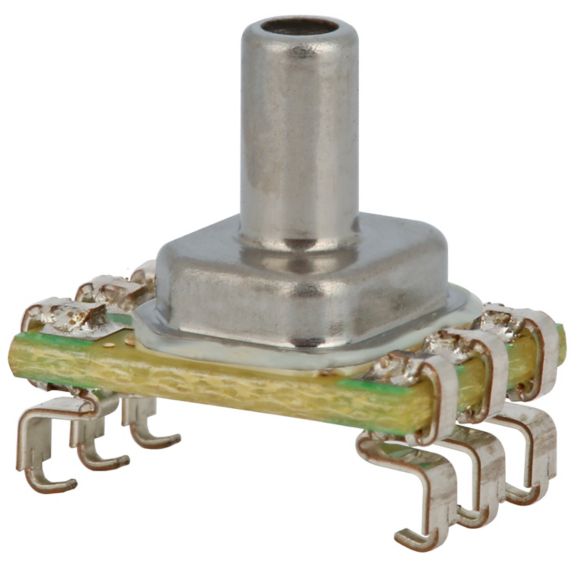

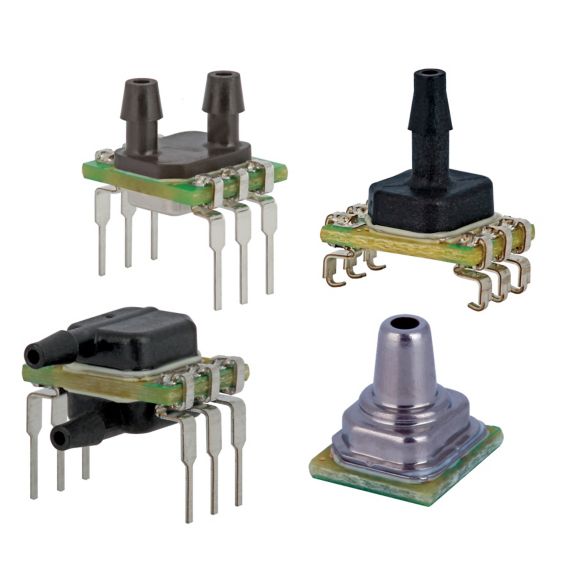

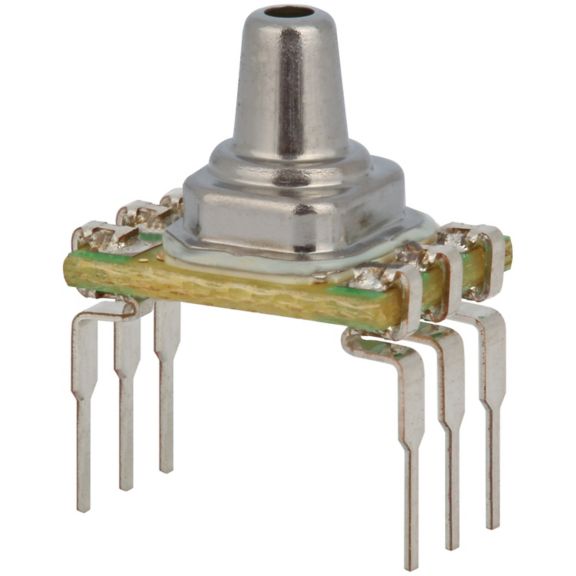

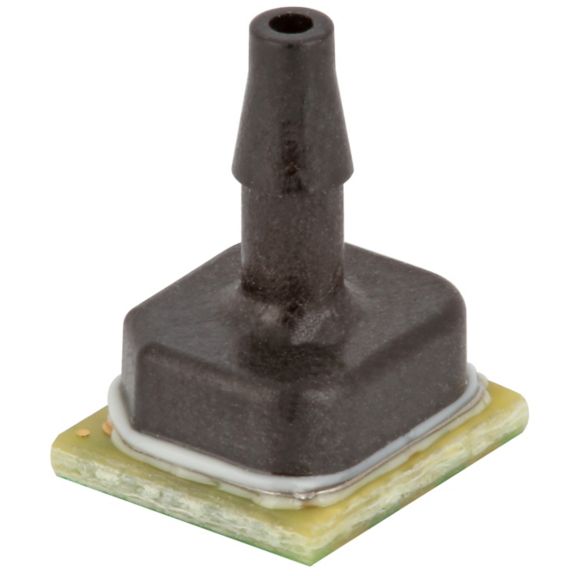

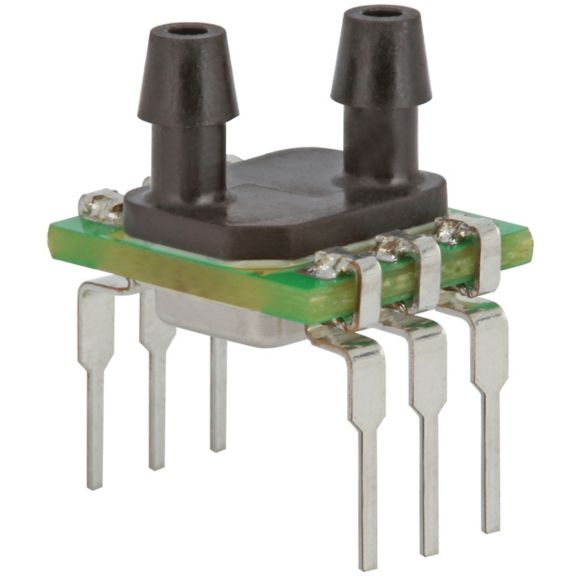

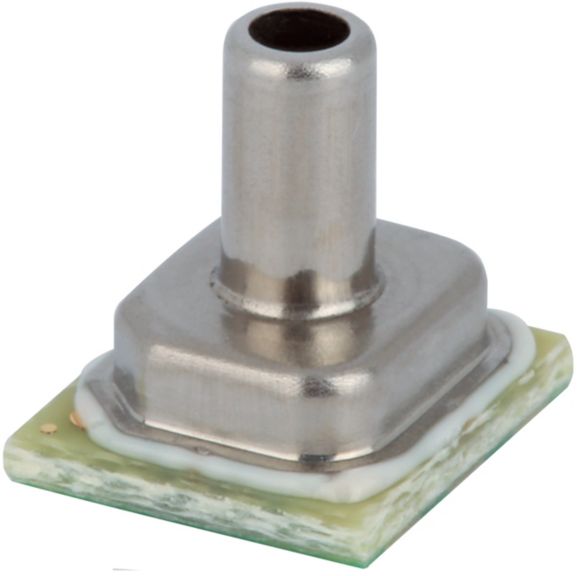

ABP3 Series Board Mount Pressure Sensor
ABP3 Series, Amplified Board Mount Pressure Sensor, 2.5 mbar to 12 bar, TEB ±1.5% to ±4.5%, Temperature Compensated -20°C to 110°C, Liquid media capable with Analogue or Digital (I2C/SPI) output.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Panoramica
Distributor Inventory
ABP3 Series board mount pressure sensor exceptional performance, configurability, reliability and value. ABP3 supports an extended pressure range from 1.25mbar to 12bar and an extended operating temperature range from -40°C to 110°C. ABP3 sensors are wet-on-wet compatible and are offered with different liquid gel protection options to provide extensive media compatibility.
ABP3 supports a wider range of applications than any other board mount pressure series in the market today. ABP3 sensors are dynamically calibrated for sensor offset, sensitivity, temperature effects, over an extended temperature range from --40°C to 110°C [-40°F to 230°F] and are intended for use within both medical, industrial and transportation applications. ABP3 sensors are fully compatible non-corrosive, non-ionic gas and liquids for pressure ranges above 40 mbar [4 kPa, 20 inH2O], and non-corrosive, non-ionic gases, such as air and other dry gases below 40 mbar [4 kPa, 20 inH2O].
These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between the two pressure ports. All products are designed and manufactured according to standards in ISO 9001
FEATURES
• Total Error Band: As low as 1.5 %FSS
• Wide pressure range: 1.25 mbar to 20 bar
• Ultra-fast sample rate: Up to 4 KHz
• Effective resolution: Up to 14 bits
• Advanced diagnostics
• Analog & digital (I²C/SPI) outputs
• Drop-in replacement for ABP/ABP2 sensors
• Food-grade certification
• Ten-year sensor life
• Resistant to common contaminants
ABP3 Series board mount pressure sensor exceptional performance, configurability, reliability and value. ABP3 supports an extended pressure range from 1.25mbar to 12bar and an extended operating temperature range from -40°C to 110°C. ABP3 sensors are wet-on-wet compatible and are offered with different liquid gel protection options to provide extensive media compatibility.
ABP3 supports a wider range of applications than any other board mount pressure series in the market today. ABP3 sensors are dynamically calibrated for sensor offset, sensitivity, temperature effects, over an extended temperature range from --40°C to 110°C [-40°F to 230°F] and are intended for use within both medical, industrial and transportation applications. ABP3 sensors are fully compatible non-corrosive, non-ionic gas and liquids for pressure ranges above 40 mbar [4 kPa, 20 inH2O], and non-corrosive, non-ionic gases, such as air and other dry gases below 40 mbar [4 kPa, 20 inH2O].
These sensors measure absolute, gage, or differential pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Differential versions allow measurement of pressure between the two pressure ports. All products are designed and manufactured according to standards in ISO 9001
FEATURES
• Total Error Band: As low as 1.5 %FSS
• Wide pressure range: 1.25 mbar to 20 bar
• Ultra-fast sample rate: Up to 4 KHz
• Effective resolution: Up to 14 bits
• Advanced diagnostics
• Analog & digital (I²C/SPI) outputs
• Drop-in replacement for ABP/ABP2 sensors
• Food-grade certification
• Ten-year sensor life
• Resistant to common contaminants
