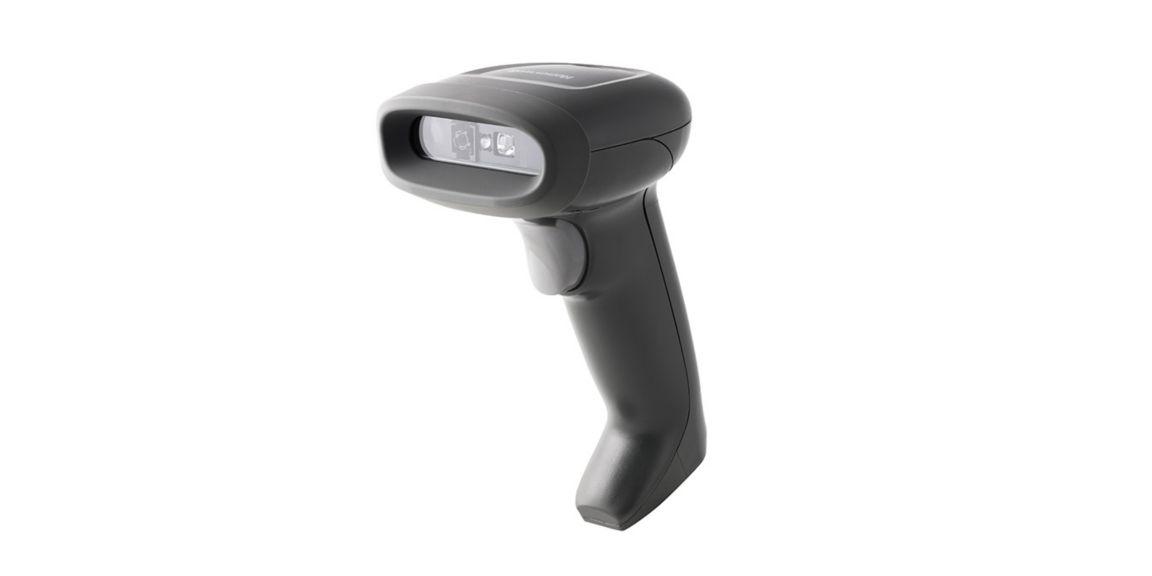

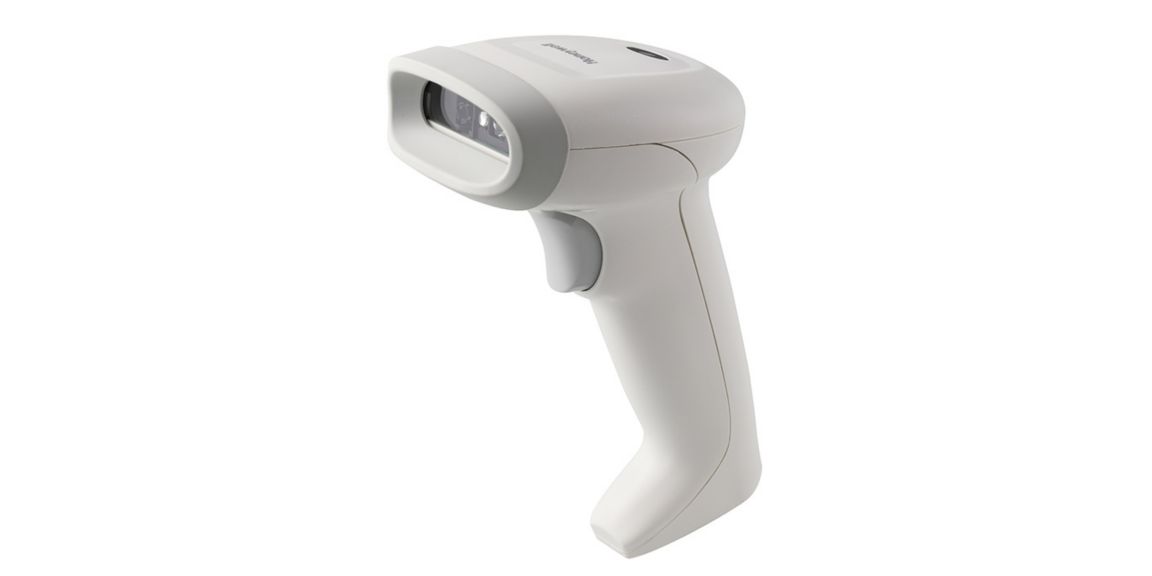

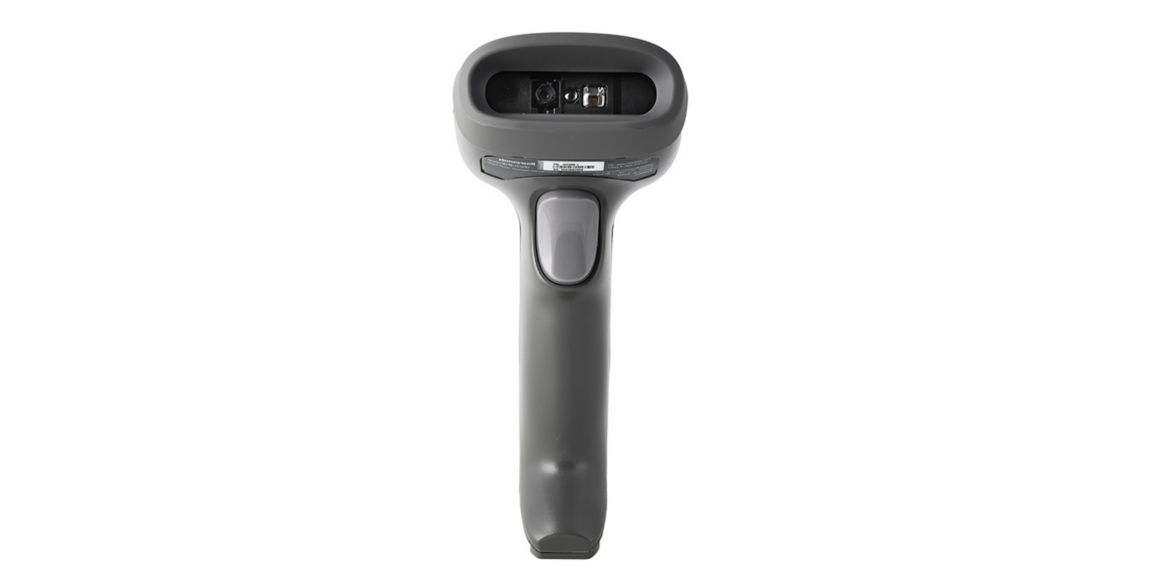

HH490 Handheld 2D Area-Imaging Scanner
HH490 is designed for commercial environments requiring high speed 1D/2D scanning operations. The imager is able to read bar codes rapidly and continuously, even when reading damaged, partially obscured, or poorly printed bar codes.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Panoramica
The HH490 is a new generation of handheld 2D area-imaging scanner, designed to fulfill a wide variety of customers’ scanning needs in various applications and scenarios. Examples include membership identification, payment at shopping malls and supermarkets, hotel registration, applications at hospitals and schools, or any place where data needs to be read and identified quickly. HH490 offers excellent 1D and 2D barcode scanning performance at an affordable price. It provides fast scanning for a variety of scanning needs, helps customers quickly obtain data, simplifies operational procedures, and greatly improves the management efficiency of your business. Put simply, the HH490 makes scanning easier and faster! To handle today’s commercial deployment challenges and large-scale infrastructures, the HH490 is equipped with Honeywell’s advanced EZ Config and POS drivers, which greatly simplify the configuration process and saves time. HH490 is fully backward-compatible with existing HH400 accessories, it helps original customers greatly reduce cost and protect original investment.
Specifiche
Funzioni
- Features
- Honeywell Operational Intelligence
Dimensioni
- Overall Dimensions
- 72.5mm×125mm×154mm (2.85 in *4.92 in *6.06 in)
Scanning Specifications
- Scanning Range
- 35mm-430mm(13mil UPC-A)
- Scan Pattern
- Array
- Motion Tolerance
- 75 cm/s
- Depth of Field
- 35mm-430mm(13mil UPC-A)
- Decode Capability
- 1D/2D
- Brightness
- 0 - 100000 lux
Hardware
- Aimer Type
- Area Image
- Wireless
- Corded
- Host System Interface
- USB, RS-232
- Engine Type
- 2D
Electrical
- Smart Battery
- N/A
Environmental
- Storage Temperature Range
- -40°C to 60°C (-40°F to 140°F)
- Operating Humidity
- 0% to 95% relative humidity
Standards & Approvals
- Tumble Specifications
- 250, 0.5 m (1.6 ft tumbles)
- Protection Ratings
- IP40
- Drop Specifications
- 1.2m
Altro
- Form Factor
- Gun shape
- For Use With
- EZ Config Tool
- Application
- Point of Sale, Retail
- Operating Power
- 2 W
- Input Voltage
- 4 - 5.5 V DC
- Operating Temperature
- 0 - 50 °C32 - 122 °F
- Warranty Duration
- 3 years
- Scan Distance
- Standard Range (0-1m)
- Power Connector Type
- usb
- IP Rating
- IP40
- Connectivity
- Corded
Funzioni
- Features
- Honeywell Operational Intelligence
Dimensioni
- Overall Dimensions
- 72.5mm×125mm×154mm (2.85 in *4.92 in *6.06 in)
Scanning Specifications
- Scanning Range
- 35mm-430mm(13mil UPC-A)
- Scan Pattern
- Array
- Motion Tolerance
- 75 cm/s
- Depth of Field
- 35mm-430mm(13mil UPC-A)
- Decode Capability
- 1D/2D
- Brightness
- 0 - 100000 lux
Hardware
- Aimer Type
- Area Image
- Wireless
- Corded
- Host System Interface
- USB, RS-232
- Engine Type
- 2D
Electrical
- Smart Battery
- N/A
Environmental
- Storage Temperature Range
- -40°C to 60°C (-40°F to 140°F)
- Operating Humidity
- 0% to 95% relative humidity
Standards & Approvals
- Tumble Specifications
- 250, 0.5 m (1.6 ft tumbles)
- Protection Ratings
- IP40
- Drop Specifications
- 1.2m
Altro
- Form Factor
- Gun shape
- For Use With
- EZ Config Tool
- Application
- Point of Sale, Retail
- Operating Power
- 2 W
- Input Voltage
- 4 - 5.5 V DC
- Operating Temperature
- 0 - 50 °C32 - 122 °F
- Warranty Duration
- 3 years
- Scan Distance
- Standard Range (0-1m)
- Power Connector Type
- usb
- IP Rating
- IP40
- Connectivity
- Corded
- Form Factor : Gun shape
- For Use With : EZ Config Tool
- Features : Honeywell Operational Intelligence
- Application : Point of Sale, Retail
- Overall Dimensions : 72.5mm×125mm×154mm (2.85 in *4.92 in *6.06 in)
- Scanning Range : 35mm-430mm(13mil UPC-A)
- Scan Pattern : Array
- Motion Tolerance : 75 cm/s
- Depth of Field : 35mm-430mm(13mil UPC-A)
- Decode Capability : 1D/2D
- Brightness : 0 - 100000 lux
- Aimer Type : Area Image
- Wireless : Corded
- Host System Interface : USB, RS-232
- Engine Type : 2D
- Smart Battery : N/A
- Operating Power : 2 W
- Input Voltage : 4 - 5.5 V DC
- Storage Temperature Range : -40°C to 60°C (-40°F to 140°F)
- Operating Temperature : 0 - 50 °C32 - 122 °F
- Operating Humidity : 0% to 95% relative humidity
- Tumble Specifications : 250, 0.5 m (1.6 ft tumbles)
- Protection Ratings : IP40
- Drop Specifications : 1.2m
- Warranty Duration : 3 years
- Scan Distance : Standard Range (0-1m)
- Power Connector Type : usb
- IP Rating : IP40
- Connectivity : Corded
