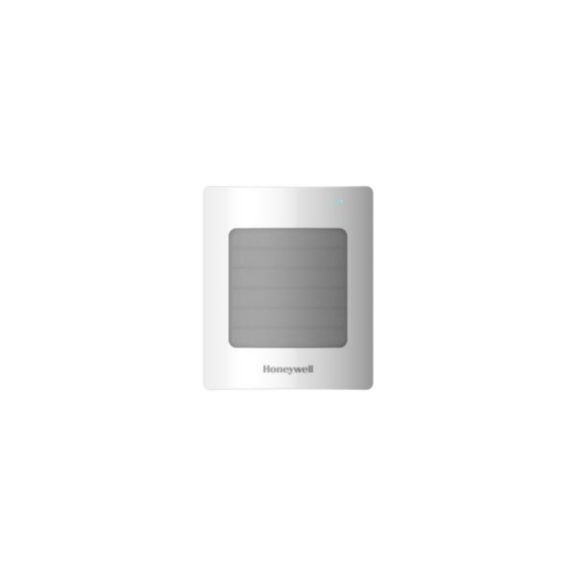

Front cover for Systevo Electronic Module IP (6 chambers, white)
Front cover in white color, for Systevo Electronic Module IP (SEM-IP) and other corridor elements with 6 chambers.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Part Number:72595L2
Front cover in white color, associated to the Systevo Electronic Module IP (SEM-IP) and other corridor elements with 6 chambers. Easy to mount by fixing on the associated 6 chambers device.
With integrated 6 lamp fields using high-efficiency multicolor RGB-LED, and a translucent illuminated area for 6 lamp segments.
Special material properties:
Technical Data:
Front cover in white color, associated to the Systevo Electronic Module IP (SEM-IP) and other corridor elements with 6 chambers. Easy to mount by fixing on the associated 6 chambers device.
With integrated 6 lamp fields using high-efficiency multicolor RGB-LED, and a translucent illuminated area for 6 lamp segments.
Special material properties:
- High quality plastic compound with antimicrobial surface for reduction of microorganisms and to inhibiting the growth of germs.
- Good mechanical properties with high resistance to the daily stress (operation, cleaning, disinfection, shocks etc.).
- Suitable for use in care facilities with high requirements for hygiene, stability, longevity and durability.
- Plastic compound (PC + ABS-FR)
- UV-resistant, halogen free
- Antimicrobial surface, matt finish
- Impact and heat resistance
- Strength, longevity, durability
- Flame protection (fire prot class V0)
Technical Data:
- Operating voltage: powered by associated SEM-IP
- Ambient temperature: 5 °C ... +40 °C
- Storage temperature: -20 °C ... 70 °C
- Humidity: 93 %, 96 hours duration (non condensing)
- Protection class: IP20, when completely installed with associated SEM-IP
- Weight: approx. 180g
- Material: plastic PC+ABS-FR3010
- Color: white (similar to RAL 9003)
- Mounting: snap-on to SEM-IP
- Dimensions H x W x D: 115 x 138 x 33 mm
