Systevo Info-Display IP

Part Number: 74659A1

IP technology based information display, as a central point of information for nurse call systems, helping to streamline alerts displaying for shorter response times.

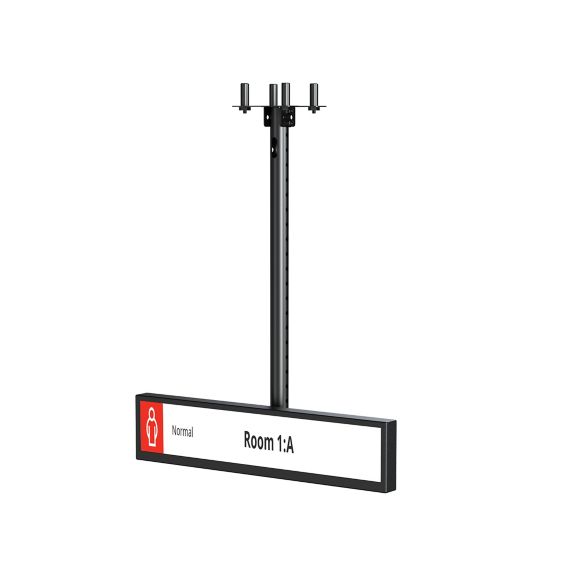

It's prepared for wall or ceiling-mounting and integrates a high-efficiency 24" wide color LCD display to provide a perfect visualization ratio, allowing system messages to be read and identified even from a long distance. Built-in speaker is also used for acoustic call forwarding to catch caregivers attention when required.

• Display of system messages with room and bed identification in plain text, as well as pictogram for call type (e.g. WC, doctor, fault).
• Priority-controlled display, with automatic scrolling function with several messages of the same priority. Optimum display of the time in digital format (e.g. 13:40) when iddle.
• Secured data communication, where messages are transmitted from the overriding Systevo Control in fractions of a second and pending alarms are processed, displayed and notified in time.

Systevo Info-Display IP supports both Ethernet and Wi-Fi connectivity.

Features

• 1920 x 360 Resolution screen with 300 nits brightness
• 2 x 2W Built-In Speaker
• RKPX30 Quad Core processor
• Standard IP, web based and Android SoC technologies
• Industrial grade components for 24/7 continuous operation
• Full metal sheet slim design
• External 12V / 3A power pack for the power supply (included)
• LAN & Wi-Fi Network connection

Functional scope:

• Display with room and bed identification in plain text
• Display of the call type
• Display of the time configurable (e.g. if no messages are pending)
• Acoustic call forwarding (configurable)

Sequence of the displays:

• The highest-priority messages (in the sequence of alarm call " emergency call " normal call) are displayed
• If several messages are pending with the same priority, these are signalised on a scrolling basis

Scope of delivery

Accessories

74659Z1 Wall mounting adapter
74659Z3 Ceiling ounting kit (700 mm)
